A Comparative Look At The Safety Features Across Our Mill Range

A Comparative Look At The Safety Features Across Our Mill Range

In the demanding field of industrial powder processing, operational efficiency and product quality are paramount. However, the foundation of any successful grinding operation lies in its commitment to safety. At Shanghai Zenith Machinery Co., Ltd., we have made great achievements in the field of ultra-fine powder grinding by not only advancing the technological frontiers of our equipment but also by embedding comprehensive safety features into the very design of our mill range. This article provides a comparative analysis of the safety philosophies and integrated features across our diverse product line, demonstrating how we protect both your personnel and your investment.

The Zenith Safety Philosophy: Proactive, Integrated, and Intelligent

Our approach to safety is not an afterthought; it is a core design principle. We recognize that grinding mills operate under high-stress conditions, dealing with abrasive materials, significant mechanical forces, and often high temperatures. Our safety philosophy is built on three pillars:

1. Proactive Prevention: Designing out hazards before they can occur.
2. Integrated Protection: Embedding safety systems seamlessly into the machine’s operation.
3. Intelligent Monitoring: Utilizing advanced controls to predict and prevent unsafe conditions.

This philosophy is realized differently across our mill types, from the robust simplicity of the Ball Mill to the high-tech integration of the LUM Ultrafine Vertical Mill.

Mechanical and Structural Safety

The first line of defense in any grinding mill is its structural integrity and mechanical design.

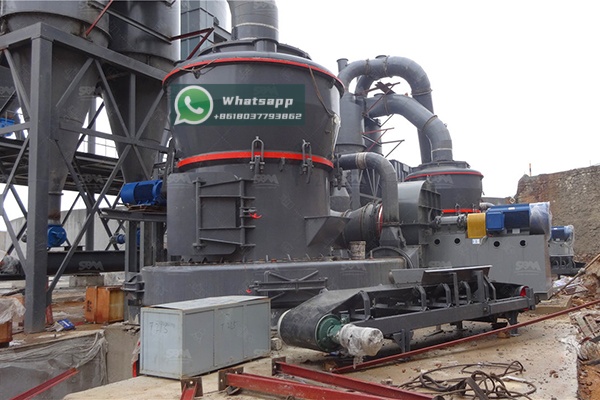

Our Ball Mills and Hammer Mills feature heavily reinforced shells and housings designed to withstand the immense cyclical loads and potential impact forces. Access doors are secured with multiple, heavy-duty fasteners and interlock systems that prevent the mill from operating while open. For larger vertical mills like the LM Vertical Grinding Mill series, the entire structure is engineered for stability, with reinforced foundations and vibration-dampening technologies that prevent structural fatigue and potential failure.

Gear and drive systems are fully enclosed to prevent contact with moving parts. For instance, the MTW Trapezium Grinding Mill utilizes an integral gearbox with oil seals and leak detection, eliminating the risks associated with exposed drive belts or chains.

Overload and Over-temperature Protection

Excessive load or temperature is a primary cause of equipment failure and a significant fire hazard. Across our range, we implement sophisticated monitoring systems.

• Current Monitoring: All our mills are equipped with motor current sensors. In the event of a blockage or overload, the control system will automatically reduce feed or shut down the mill to prevent motor burnout and mechanical damage. This is a standard feature on models from the Raymond Mill (YGM series) to the high-capacity LM280K Vertical Mill.
• Bearing Temperature Monitoring: Critical bearings are fitted with RTD (Resistance Temperature Detector) sensors. On our LUM Ultrafine Vertical Mill, this data is fed into the intelligent control system, which can trigger alarms or initiate a cooldown cycle long before a catastrophic bearing failure occurs.
• Gearbox Temperature and Pressure Monitoring: For mills with large integral gearboxes, we monitor both oil temperature and pressure, ensuring proper lubrication and cooling under all operating conditions.

Explosion Prevention and Dust Containment

In powder processing, the risk of dust explosion is a critical safety concern. Our mills are designed to minimize this risk through several key features:

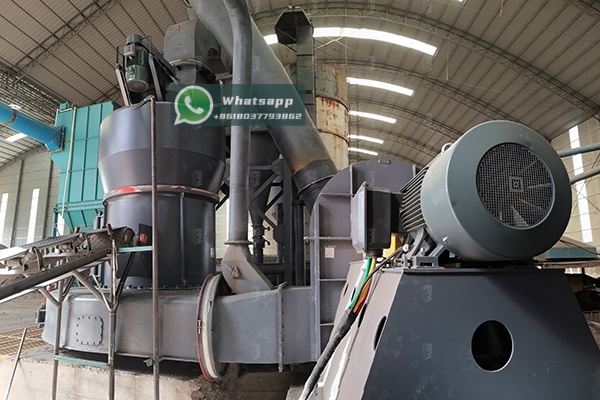

All our milling systems, particularly the XZM Ultrafine Grinding Mill and LUM Vertical Mill, are designed to operate under negative pressure. This prevents the escape of fine dust into the plant environment. Furthermore, they can be equipped with explosion venting panels or suppression systems that activate within milliseconds of detecting a pressure spike, safely diverting any explosive force.

We highly recommend our LUM Ultrafine Vertical Mill for applications involving highly explosive materials. Its fully sealed grinding chamber and integrated classifying system drastically reduce the volume of dust in suspension, while its intelligent control system can be linked to inert gas (e.g., Nitrogen) blanketing systems for the ultimate in explosion prevention.

Operational Safety and Ease of Maintenance

A significant number of accidents occur during maintenance. Our designs prioritize ease and safety of access.

The MTW Trapezium Grinding Mill features a specially designed curved blade on the shovel, which not only improves grinding efficiency but also ensures more uniform wear, extending service intervals and reducing the frequency of internal maintenance. For our LM Vertical Grinding Mill, the roller and liner can be turned out of the mill housing hydraulically, allowing for replacement and inspection without entering the mill chamber—a major safety advancement over traditional designs.

Another standout for operational safety is the Ball Mill. While a classic design, our models feature large, well-positioned access hatches and are often supplied with custom-designed liner handling tools that minimize manual labor and the risk of injury during refractory or liner changes.

Control System Integration and Emergency Features

Modern mills are governed by sophisticated PLC (Programmable Logic Controller) systems. These systems provide a unified safety interface.

• Centralized Emergency Stop: Multiple, clearly marked E-stop buttons are located at all key access points.
• Sequential Start-up/Shutdown: The control system ensures all auxiliary equipment (lubrication systems, fans, feeders) starts and stops in the correct sequence, preventing unsafe conditions like running the mill without lubrication.
• Fault Diagnostics: The control panel provides clear, plain-language fault messages, allowing operators to quickly understand and respond to issues like “Bag Filter Differential Pressure High” or “Main Bearing Temperature High.” This is a standard feature on our MTM Medium-Speed Grinding Mill and more advanced models.

Conclusion: A Safe Choice for a Demanding Industry

From the mechanical robustness of our Hammer Mill to the intelligent, predictive safety systems of our LUM Ultrafine Vertical Mill, Shanghai Zenith Machinery is committed to providing not just the most efficient, but also the safest grinding solutions on the market. Our comparative look reveals a consistent thread of safety-first engineering that adapts to the specific risks of each mill type.

We invite you to consider the LM Vertical Grinding Mill for its exceptional operational safety and minimal maintenance intrusion, or the LUM Ultrafine Vertical Mill for the most advanced, intelligent safety systems for superfine powder production. By choosing Zenith, you are investing in productivity that is built on a foundation of unwavering safety.
