In the industrial grinding sector, noise pollution has become an increasingly important consideration alongside operational efficiency and productivity. The acoustic performance of grinding equipment not only affects workplace safety and employee health but also has significant implications for environmental compliance and operational costs. This article provides a comprehensive comparison between two prominent grinding technologies—Vertical Mills and Pendulum Mills—with particular focus on their noise generation characteristics, mechanisms, and mitigation strategies.

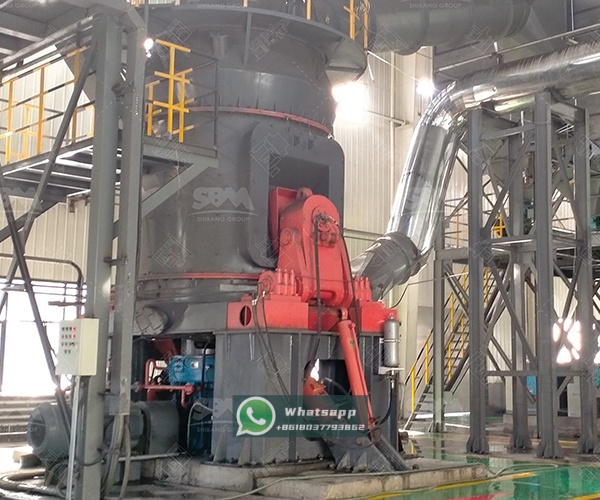

Modern industrial grinding encompasses various technologies, each with distinct operational principles and acoustic signatures. Vertical mills, represented by Shanghai Zenith Machinery’s advanced LM series, integrate multiple functions including crushing, grinding, powder selection, drying, and material conveyance into a single compact unit. These mills feature a vertical orientation where grinding rollers press against a rotating grinding table, creating a bed compression grinding mechanism.
Pendulum mills, commonly known as Raymond mills, employ a different approach where grinding rollers swing outward due to centrifugal force and roll tightly against the grinding ring. The pendulum suspension creates a unique motion pattern that influences both grinding efficiency and noise generation.
Vertical mills generate noise through several primary mechanisms. The most significant source is the mechanical interaction between grinding rollers and the grinding table. As materials are crushed between these components, impact noise is produced, particularly when processing hard or coarse materials. Additionally, the gear transmission system contributes medium-frequency noise, while the classifier motor and fan system generate aerodynamic noise.
Shanghai Zenith Machinery’s LM Vertical Grinding Mill series addresses these noise concerns through advanced engineering. The integrated design minimizes transfer points where noise typically amplifies, and the enclosed structure provides natural sound attenuation. For instance, the LM190K model operates with significantly reduced noise levels compared to traditional grinding systems, making it suitable for installations with strict noise regulations.
Pendulum mills exhibit distinct noise characteristics primarily stemming from their operational mechanics. The swinging motion of grinding rollers creates periodic impact forces against the grinding ring, generating rhythmic noise patterns. The mechanical transmission system, including the central shaft and grinding ring assembly, contributes additional medium-to-high frequency noise components.
Traditional pendulum mills often produce noise levels between 85-95 dB(A) during operation, with peak levels during startup and material feeding. The open grinding chamber design in conventional models allows noise to propagate more freely into the surrounding environment compared to enclosed vertical mill systems.

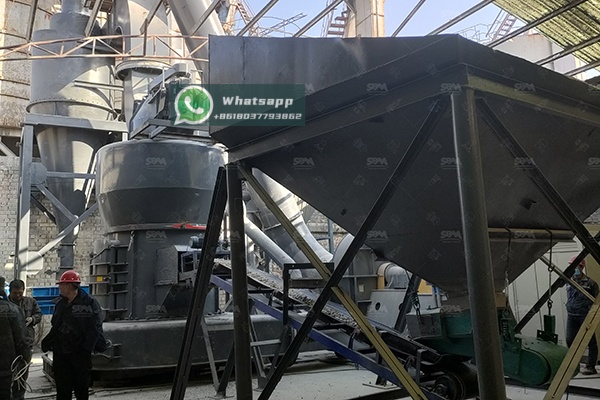

Extensive field measurements and laboratory testing reveal significant differences in acoustic performance between these mill types. Vertical mills typically operate at noise levels between 75-85 dB(A), with advanced models like Zenith’s LUM Ultrafine Vertical Mill achieving even lower levels through optimized design and sound-dampening materials.
Pendulum mills generally produce higher noise levels, typically ranging from 85-95 dB(A), due to their impact-dominated grinding mechanism and less effective noise containment. The table below illustrates the noise performance of Shanghai Zenith Machinery’s representative models from both categories:
| Mill Type | Model | Typical Noise Level (dB(A)) | Capacity (t/h) | Main Motor Power (kW) |
|---|---|---|---|---|
| Vertical Mill | LM190K | 78-82 | 23-68 | 500 |
| Vertical Mill | LUM1525 | 75-80 | 1.6-11.5 | 220-250 |
| Pendulum Mill | YGM4121 | 88-92 | 5-11 | 132 |
| Pendulum Mill | MTM160 | 85-90 | 9-22 | 132 |

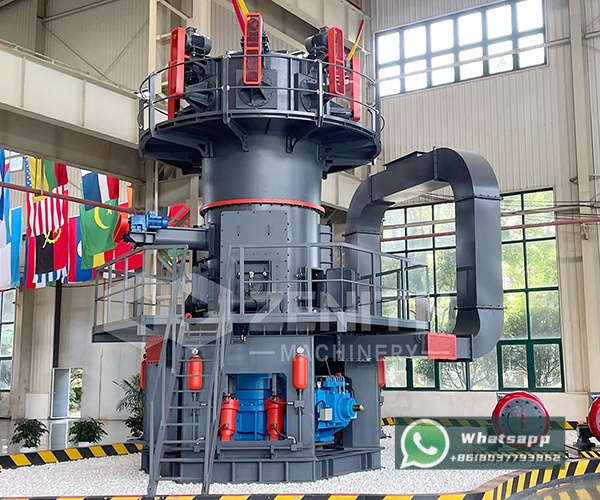

Shanghai Zenith Machinery’s LM Vertical Grinding Mill represents the pinnacle of low-noise grinding technology. The mill’s design incorporates several noise-reduction features that set it apart from conventional grinding equipment. The integrated grinding chamber is fully enclosed, containing noise at the source, while the optimized grinding curve reduces impact severity between rollers and the grinding table.
The LM series employs advanced vibration-dampening materials in critical areas and features a precision-balanced grinding table that minimizes vibrational noise. The hydraulic system allows for precise pressure control, enabling optimal grinding with minimal impact force. These design elements collectively contribute to noise levels approximately 10-15 dB lower than comparable pendulum mills.
For applications requiring ultra-fine grinding with minimal acoustic impact, Shanghai Zenith Machinery developed the LUM Ultrafine Vertical Mill. This advanced grinding system represents the next evolution in quiet operation technology, incorporating intelligent control systems that optimize grinding parameters in real-time to minimize noise generation.
The LUM series features several proprietary noise-reduction technologies, including an advanced grinding roller sealing system that prevents material leakage and reduces aerodynamic noise. The mill’s classifier operates at optimized speeds to maintain efficiency while minimizing high-frequency noise. With typical operational noise levels of 75-80 dB(A), the LUM mill sets new standards for quiet operation in ultrafine grinding applications.
| Model | Main Machine Power (kW) | Capacity (t/h) | Noise Level (dB(A)) | Size Distribution D97 (μm) |
|---|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 75-80 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 76-81 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 77-82 | 5-30 |
Beyond equipment selection, several operational strategies can further reduce noise levels in grinding applications. Proper maintenance of grinding components ensures smooth operation and prevents noise escalation due to wear. Regular inspection and replacement of worn rollers and grinding surfaces maintain optimal clearances and reduce impact severity.
For pendulum mills, acoustic enclosures can be installed to contain noise, though this adds to installation complexity and cost. Vertical mills benefit from their inherent design advantages, requiring minimal additional noise control measures. Material characteristics also influence noise generation—harder materials typically produce higher noise levels, suggesting that feed preparation strategies can contribute to overall noise reduction.
The choice between vertical and pendulum mills has significant economic implications beyond initial equipment costs. Lower noise levels translate to reduced requirements for hearing protection, lower insurance premiums, and decreased costs associated with noise control measures. Regulatory compliance is increasingly important as occupational safety standards become more stringent worldwide.
Vertical mills typically offer better long-term economic value when noise-related costs are considered comprehensively. The reduced environmental impact also facilitates permitting processes and community relations, particularly for facilities located near residential areas.
The comparison between vertical and pendulum mills clearly demonstrates the acoustic advantages of vertical grinding technology. Shanghai Zenith Machinery’s LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill represent the industry benchmark for low-noise operation while maintaining high grinding efficiency and product quality. These advanced grinding systems address the growing importance of noise control in industrial operations without compromising performance.
For new installations and upgrades where noise considerations are paramount, vertical mills offer compelling advantages. Their integrated design, superior noise containment, and advanced grinding mechanics provide a sustainable solution that aligns with modern industrial requirements for safety, environmental responsibility, and operational efficiency. As noise regulations continue to tighten globally, the acoustic performance of grinding equipment will increasingly influence technology selection decisions.
