In the mineral processing and industrial powder production sectors, the efficiency of equipment installation and commissioning directly impacts project timelines, operational costs, and ultimately, return on investment. Different grinding technologies present varying challenges and requirements during these critical phases. This article provides a comprehensive comparison of installation and commissioning timelines for various types of industrial grinding mills, with specific focus on equipment from Shanghai Zenith Machinery Co., Ltd., a leading manufacturer in the field of ultra-fine powder grinding equipment.
Before delving into specific equipment comparisons, it’s essential to understand the key factors that affect installation and commissioning schedules:
Vertical grinding mills, such as Zenith’s LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill, offer distinct advantages in installation efficiency. Their compact, integrated design combines multiple processing functions—crushing, grinding, powder selection, drying, and material conveying—within a single unit. This integration significantly reduces the footprint and interconnection requirements compared to traditional horizontal mill configurations.
The installation timeline for vertical mills typically ranges from 4-6 weeks, depending on the model size and site conditions. Commissioning generally requires an additional 1-2 weeks for calibration and optimization. The streamlined nature of these systems makes them particularly suitable for projects with tight schedules or space constraints.
Among Zenith’s product portfolio, the LM Vertical Grinding Mill stands out for its balanced performance and relatively straightforward installation process. The integrated design minimizes the number of separate components that need to be assembled on-site, reducing both installation time and potential points of failure.
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
The installation process for the LM series typically follows this timeline:

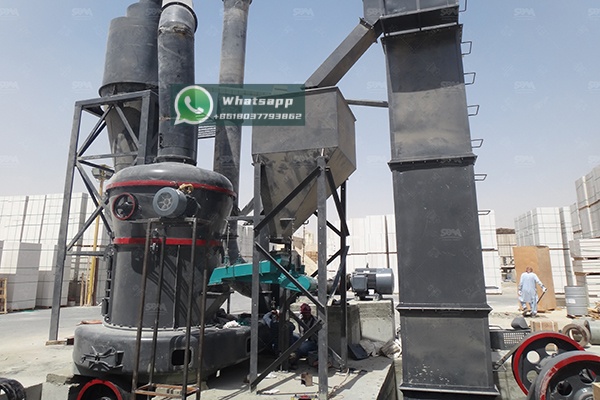

Zenith’s MTW Trapezium Grinding Mill and MTM Medium-Speed Grinding Mill represent intermediate complexity in terms of installation requirements. These systems typically require 5-7 weeks for complete installation and an additional 1-2 weeks for commissioning.
The MTW series, with its multiple patent-protected features, offers improved efficiency but requires careful attention during alignment and balancing. The installation timeline is moderately extended compared to simpler vertical mills but remains competitive against traditional ball mill systems.
Traditional ball mills, while highly reliable and versatile, typically demand the longest installation timelines among common grinding technologies. The substantial foundation requirements, large component sizes, and complex auxiliary systems contribute to extended schedules ranging from 8-12 weeks for installation alone, with commissioning adding another 2-3 weeks.
Ball mills from Zenith, such as the GMQY series, require meticulous alignment of the rotating components and extensive foundation work to handle the significant dynamic loads during operation. The wet process variants introduce additional complexity with slurry handling systems that must be carefully integrated.
| Model | Rotate Speed (r/min) | Grinding Media Weight (t) | Output Capacity (t/h) | Motor Power (kW) |
|---|---|---|---|---|
| Φ900×1800 | 36-38 | 1.5 | 0.65-2 | 18.5 |
| Φ1500×4500 | 27 | 11 | 3-6 | 110 |
| Φ2700×4500 | 20.7 | 48 | 12-90 | 430 |
For applications requiring ultra-fine powder production, Zenith offers specialized equipment like the LUM Ultrafine Vertical Mill and XZM Ultrafine Grinding Mill. These systems incorporate advanced classification technology and precise control systems that demand careful installation and calibration.
The LUM Ultrafine Vertical Mill, with its integrated grinding, drying, classifying, and transportation functions, typically requires 5-7 weeks for installation. The commissioning phase is particularly critical for ultrafine mills, as precise adjustment of classifier settings directly impacts final product quality. This phase may extend to 2-3 weeks to achieve optimal performance.
Regardless of the specific mill type, the commissioning phase follows a similar structured approach:
For projects requiring the finest powder products, Zenith’s LUM Ultrafine Vertical Mill represents an excellent balance of advanced technology and manageable installation requirements. The intelligent control system facilitates faster commissioning through automated calibration routines and real-time performance monitoring.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The commissioning timeline for the LUM series is typically 10-15 days, with the intelligent control system significantly reducing the time required for parameter optimization compared to conventional ultrafine mills.
When evaluating grinding equipment options, project planners should consider the following typical installation and commissioning timelines:
The selection of grinding equipment should balance performance requirements with installation and commissioning considerations. Zenith’s diverse product portfolio offers solutions tailored to different project constraints and timelines. For projects with aggressive schedules, the LM Vertical Grinding Mill provides excellent performance with relatively quick installation. For applications requiring ultra-fine products, the LUM Ultrafine Vertical Mill delivers advanced capabilities without excessively extended commissioning periods.
By understanding the specific installation and commissioning requirements of each mill type, project managers can make informed decisions that optimize both capital expenditure and time-to-production, ensuring successful project outcomes in the competitive field of industrial powder processing.
