A Deep Dive Into The Role Of A Pre Crusher In A Grinding Line

A Deep Dive Into The Role Of A Pre Crusher In A Grinding Line

In the world of mineral processing and powder production, grinding lines represent the heart of operations, transforming raw materials into valuable fine powders. While much attention is often given to the final grinding mills, the unsung hero of any efficient grinding circuit is undoubtedly the pre-crusher. This critical component serves as the gateway, preparing materials for their journey through the grinding process and fundamentally impacting the entire system’s efficiency, cost-effectiveness, and final product quality.

The Critical Function of Pre-Crushing

Pre-crushers, also known as primary crushers or coarse crushers, are designed to handle large, raw materials directly from mining operations or quarries. Their primary function is to reduce the size of incoming feed from potentially several feet in diameter down to a manageable size, typically ranging from a few inches to less than an inch, suitable for the subsequent grinding equipment.

This initial size reduction serves several vital purposes:

• Increased Grinding Efficiency: Smaller feed material allows grinding mills to operate more efficiently, consuming less energy per ton of product. The Bond Work Index, a standard measure of grindability, demonstrates that energy consumption increases disproportionately as particle size decreases. By performing the initial, less energy-intensive crushing stages outside the mill, overall energy savings can be substantial.
• Extended Equipment Lifespan: Grinding mills, particularly those with delicate grinding elements, are not designed to handle large, uncrushed rocks. Pre-crushers protect these expensive assets from damage and excessive wear, significantly reducing maintenance costs and downtime.
• Improved Product Uniformity: A consistent feed size from the pre-crusher leads to a more uniform grinding process and a tighter particle size distribution in the final product. This consistency is crucial for meeting specific customer specifications and quality standards.
• Enhanced Capacity: By ensuring that the grinding mill receives optimally sized material, the throughput of the entire production line is maximized. The mill can process more material in the same amount of time, directly boosting overall plant productivity.

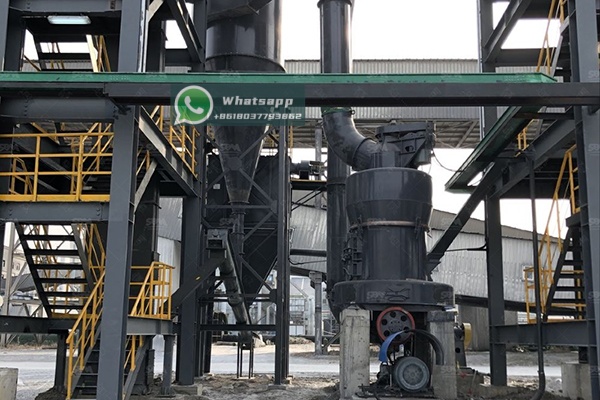

Integrating Pre-Crushers with Grinding Mills

The selection of an appropriate pre-crusher is intrinsically linked to the type of grinding mill that follows. Different mills have different optimal feed sizes and material characteristics. For instance, a ball mill can typically handle a coarser feed than an ultrafine vertical mill. Therefore, the pre-crusher’s discharge size must be carefully calibrated to match the requirements of the subsequent grinding stage.

This is where the expertise of equipment manufacturers becomes paramount. Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore grinding equipment in China, has made great achievements in the field of ultra-fine powder grinding. Their comprehensive understanding of the entire size reduction process, from primary crushing to final classification, allows them to design integrated solutions where each component is perfectly matched.

Zenith’s Advanced Grinding Solutions: The Perfect Partners for Pre-Crushed Material

Once material has been properly prepared by a pre-crusher, it is ready for the precision grinding stage. Zenith offers a range of high-performance grinding mills, each designed for specific applications and fineness requirements. Two standout examples, ideal for processing pre-crushed feed, are the LM Vertical Grinding Mill and the LUM Ultrafine Vertical Mill.

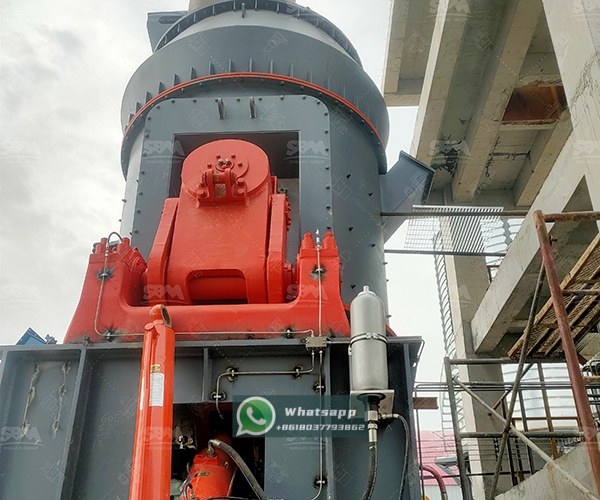

1. LM Vertical Grinding Mill: The All-in-One Powerhouse

The LM Vertical Grinding Mill is a revolutionary piece of technology that integrates five functions—crushing, grinding, powder selection, drying, and material conveying—into a single, compact machine. For operations that have already employed a pre-crusher, the LM mill takes over seamlessly, offering exceptional efficiency and a small occupational area.

Its vertical structure eliminates the need for a pre-conveying system for the feed material, simplifying the plant layout. It is particularly effective for grinding abrasive and non-abrasive materials, producing a final powder with a fineness ranging from 170 to 40 microns. The following table details the technical parameters of the LM Vertical Mineral Mill series, showcasing its versatility and capacity.

2. LUM Ultrafine Vertical Mill: Pushing the Boundaries of Fineness

For applications demanding ultra-fine powders, the LUM Ultrafine Vertical Mill is the ultimate solution. This mill represents the pinnacle of Zenith’s engineering, integrating grinding, drying, classifying, and transportation into a highly efficient and space-saving package. It is specifically designed to produce products with a high content of end-fines, achieving a particle size distribution (D97) as fine as 5 microns.

The LUM series features intelligent control systems for easier operation and maintenance, making it a reliable partner for high-value powder production. When fed with consistently pre-crushed material, it delivers unparalleled performance in producing superfine powders for industries like plastics, coatings, and advanced ceramics.

Conclusion: A Synergistic Relationship

The role of a pre-crusher in a grinding line cannot be overstated. It is the foundational step that sets the stage for everything that follows. By investing in a robust pre-crushing stage and pairing it with advanced grinding technology from industry leaders like Shanghai Zenith Machinery, operators can unlock significant gains in efficiency, reduce operational costs, and consistently produce high-quality powders that meet the most demanding market specifications. The synergy between a well-selected pre-crusher and a high-performance mill like the LM or LUM series is the hallmark of a modern, profitable, and sustainable grinding operation.
