The pursuit of high aspect ratio talc particles represents one of the most challenging frontiers in mineral processing. Unlike conventional grinding that aims for maximum size reduction, high aspect ratio grinding requires preserving the platy structure of talc while achieving the desired fineness. This specialized application demands equipment capable of delivering controlled, shearing forces rather than impact-dominated comminution.
Talc, a hydrated magnesium silicate with the chemical formula Mg3Si4O10(OH)2, possesses a unique layered structure that gives it characteristic plate-like morphology. In many industrial applications—particularly in polymers, paints, and coatings—maintaining this high aspect ratio (the ratio of diameter to thickness) is crucial for achieving optimal reinforcement, barrier properties, and optical characteristics.
Traditional grinding methods often destroy this delicate platelet structure through excessive impact and compression forces. Ball mills, for instance, typically produce more equiaxed particles through random fracture patterns. The challenge lies in selecting equipment that can delaminate the talc crystals along their natural cleavage planes while minimizing destructive perpendicular forces.
Successful high aspect ratio talc grinding depends on several interconnected factors:
Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore grinding equipment in China, has made significant achievements in the field of ultra-fine powder grinding. Our specialized research, development, and production of industrial powder grinding equipment has yielded several solutions specifically suited for high aspect ratio talc production.

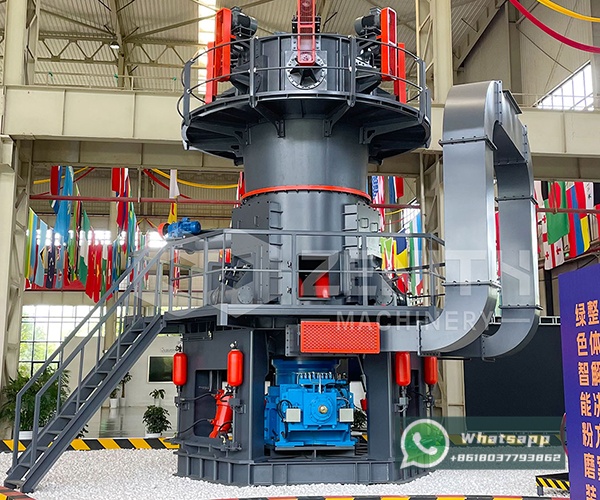

For high aspect ratio talc grinding, we particularly recommend our LUM Ultrafine Vertical Mill. This advanced system integrates grinding, drying, classifying, and transportation in a single unit, offering unparalleled control over the grinding environment. The unique grinding mechanism applies predominantly shearing forces that perfectly match the delamination requirements of talc crystals.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The LUM series features intelligent control systems that allow precise adjustment of grinding parameters to optimize aspect ratio preservation. The integrated classification system ensures that properly delaminated particles are immediately removed from the grinding zone, preventing destructive regrinding.
For operations requiring different capacity ranges or specific fineness requirements, our XZM Ultrafine Grinding Mill presents an excellent alternative. This mill is particularly effective for producing superfine talc powders while maintaining good aspect ratio characteristics.
| Model | Working diameter (mm) | Max feed size (mm) | Final size (mesh) | Output (kg/h) |
|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 |
Beyond equipment selection, several process parameters significantly influence the final aspect ratio of talc particles:
A major talc producer in Central China faced challenges with conventional grinding equipment destroying the platelet structure of their premium talc ore. After implementing our LUM1525 Ultrafine Vertical Mill, they achieved remarkable improvements:
>
The intelligent control system allowed operators to fine-tune parameters in real-time, responding to variations in feed material characteristics while maintaining optimal aspect ratio preservation.
Verifying high aspect ratio in talc products requires specialized analytical techniques. We recommend implementing:
While advanced grinding systems represent significant capital investment, the economic benefits of high aspect ratio talc production are substantial. Premium aspect ratio talc commands significantly higher market prices—often 2-3 times conventional grades. Additionally, the energy efficiency of modern vertical mill technology reduces operating costs while the integrated design minimizes space requirements and auxiliary equipment needs.
The demand for high-performance talc with controlled morphology continues to grow across multiple industries. Future developments will likely focus on:
Achieving high aspect ratio in talc grinding requires a sophisticated approach combining appropriate equipment selection with precise process control. Shanghai Zenith Machinery’s LUM Ultrafine Vertical Mill and XZM Ultrafine Grinding Mill represent state-of-the-art solutions specifically engineered for this challenging application. Through their advanced grinding mechanisms, integrated classification, and intelligent control systems, these mills enable producers to unlock the full value potential of their talc resources while meeting the evolving demands of high-performance applications.
As specialists in ultra-fine powder grinding technology, we continue to innovate and develop solutions that address the specific challenges of mineral processors worldwide. Our commitment to research and development ensures that our equipment remains at the forefront of grinding technology, delivering both technical excellence and economic value to our customers.
