In the industrial processing of minerals and raw materials, the grinding of friable and brittle substances presents unique challenges that require specialized equipment and approaches. These materials, characterized by their tendency to fracture easily under mechanical stress, demand grinding solutions that minimize over-processing, reduce heat generation, and prevent unwanted chemical changes while achieving the desired particle size distribution.
Friable materials are those that crumble easily under pressure, while brittle materials fracture with little plastic deformation. Common examples include quartz, limestone, gypsum, talc, calcite, and various ores. The primary challenge in processing these materials lies in controlling the fracture mechanism to produce consistent particle sizes without generating excessive fines or damaging the material’s inherent properties.
Traditional grinding methods often prove inadequate for these materials, as they can lead to:
Modern grinding technology has evolved significantly to address the specific requirements of friable and brittle materials. The key principles involve controlled impact forces, precise energy application, and efficient classification systems that work in harmony to optimize the grinding process.
Vertical grinding mills represent a significant advancement in processing technology, particularly suitable for friable materials. These systems integrate multiple functions into a single unit, reducing the number of processing steps and minimizing material handling, which is crucial for materials prone to degradation.
Shanghai Zenith Machinery Co., Ltd., as an excellent manufacturer of ore grinding equipment, has developed sophisticated solutions specifically designed for challenging materials. Their expertise in ultra-fine powder grinding has led to the development of equipment that maintains material integrity while achieving precise particle size control.

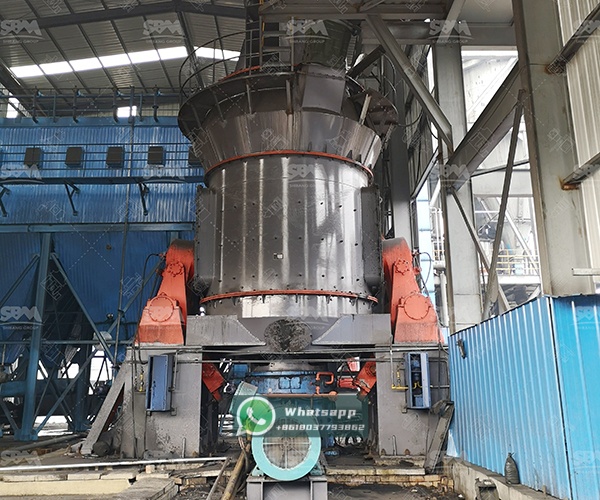

For processing friable and brittle materials, we highly recommend the LM Vertical Grinding Mill from Shanghai Zenith Machinery. This innovative equipment integrates five critical functions—crushing, grinding, powder selection, drying, and material conveying—into a single, compact system.
The LM Vertical Grinding Mill offers several distinct advantages for friable materials:
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
For applications requiring ultra-fine particle sizes, the LUM Ultrafine Vertical Mill provides an exceptional solution. This advanced mill is particularly effective for brittle materials that require precise control over the final particle size distribution.
Key features that make the LUM Ultrafine Vertical Mill ideal for friable materials include:
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
Different friable materials require tailored approaches to optimize grinding efficiency and product quality. Here are some specific application guidelines:
For limestone processing, the key is to minimize overgrinding while achieving the desired whiteness and particle size. The LM Vertical Grinding Mill provides excellent control over these parameters, with the integrated classification system ensuring consistent product quality.
Quartz grinding requires careful attention to contamination control and particle shape. The enclosed design of Zenith’s vertical mills prevents contamination while the controlled grinding action produces particles with optimal morphology for various industrial applications.
Soft, friable minerals like talc benefit from the gentle grinding action of vertical mills, which preserve the material’s natural properties while achieving the required fineness. The integrated drying system is particularly valuable for moisture-sensitive materials.
The implementation of advanced grinding technology for friable materials delivers significant operational and economic benefits:
The grinding of friable and brittle materials requires specialized equipment that can balance the competing demands of particle size reduction, material preservation, and operational efficiency. Shanghai Zenith Machinery’s advanced grinding solutions, particularly the LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill, provide comprehensive answers to these challenges.
Through continuous research and development in the field of ultra-fine powder grinding, Zenith has established itself as a leader in grinding technology. Their equipment not only meets the technical requirements for processing difficult materials but also delivers economic benefits through reduced operating costs and improved product quality.
For operations processing friable and brittle materials, investing in appropriate grinding technology is not merely an equipment decision but a strategic choice that impacts product quality, operational efficiency, and overall profitability. The advanced solutions from Shanghai Zenith Machinery represent the current state of the art in this demanding field.
