In the mineral processing and powder production industries, grinding mills represent one of the most critical and energy-intensive operations. Among the numerous factors influencing mill performance, feed size stands out as a fundamental parameter that directly affects throughput, energy consumption, product quality, and operational costs. This technical analysis explores the intricate relationship between feed size and mill efficiency, providing insights for optimizing grinding circuits.
Feed size refers to the maximum particle dimension of material entering the grinding chamber. This parameter establishes the initial conditions for the size reduction process and dictates the energy required to achieve the target product fineness. According to classical comminution theories, the energy consumption in grinding is inversely proportional to the square root of the product size, making proper feed preparation essential for economic operation.
The impact of feed size manifests across multiple dimensions of mill performance:
Different grinding mill designs exhibit varying sensitivities to feed size due to their distinct operating principles and mechanical configurations. Understanding these differences is crucial for proper equipment selection and circuit design.

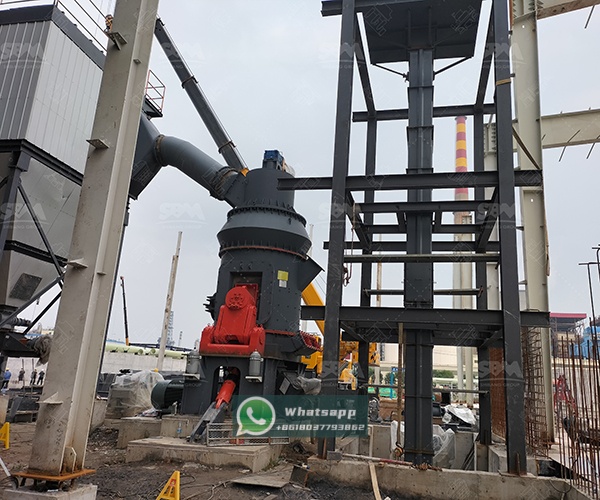

Vertical mills, such as the LM Vertical Grinding Mill series from Shanghai Zenith Machinery, integrate multiple functions including crushing, grinding, classification, and drying in a single unit. These mills typically accommodate moderate feed sizes while delivering high efficiency for medium to fine grinding applications.
The LM Vertical Grinding Mill series demonstrates how proper feed size management contributes to operational excellence:
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
The data illustrates how larger mill models can handle progressively coarser feed materials while maintaining precise control over product fineness. The vertical design enables efficient material transport and classification, making these mills particularly suitable for applications requiring consistent product quality.

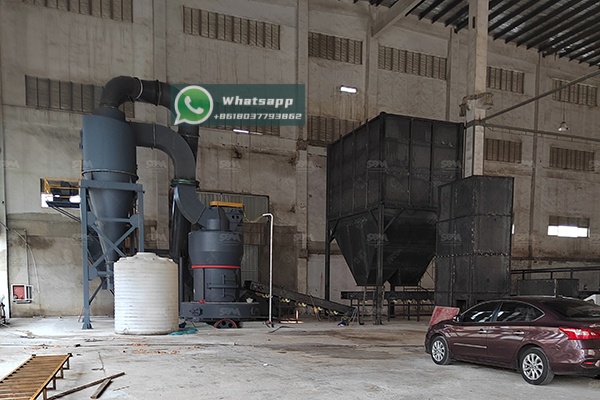

For operations requiring fine to ultra-fine grinding with high capacity, the MTW Trapezium Grinding Mill represents an advanced solution. This mill design incorporates multiple patents and features an optimized grinding chamber geometry that enhances efficiency across a wide range of feed sizes.
| Model | Max. Feed Size (mm) | Final size (mm) | Capacity (t/h) | Main motor (kW) | Fan motor (kW) |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 | 110 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 | 315 |
The MTW series demonstrates exceptional versatility in handling various feed sizes while maintaining precise control over product fineness. The progressive increase in capacity with larger models highlights the importance of matching feed size specifications to production requirements.
Proper feed size management delivers substantial economic benefits throughout the grinding circuit. The relationship between feed size reduction and energy savings follows established comminution principles, particularly Bond’s Law, which quantifies the specific energy requirement for size reduction.
Key economic considerations include:
Implementing effective feed size control requires a systematic approach encompassing equipment selection, circuit design, and operational practices. The following strategies have proven effective across various industrial applications:
Incorporating appropriate pre-crushing stages ensures that feed material entering the grinding circuit falls within the optimal size range for the specific mill type. Jaw crushers, gyratory crushers, or impact crushers can be deployed depending on material characteristics and production requirements.
Modern grinding circuits often include dedicated feed preparation systems comprising screens, feeders, and blending equipment. These systems ensure consistent feed size distribution, preventing mill overload conditions and promoting stable operation.
Advanced control systems utilizing particle size analyzers, power monitors, and feed rate controllers enable real-time adjustment of operating parameters. This approach maintains optimal grinding conditions despite variations in feed characteristics.

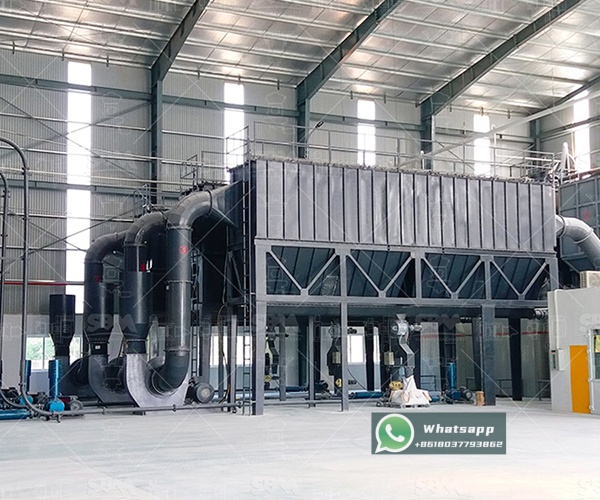

In ultra-fine grinding applications, feed size control becomes particularly critical. Equipment such as the LUM Ultrafine Vertical Mill from Shanghai Zenith Machinery demonstrates how advanced mill designs address the challenges of fine powder production.
The LUM series integrates grinding, drying, classification, and conveying functions in a compact design, offering significant advantages for ultra-fine powder production:
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
This equipment exemplifies how proper feed size management enables consistent production of high-value ultra-fine powders with tight particle size distributions. The integrated classification system ensures that only properly sized material exits the grinding chamber, while oversize particles are efficiently recirculated.
Feed size represents a critical parameter that profoundly influences grinding mill performance across multiple dimensions. Proper understanding and control of feed characteristics enable operators to optimize energy efficiency, maximize throughput, extend equipment life, and ensure consistent product quality. The selection of appropriate grinding equipment, such as the advanced mill designs offered by Shanghai Zenith Machinery, provides the foundation for achieving these operational objectives.
As grinding technology continues to evolve, the integration of intelligent control systems and advanced mill designs will further enhance our ability to manage feed size effects. By adopting a holistic approach that considers the entire size reduction circuit rather than individual components, operators can unlock significant value through improved process efficiency and product quality.
