In industrial grinding operations, the efficiency and performance of milling systems are heavily dependent on the proper design and integration of auxiliary components, particularly the mill fan and ducting system. These elements play a crucial role in material transportation, temperature control, and product classification, directly impacting the overall productivity and energy consumption of the grinding process.

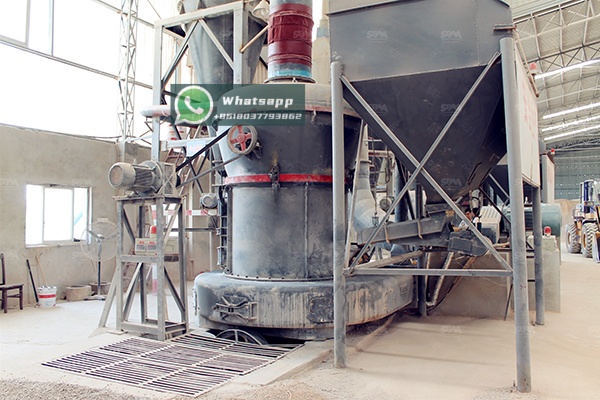

The mill fan and ducting system serves multiple critical functions in grinding operations. Primarily, it facilitates the transportation of ground materials from the milling chamber to the collection system. The airflow generated by the fan carries fine particles through the ductwork while allowing for proper classification and separation. Additionally, the system provides necessary ventilation to control operating temperatures and remove moisture from the grinding process, ensuring optimal mill performance and product quality.
Proper ducting design must account for several key factors including airflow velocity, pressure drop, material characteristics, and system layout. The duct diameter and routing significantly impact the system’s energy efficiency and operational stability. Sharp bends and unnecessary restrictions should be minimized to reduce pressure losses and prevent material accumulation.
The velocity of airflow within the ducting system must be carefully calibrated to ensure efficient material transport without excessive energy consumption. Too low velocity may result in material settling and blockages, while excessive velocity increases wear on system components and raises operational costs. For most mineral grinding applications, velocities between 18-25 m/s are typically optimal for balancing transport efficiency and energy consumption.
Accurate pressure drop calculations are essential for proper fan selection and system design. The total system pressure requirement comprises several components: mill internal resistance, classifier pressure drop, cyclone or bag filter resistance, and ducting losses. Each element must be carefully evaluated to ensure the selected fan can provide adequate static pressure while maintaining energy efficiency.
The physical properties of the processed materials significantly influence ducting design decisions. Factors such as particle size distribution, bulk density, abrasiveness, and moisture content must be considered when selecting appropriate materials for duct construction and determining optimal airflow parameters.
The evolution of grinding technology has led to increasingly sophisticated mill designs that require precisely engineered airflow systems. Modern grinding mills, particularly those designed for ultra-fine powder production, demand exceptional control over air volume and velocity to achieve desired product specifications.
Shanghai Zenith Machinery Co., Ltd. has established itself as a leading manufacturer of ore grinding equipment, with significant achievements in the field of ultra-fine powder grinding. Their comprehensive range of industrial powder grinding equipment incorporates advanced airflow management principles to maximize efficiency and product quality.

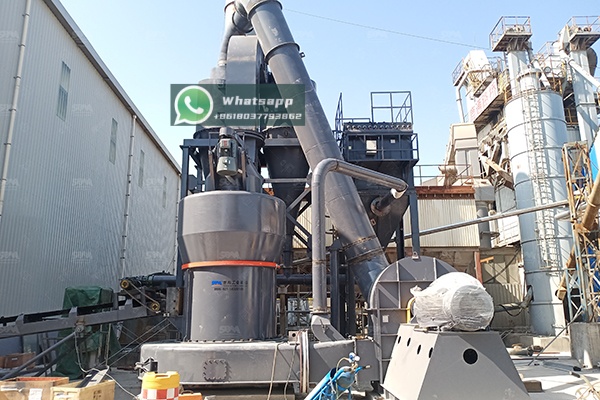

Among their extensive product portfolio, the LM Vertical Grinding Mill stands out for its integrated approach to material processing. This innovative design combines five essential functions—crushing, grinding, powder selection, drying, and material conveying—into a single compact unit. The vertical configuration naturally facilitates efficient material and airflow management, reducing the complexity of external ducting systems while maintaining high processing efficiency.
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
For applications requiring even finer grinding capabilities, Zenith’s LUM Ultrafine Vertical Mill represents the cutting edge of grinding technology. This advanced system integrates grinding, drying, classifying, and transportation functions while occupying minimal space. The intelligent control system ensures optimal airflow management throughout the grinding process, resulting in products with high content of end-fines and consistent quality.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The selection of appropriate fans for grinding systems requires careful consideration of multiple factors. Centrifugal fans are typically preferred for their ability to generate high static pressures necessary for overcoming system resistance. Backward-curved blade designs offer superior efficiency for continuous operations, while forward-curved blades may be suitable for applications requiring higher volumes at lower pressures.
Variable frequency drives (VFDs) have become increasingly important in modern grinding systems, allowing for precise control of fan speed to match process requirements. This approach significantly reduces energy consumption during partial load conditions and enables fine-tuning of system performance based on real-time operational data.
The choice of ducting materials must balance durability, cost, and performance requirements. For abrasive applications, wear-resistant materials such as AR steel or ceramic-lined sections may be necessary in high-wear areas. Proper gasket selection and flange design ensure system integrity while allowing for necessary maintenance access.
Efficient ducting layout minimizes pressure losses and maintenance requirements. Long-radius bends should be used whenever possible to reduce turbulence and wear. Strategic placement of access doors and inspection ports facilitates routine maintenance and troubleshooting. Proper support systems prevent sagging and vibration that could compromise system performance.
Industrial grinding systems operate across a range of temperatures, necessitating careful consideration of thermal expansion in ducting design. Expansion joints and flexible connectors accommodate dimensional changes while maintaining system integrity. These components also help isolate vibration from fans and mills, reducing stress on ductwork and supporting structures.
The fan and ducting system typically accounts for a significant portion of the total energy consumption in grinding operations. Several strategies can optimize energy usage:
Effective maintenance protocols are essential for ensuring long-term reliability of mill fan and ducting systems. Regular inspections should focus on:
Predictive maintenance technologies, including vibration analysis and thermal imaging, can identify potential issues before they lead to unscheduled downtime. Proper documentation of system performance establishes baselines for detecting degradation and planning maintenance activities.
The design and integration of mill fan and ducting systems represent a critical aspect of modern grinding operations. Proper consideration of airflow dynamics, material characteristics, and system integration ensures optimal performance, energy efficiency, and operational reliability. The advanced grinding solutions from Shanghai Zenith Machinery, particularly their LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill, demonstrate how integrated design approaches can simplify system requirements while delivering superior grinding performance.
As grinding technology continues to evolve, the importance of well-engineered airflow systems will only increase, particularly with the growing demand for ultra-fine powders across various industrial sectors. By applying the principles outlined in this analysis and leveraging advanced equipment designs, operators can achieve significant improvements in productivity, product quality, and operational efficiency.
