In the mineral processing and grinding industry, the structural integrity of grinding equipment is paramount to operational efficiency, safety, and longevity. Among the critical components, the mill shell and its foundation bolts play a vital role in withstanding dynamic loads, vibrations, and operational stresses. This article provides a comprehensive technical analysis of these components, highlighting design considerations, failure modes, and the importance of robust engineering.
The mill shell is the primary cylindrical structure that houses the grinding media and the material to be processed. It is subjected to a combination of mechanical stresses, including torsion, bending, and impact forces from the tumbling charge within. The design of the shell must account for fatigue resistance, corrosion, and wear.
Typically constructed from high-strength, low-alloy steel plates, the shell’s thickness is calculated based on the mill’s diameter, rotational speed, and the density of the grinding charge. Longitudinal and circumferential welds are critical areas that require non-destructive testing to ensure integrity. Furthermore, the shell is often lined with replaceable wear plates or liners to protect it from abrasion and impact, thereby extending its service life.
Foundation bolts, also known as anchor bolts, are the crucial link between the mill’s base and the concrete foundation. They are designed to resist the overturning moments, shear forces, and vibrational loads generated during mill operation. The failure of a single foundation bolt can lead to catastrophic misalignment, increased vibration, and even structural collapse.
Key design parameters for foundation bolts include:
The operation of a grinding mill generates significant dynamic forces. Unbalanced loads, uneven wear of liners and media, and the inherent characteristics of the grinding process can induce vibrations. These vibrations are transmitted through the mill shell to the foundation and its bolts. A comprehensive dynamic analysis is essential during the design phase to determine the natural frequencies of the system and avoid resonance, which can dramatically amplify stresses.
Vibration monitoring systems are often installed to provide real-time data on mill behavior. This allows for predictive maintenance, where issues like loose foundation bolts or developing cracks can be identified and rectified before they lead to unscheduled downtime.
Understanding potential failure modes is key to ensuring reliability.
Mill Shell Failures:
Foundation Bolt Failures:
The design of the grinding mill itself has a profound impact on the loads imposed on the shell and foundation. Modern mills are engineered for smoother operation and higher efficiency, which directly contributes to reduced dynamic stresses. A prime example of such advanced engineering is the LM Vertical Grinding Mill from Shanghai Zenith Machinery Co., Ltd.
This mill integrates multiple functions—crushing, grinding, powder selection, drying, and conveying—into a single, compact unit. Its vertical design results in a smaller footprint and a lower center of gravity compared to traditional horizontal ball mills. This configuration inherently generates less vibration and imposes lower overturning moments on the foundation and bolts, enhancing overall structural stability.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |

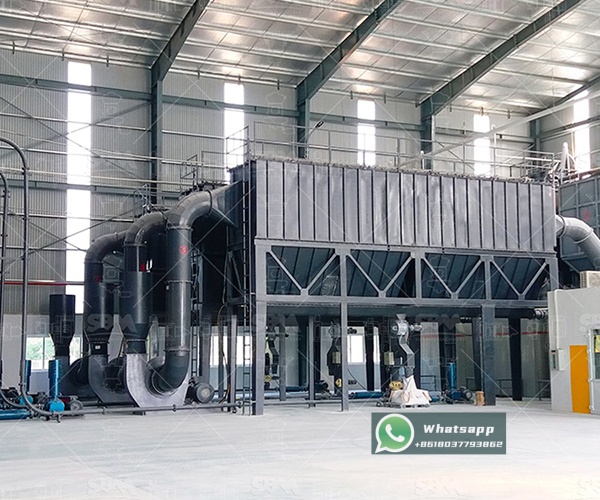

For applications requiring ultra-fine powders, the LUM Ultrafine Vertical Mill offers an even more advanced solution. It features intelligent control systems that optimize the grinding process, leading to stable operation and minimized shock loads. The compact and integrated design reduces the complexity of the foundation system while delivering superior product quality.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The mill shell and foundation bolts are deceptively simple components that bear immense responsibility in grinding operations. A failure in either can lead to prolonged downtime and significant financial loss. Therefore, a meticulous approach to their design, material selection, installation, and maintenance is non-negotiable. The adoption of modern, efficiently designed grinding mills, such as the LM and LUM series from Shanghai Zenith Machinery, provides a significant advantage. These mills are not only high-performing but are also engineered with structural integrity in mind, resulting in reduced stress on critical components and enhanced operational reliability. A proactive maintenance regime, coupled with the right equipment choice, is the cornerstone of a safe and productive grinding operation.
