Vertical mills have become the preferred grinding solution in modern mineral processing operations due to their superior energy efficiency, compact design, and excellent drying capabilities. At the heart of these machines lies the critical interaction between the grinding rollers and the grinding table – a relationship that fundamentally determines the mill’s performance, efficiency, and product quality. This technical analysis examines the design principles, operational mechanics, and optimization strategies for roller and table profiles in vertical mill systems.

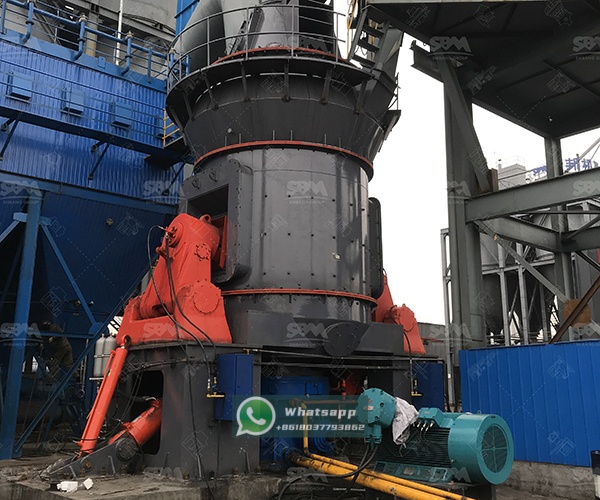

Vertical mills operate on the principle of bed compression grinding, where material is ground between a rotating table and stationary rollers. Unlike traditional ball mills that rely on impact and attrition, vertical mills apply concentrated pressure to the material bed, resulting in significantly higher energy efficiency. The grinding process involves three distinct stages: material feeding and distribution, compression grinding between rollers and table, and material transport for classification.
The efficiency of this grinding mechanism depends heavily on the geometrical relationship between the roller profile and table surface. Optimal design ensures uniform pressure distribution across the material bed, minimizes wear on components, and maximizes the utilization of grinding energy. Modern vertical mills incorporate sophisticated hydraulic systems that maintain consistent grinding pressure even as roller and table surfaces wear over time.
Grinding rollers in vertical mills are typically designed with a tapered or convex profile to create a focused grinding zone where pressure is maximized. The roller diameter-to-width ratio is carefully calculated to balance grinding efficiency with operational stability. Larger diameter rollers provide greater grinding leverage but require more robust support structures, while narrower rollers concentrate pressure but may cause uneven wear patterns.
Advanced roller profiles incorporate multiple grinding zones: a preliminary crushing zone with aggressive geometry for breaking larger particles, a main grinding zone with optimized curvature for efficient size reduction, and an exit zone that facilitates material discharge. Modern designs often feature replaceable wear segments that can be individually maintained, significantly reducing downtime and maintenance costs.
The material composition of rollers has evolved substantially, with most manufacturers now using high-chromium cast iron or composite materials with ceramic inserts for enhanced wear resistance. Surface hardening techniques, including flame hardening and high-frequency induction hardening, are employed to extend operational life in abrasive applications.
The grinding table serves as the foundation for the entire grinding process, providing both the grinding surface and the mechanism for material transport. Table profiles are engineered to create optimal material retention time while ensuring efficient transport to the periphery for classification. The table surface typically features segmented wear plates arranged in a radial pattern, designed to facilitate material movement under centrifugal force.
Modern table designs incorporate adjustable dam rings that control material bed depth, allowing operators to optimize grinding conditions for different feed materials and product requirements. The table rotation speed is precisely controlled to maintain the correct balance between centrifugal force and grinding efficiency, typically operating between 15-40 rpm depending on mill size and application.
The synergistic relationship between roller and table profiles determines the overall grinding efficiency. The optimal nip angle – the angle at which material enters the grinding zone – must be carefully calculated to ensure smooth material intake without slippage or vibration. Modern vertical mills utilize computerized design tools, including finite element analysis (FEA) and computational fluid dynamics (CFD), to optimize this interaction before manufacturing.
Operational parameters such as grinding pressure, table speed, and airflow are interdependent and must be balanced according to the specific roller and table geometry. Advanced control systems continuously monitor these parameters, making real-time adjustments to maintain optimal grinding conditions despite variations in feed material characteristics.
Shanghai Zenith Machinery Co., Ltd. has established itself as a leading manufacturer of ore grinding equipment, with particular expertise in vertical mill technology. Our extensive research and development efforts have produced several innovative vertical mill designs that optimize the roller and table interaction for maximum efficiency and reliability.
Among our comprehensive product range, the LM Vertical Grinding Mill series represents our flagship technology for mineral processing applications. This advanced mill integrates five functions – crushing, grinding, powder selection, drying, and material conveying – into a single compact unit. The carefully engineered roller and table profile ensures uniform grinding pressure distribution and extended component life, while the intelligent control system maintains optimal operational parameters.
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
For applications requiring ultra-fine grinding capabilities, Zenith offers the LUM Ultrafine Vertical Mill, which incorporates advanced roller and table profiles specifically designed for fine powder production. This mill features a unique grinding curve and optimized material flow path that enables production of powders with tight particle size distribution and high content of end-fines.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
Properly designed roller and table profiles deliver significant operational advantages. The most notable benefit is reduced specific energy consumption, with modern vertical mills typically consuming 30-50% less energy than traditional ball mills for the same grinding duty. This efficiency stems from the direct application of pressure to the material bed, minimizing energy losses associated with ball and liner impacts in conventional mills.
Additional benefits include improved product quality with tighter particle size distribution, enhanced drying capability for moist materials, reduced noise levels, and smaller physical footprint. The optimized profiles also contribute to extended maintenance intervals, as wear is distributed more evenly across the grinding surfaces.
Despite advanced materials and designs, roller and table wear remains an inevitable aspect of vertical mill operation. Progressive wear alters the original profile geometry, gradually reducing grinding efficiency and increasing energy consumption. Modern maintenance strategies employ regular profile measurements and scheduled hardfacing to restore optimal geometry before performance degradation becomes significant.
Zenith’s vertical mills incorporate several design features to facilitate maintenance, including hydraulic systems for easy roller positioning, segmented wear parts that can be replaced individually, and accessible inspection points for routine monitoring. Our technical support team provides comprehensive wear management services, including wear pattern analysis and customized hardfacing procedures.
The evolution of roller and table profiles continues as new materials and manufacturing techniques emerge. Current research focuses on smart rollers with embedded sensors for real-time wear monitoring, advanced composite materials with self-healing properties, and adaptive profile systems that can automatically adjust to changing operating conditions. Digital twin technology is being increasingly employed to simulate wear patterns and optimize maintenance schedules.
Zenith remains at the forefront of these developments, investing significantly in research initiatives aimed at further improving the efficiency and reliability of our vertical mill products. Our collaboration with academic institutions and industry partners ensures that we continue to deliver cutting-edge grinding solutions to our global customer base.
The roller and table profile represents the core technological element of vertical grinding mills, directly influencing performance, efficiency, and operational costs. Through continuous refinement of these critical components, manufacturers like Shanghai Zenith Machinery have achieved remarkable advances in grinding technology. Our LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill series exemplify this progress, offering industry-leading efficiency and reliability for a wide range of mineral processing applications.
As grinding technology continues to evolve, the optimization of roller and table interactions will remain a primary focus for researchers and engineers. The ongoing pursuit of higher efficiency, reduced wear, and enhanced operational flexibility ensures that vertical mills will maintain their position as the preferred grinding solution for modern mineral processing operations worldwide.
