In the evolving landscape of industrial mineral processing, the limitations of traditional Raymond mills are becoming increasingly apparent. Operations requiring higher throughput, superior product fineness, and enhanced energy efficiency often find their existing Raymond mills struggling to meet modern production demands. Upgrading to a more advanced European-style grinding mill represents a strategic investment that can significantly boost operational performance and profitability.
Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore grinding equipment in China with great achievements in ultra-fine powder grinding, offers sophisticated solutions for such upgrades. This technical guide explores the key considerations, benefits, and implementation strategies for transitioning from a conventional Raymond mill to a modern European grinding system.

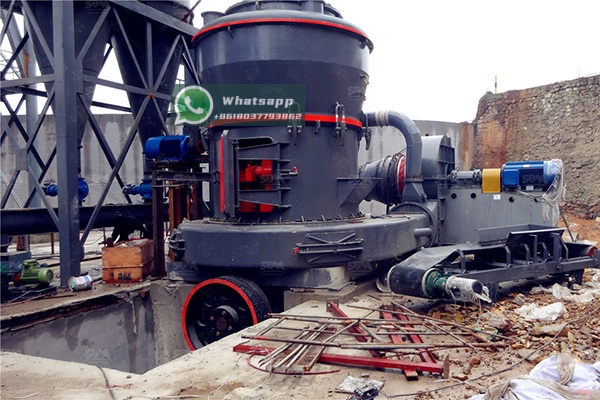

Traditional Raymond mills, while reliable workhorses for decades, present several operational challenges in today’s competitive environment. Their mechanical structure often leads to higher vibration levels, limiting grinding fineness typically to the 325-400 mesh range. The energy consumption per ton of processed material is considerably higher compared to modern designs, and maintenance requirements can be frequent and labor-intensive.
Furthermore, traditional systems often lack integrated drying capabilities, making them unsuitable for processing materials with significant moisture content. The limited automation and control options hinder optimization for varying feed materials and product specifications.
European-style grinding mills incorporate numerous technological advancements that address the shortcomings of traditional designs. The most significant improvements include:
For operations seeking to upgrade from traditional Raymond mills, Shanghai Zenith’s MTW Trapezium Grinding Mill presents an ideal solution. This advanced grinding mill incorporates multiple patents and represents the evolution of trapezium mill technology with its compact structure, long service life, and eco-friendly design.
The MTW series is specifically engineered to overcome the limitations of earlier generation mills while maintaining operational familiarity for existing personnel. Its bevel gear overall transmission ensures smooth operation with higher efficiency compared to traditional Raymond mills. The curved air duct design minimizes flow resistance while the internal efficient powder separator facilitates precise particle size control.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 | 55 |
| MTW110Z | <30 | 1.6-0.045 | 3-10 | 55 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 | 110 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 | 200 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 | 315 |
For operations requiring ultra-fine grinding capabilities beyond what traditional Raymond mills can achieve, Shanghai Zenith’s LUM Ultrafine Vertical Mill offers a revolutionary approach. This mill integrates grinding, drying, classifying, and transportation functions in a compact footprint while producing products with high content of end-fines.

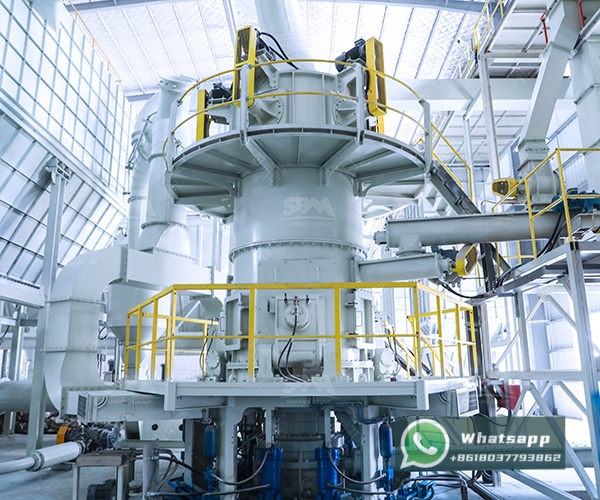

The LUM series features intelligent control systems that simplify operation and maintenance while ensuring consistent product quality. Its unique design minimizes space requirements while maximizing processing efficiency, making it an excellent choice for facilities with space constraints.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
Successfully upgrading from a Raymond mill to a European-style mill requires careful planning and execution. The implementation process typically involves these key phases:
Conduct a comprehensive analysis of current operations, including feed material characteristics, production capacity requirements, product specifications, and existing infrastructure limitations. This assessment will determine the most suitable replacement mill model and configuration.
Develop a detailed engineering design that addresses foundation requirements, material handling systems, dust collection, and electrical infrastructure. The compact design of modern European mills often allows for installation in existing footprints with minimal structural modifications.
Execute the physical installation with careful attention to alignment, electrical connections, and auxiliary systems. Comprehensive commissioning should include performance testing with actual production materials to verify all operational parameters.

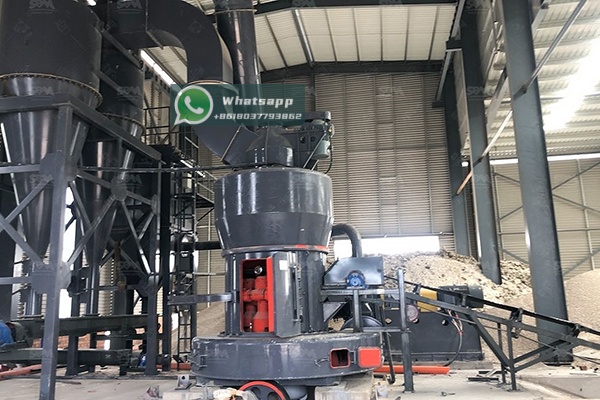

Provide thorough training for operations and maintenance personnel on the new equipment’s features, control systems, and maintenance requirements. The advanced automation typically reduces operational complexity while improving process control.
The decision to upgrade milling equipment must be supported by sound economic analysis. Key factors to consider include:
Most operations achieve return on investment within 12-24 months through a combination of operational savings and revenue enhancement from improved product quality and capacity.
Upgrading from a traditional Raymond mill to a modern European-style grinding mill represents a strategic investment that delivers substantial operational, economic, and environmental benefits. Shanghai Zenith’s MTW Trapezium Grinding Mill and LUM Ultrafine Vertical Mill offer sophisticated solutions tailored to specific production requirements, from general mineral processing to specialized ultra-fine applications.
The transition requires careful planning and execution but yields significant returns through reduced operating costs, increased production capacity, improved product quality, and enhanced operational reliability. As processing requirements continue to evolve toward finer products and higher efficiency, upgrading milling technology becomes increasingly essential for maintaining competitive advantage in the mineral processing industry.
By partnering with an experienced manufacturer like Shanghai Zenith Machinery Co., Ltd., operations can navigate the upgrade process smoothly while maximizing the benefits of modern grinding technology. The company’s expertise in research, development, and production of industrial powder grinding equipment ensures that upgrade solutions are technically sound, economically justified, and sustainably implemented.
