In the world of industrial grinding equipment, the longevity and efficiency of critical wear parts play a pivotal role in determining operational costs and overall productivity. Among these components, roller shells and grinding table liners are subjected to the most severe abrasive and impact forces. Their design, material composition, and manufacturing quality directly influence the grinding mill’s performance, maintenance frequency, and total cost of ownership. This article delves into the technical aspects of these components and highlights advanced grinding solutions that maximize their service life.
Roller shells and grinding table liners form the very heart of the grinding chamber in vertical mills and other grinding systems. The primary function of the grinding table is to feed the material bed towards the rollers, while the rollers apply compressive and shear forces to pulverize the material. This continuous, high-pressure contact creates an environment of extreme wear. The integrity of these parts ensures a stable material bed, consistent grinding fineness, and optimal energy consumption. Premature wear or failure can lead to unplanned downtime, increased power consumption, and contamination of the final product.
The battle against wear is fought with advanced metallurgy. High-chromium cast iron, nickel-chromium alloys, and composite materials are commonly employed for their exceptional hardness and impact toughness. The manufacturing process, including heat treatment and precision machining, is crucial. A properly heat-treated component will have a hardened surface to resist abrasion, coupled with a tougher core to withstand mechanical shocks and prevent catastrophic cracking. The geometric profile of the roller shell and the groove pattern on the grinding table liner are also engineered to optimize material transport and grinding efficiency, reducing unnecessary slippage and power loss.
The operational life of roller shells and table liners is not solely dependent on their own quality; it is intrinsically linked to the design of the grinding mill itself. Mills that offer stable operation, even material feed, and reduced vibration inherently promote longer wear part life. Furthermore, mills designed for easy maintenance and quick part replacement significantly reduce downtime during wear part overhaul.

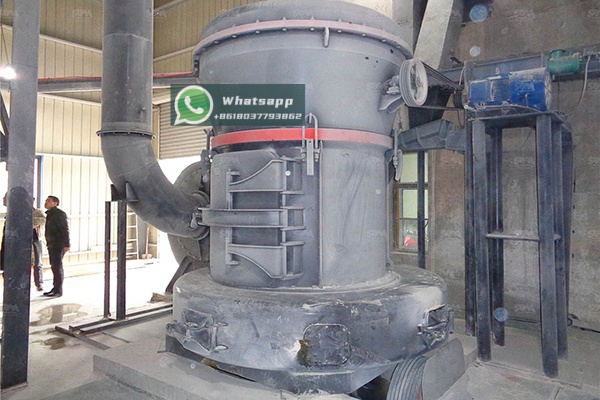

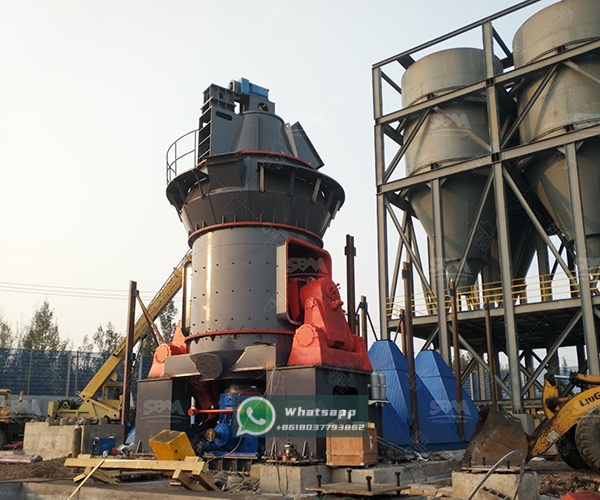

Shanghai Zenith Machinery Co., Ltd., a leading manufacturer in the field of industrial powder grinding, has made significant strides in this area. Their equipment is engineered to work in harmony with high-quality wear parts, ensuring maximum utilization and performance. For instance, their LM Vertical Grinding Mill series is a prime example of how intelligent design can benefit component longevity.
The LM Vertical Grinding Mill integrates five functions—crushing, grinding, powder selection, drying, and material conveying—into a single, compact unit. This integrated design promotes a stable grinding process, which minimizes erratic loads on the roller shells and table liners. The mill’s robust construction and precise control over the grinding pressure contribute to a more uniform wear pattern, extending the service intervals for these critical parts.
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Main motor (kW) |
|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | 1250 |
For applications requiring ultra-fine powders, the demands on grinding components are even greater. The LUM Ultrafine Vertical Mill, another innovative solution from Zenith, is specifically designed for this challenging task. It integrates grinding, drying, classifying, and conveying into a single system. Its advanced design features, such as an intelligent control system, allow for precise adjustment of operational parameters. This precision ensures that the grinding forces are applied optimally, preventing excessive wear and enabling the production of powders with a high content of end-fines, all while protecting the roller shells and table liners from undue stress.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The performance and durability of roller shells and grinding table liners are a direct result of a synergistic relationship between high-quality component manufacturing and advanced mill design. Focusing on one without the other leads to suboptimal results. By choosing equipment from manufacturers like Shanghai Zenith Machinery, which prioritizes robust engineering and operational stability, plant operators can significantly enhance the lifecycle of their wear parts, reduce maintenance costs, and achieve superior grinding performance. Investing in the right technology is the most effective strategy for optimizing the entire grinding process, from raw material input to final product output.
