In the oil and gas industry, particularly in the United Arab Emirates (UAE) – a region renowned for its vast hydrocarbon reserves – drilling fluids, commonly known as drilling mud, play a pivotal role in ensuring safe and efficient drilling operations. Barite (BaSO4), due to its high specific gravity (typically 4.2 g/cm³), is the most widely used weighting agent in drilling mud. It is added to increase the hydrostatic pressure of the mud to counteract formation pressures, prevent blowouts, and stabilize the wellbore. The quality of the barite powder, especially its fineness and consistency, is paramount. For oilfield applications, the American Petroleum Institute (API) specifies that barite must be ground to a particle size where 97% passes through a 75-micron (200 mesh) sieve.
This article delves into the specific requirements for barite grinding in the UAE market, focusing on a production capacity of 3 to 5 tons per hour (tph). We will explore the ideal grinding solutions available from Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer renowned for its innovative and reliable ore grinding equipment. We will analyze the technical specifications, operational benefits, and the overall value proposition of deploying Zenith’s advanced milling technology for drilling mud applications in the Middle East.
Before selecting a grinding mill, it is crucial to understand the material characteristics and the final product specifications. Raw barite ore often contains impurities and has varying degrees of hardness. In the UAE, sourced barite may have a Mohs hardness of around 3.0 to 3.5. The grinding process must be efficient and consistent. The target output for many mid-sized drilling fluid service companies is a fine powder, with a fineness typically ranging from 200 to 325 mesh (74 to 44 microns). For a 3-5 tph capacity, the mill must be robust enough to handle continuous operation while delivering a product that meets stringent API standards.
Key factors influencing mill selection include: Feed Size (usually less than 30mm for effective grinding), Abrasiveness (barite is relatively soft but can be abrasive), Moisture Content (should be below 6% to prevent clogging in mills like Raymond or Trapezium mills), and Energy Efficiency (critical for the competitive landscape of the UAE). Shanghai Zenith’s equipment portfolio offers specific models that perfectly bridge the gap between small-scale lab production and large-scale commercial plants, making them the ideal choice for this niche capacity requirement.
Based on the capacity requirement of 3-5 tph and the need for consistent, high-quality 200-325 mesh barite powder, we recommend two primary solutions from Shanghai Zenith. The first is the MTW Trapezium Grinding Mill, specifically the MTW110 model, and the second is the MTM Medium-Speed Trapezium Grinding Mill, the MTM100 model. Both mills are industry proven for processing non-flammable and non-explosious minerals like barite.

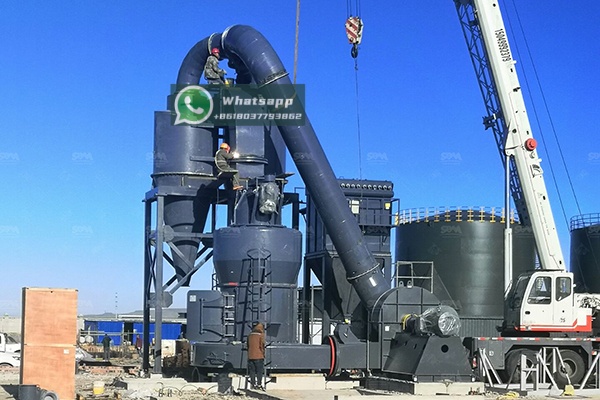

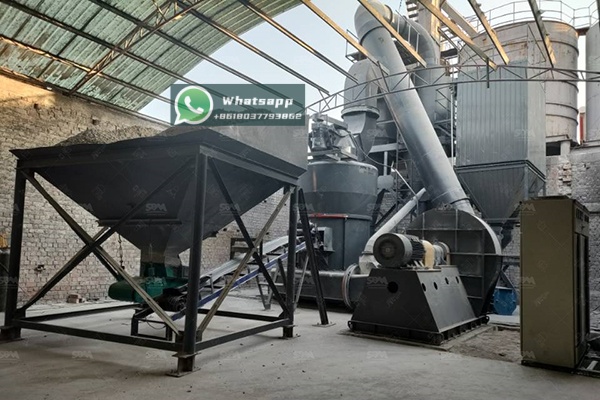

The MTW series is a flagship product for Zenith, incorporating multiple patents. It features an advanced bevel gear transmission, an integrally cast swing base, a curved duct with an air inlet, and a classifier with a high-efficiency impeller. These features result in lower energy consumption, longer service life, and a finer, more consistent final product. The MTW110 model is perfectly calibrated to handle our target capacity of 3-5 tph for barite grinding.
Below are the detailed technical parameters of the MTW110 Trapezium Grinding Mill as it would be applied to barite grinding for drilling mud.
| Parameter | MTW110 Specification |
|---|---|
| Model | MTW110 |
| Capacity (t/h) for Barite (200 mesh D97) | 3 – 5 |
| Max. Feed Size (mm) | < 30 |
| Final Product Size (mm) | 1.6 – 0.045 (Equivalent to 200-325 mesh) |
| Main Motor Power (kW) | 55 |
| Fan Motor Power (kW) | 55 |
| Recirculating Air Volume (m³/h) | 12000 |
| Weight (tons) | ~14 |
Why MTW110 for Drilling Mud Barite? The MTW110’s capacity range directly aligns with the 3-5 tph requirement. Its ability to produce a uniform powder with a fineness of 0.045mm ensures that the final product meets the API 13A specification for drilling grade barite. The mill’s compact structure and lower vibration levels make it suitable for installation in standard workshop environments found in the UAE’s industrial zones like Jebel Ali or Ruwais. The total motor power of 110kW (Main + Fan) provides an excellent balance between energy consumption and productivity, a critical factor for operational costs in the region.
For customers seeking a more traditional yet highly reliable solution, the MTM100 Medium-Speed Trapezium Mill is an excellent alternative. It is considered an ideal upgrade from the traditional Raymond Mill. The MTM100 features a unique self-contained transmission system and a thinner oil seal, preventing dust infiltration, which is crucial for barite processing. While its maximum capacity is slightly higher than the target, it can be easily tuned to operate efficiently at 3-5 tph with superior operational stability.
The MTM100 operates on the principle of medium-speed grinding with a fixed roller and a rotating grinding ring. It is recognized for its low energy consumption and low noise level, making it a preferred choice for many industrial projects worldwide.
Key Differentiators for the MTM100:
Its main motor power is 37 kW, which is significantly lower than the MTW110, potentially offering energy savings at the lower end of the capacity spectrum (3-4 tph). This makes the MTM100 an attractive option for operations where energy tariffs are a primary concern.
Shanghai Zenith Machinery Co., Ltd. has established a strong reputation in the UAE market for providing robust machinery that can withstand the demanding conditions of the local mining and construction industries. With over 30 years of experience in the research, development, and production of industrial grinding equipment, Zenith offers more than just machines. We provide complete solutions, including plant layout, installation guidance, and after-sales service.
Our factories are equipped to produce high-quality castings and steel structures, ensuring that every component, from the mill base to the classifier, is built to last. The MTW and MTM series are designed with the operator in mind, featuring centralized control systems that make production management straightforward. For barite grinding, we also recommend equipping the mill with a high-efficiency bag filter to ensure the plant meets the UAE’s strict environmental regulations regarding dust emissions.
For drilling mud service companies in the UAE requiring a consistent 3-5 tph barite grinding solution, both the MTW110 Trapezium Grinding Mill and the MTM100 Medium-Speed Grinding Mill represent world-class options. The MTW110 offers a cutting-edge, high-efficiency solution, while the MTM100 provides a dependable, cost-effective alternative. Both are capable of producing API-grade barite powder that will enhance your drilling operations.
By choosing Shanghai Zenith as your equipment partner, you are investing in reliability, efficiency, and superior technical support. We invite you to contact our team for a detailed consultation. Our local representatives in the UAE can assist with site evaluation, installation supervision, and spare parts supply, ensuring your barite milling project is a complete success. Upgrade your drilling mud preparation process with Zenith today.
