Thailand has established itself as one of Southeast Asia’s most dynamic manufacturing hubs, with a thriving foundry industry that supplies cast metal components for automotive, machinery, agricultural equipment, and general engineering applications. The quality of a casting depends heavily on the molding materials and sand systems used. Among the various additives, calcium carbonate powder has become an increasingly valuable component in modern sand casting systems. It helps improve the thermal stability of the mold, controls the expansion of silica sand, enhances the surface finish of cast parts, and contributes to more consistent mold compaction.
To obtain these benefits reliably, foundry operators in Thailand need a dependable calcium carbonate grinding mill that can produce the precise particle size required for their casting sand formulations. This article focuses on the production of 325 mesh calcium carbonate for casting sand in Thailand and explains how advanced grinding mills from Shanghai Zenith Machinery Co., Ltd. can help meet the exacting requirements of this application.
The term 325 mesh refers to a particle size distribution in which 97% or more of the material passes through a screen with 325 openings per linear inch. This corresponds to a top particle size of approximately 44 microns. In casting sand systems, calcium carbonate powder of this fineness acts as a useful buffer material. It can help to reduce the thermal expansion stresses of silica sand, prevent sand grains from fusing to the surface of the metal casting, and improve the overall surface quality of the finished part.
For Thai foundries producing gray iron, ductile iron, aluminum, and brass castings, consistent 325 mesh calcium carbonate powder is essential. If the calcium carbonate is too coarse, it may not distribute evenly in the sand mixture. If it is too fine, it can create excessive dust and complicate reclamation. A grinding mill that can precisely produce 325 mesh material with a narrow particle size distribution is therefore a vital piece of equipment for the modern casting sand plant.
Calcium carbonate is a semi-hard mineral with a Mohs hardness of about 3. Although it is not as hard as silica or granite, it can still be abrasive, especially when the raw material contains impurities. Moisture in the feed also affects grinding efficiency and powder flowability. In Thailand, where tropical humidity and seasonal monsoons can raise moisture levels, the grinding system must be able to handle slightly damp feed or include drying capabilities.
Another challenge is energy consumption. Grinding calcium carbonate to 325 mesh requires a significant amount of energy, and inefficient mills can quickly increase operating costs. In addition, the wear rate of grinding parts must be considered. A well-designed mill with high-quality alloys and optimized grinding geometry can reduce maintenance frequency and extend service life. Finally, the powder classification system must be accurate enough to ensure that the final product consistently meets the 325 mesh specification. All of these challenges can be solved by selecting the right calcium carbonate grinding mill from an experienced equipment manufacturer.
To obtain 325 mesh calcium carbonate at an industrial scale, the grinding mill must combine several key functions: crushing, grinding, powder classification, dust collection, and sometimes drying. The equipment should offer stable fineness control, high availability, and low operating costs. Important selection criteria include maximum feed size, final product fineness, capacity, motor power, floor space, and ease of maintenance. For a casting sand plant in Thailand, the mill also needs to be robust enough to run continuously in a demanding foundry environment.
Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in the research, development, and production of industrial powder grinding equipment and related devices. Zenith’s main products include the MTW Trapezium Grinding Mill, MTM Medium-Speed Grinding Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, Raymond Mill, Hammer Mill, and Ball Mill. For the production of 325 mesh calcium carbonate for casting sand, two Zenith products are particularly well suited: the MTW Trapezium Grinding Mill and the LM Vertical Fine-powder Mill.

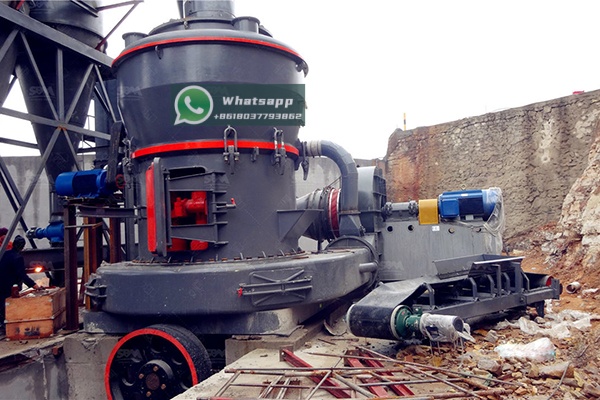

The MTW Trapezium Grinding Mill is a multi-patent grinding mill from Shanghai Zenith Machinery Co., Ltd. It is known for its compact structure, long service life, and eco-friendly design. The mill is suitable for processing materials with a maximum input size of 50 mm and can produce a final product as fine as 0.038 mm. This makes it highly capable of achieving the 325 mesh target, which is equivalent to 0.045 mm. The MTW mill uses a layered grinding principle, a trapezium-shaped grinding ring, and an integrated classifier to deliver consistent powder quality.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 | 55 |
| MTW110Z | <30 | 1.6-0.045 | 3-10 | 55 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 | 110 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 | 200 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 | 315 |
As shown in Table 1, the MTW138Z model offers a maximum feed size of 35 mm, a final product size down to 0.045 mm, and a capacity range of 6 to 17 tons per hour. This makes it an ideal choice for medium-scale casting sand plants in Thailand. The MTW175G and MTW215G models are also suitable for larger operations that require higher throughput. The trapezium grinding rollers and ring design reduce vibration, promote uniform wear, and lower energy consumption per ton of powder. For Thai producers who need a straightforward, reliable, and efficient solution for 325 mesh calcium carbonate, the MTW Trapezium Grinding Mill is a proven choice.

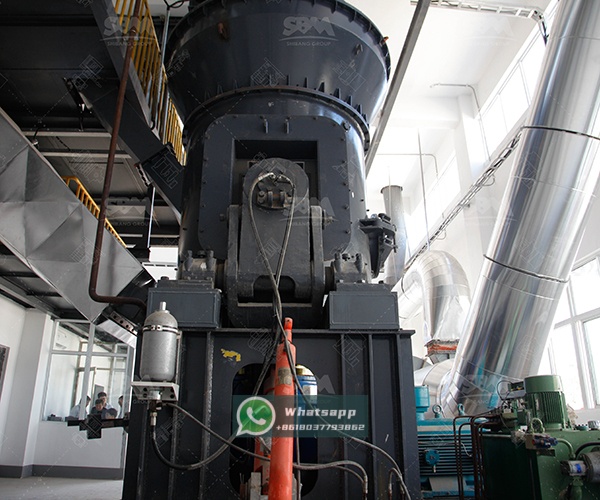

For casting sand plants that prefer a vertical grinding architecture, Shanghai Zenith offers the LM Vertical Fine-powder Mill series. This equipment integrates grinding, drying, classification, and material conveying in a single unit. The vertical mill is known for its small occupational area, high grinding efficiency, and excellent final powder quality. The LM130X-GX and LM220X-GX models in particular are designed to produce powders in the 325 to 600 mesh range, which makes them perfectly matched to the 325 mesh calcium carbonate requirement for casting sand.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (D97) | Main Motor (kW) |
|---|---|---|---|---|
| LM130X-GX | 1300 | 4-12 | 325-600 mesh | 220 |
| LM220X-GX | 2200 | 15-30 | 325-600 mesh | 560 |
The LM130X-GX vertical fine-powder mill has a plate diameter of 1300 mm and a capacity of 4 to 12 tons per hour, with a main motor power of 220 kW. The larger LM220X-GX provides 15 to 30 tons per hour, making it suitable for high-volume Thai casting sand suppliers. The vertical mill design reduces the number of auxiliary equipment needed, which simplifies plant layout and lowers civil engineering costs. For companies that want to produce 325 mesh calcium carbonate with stable quality and high energy efficiency, the LM Vertical Fine-powder Mill is an excellent option.
Integrating a calcium carbonate grinding mill into a casting sand production line in Thailand requires careful planning of the process flow. The typical process starts with raw calcium carbonate stone being crushed by a jaw crusher to a size smaller than the mill’s maximum feed size. The crushed material is then transported by a bucket elevator to a storage hopper. From the hopper, a vibrating feeder delivers the material evenly into the grinding mill. Inside the mill, the calcium carbonate is ground, classified, and collected as finished 325 mesh powder. A baghouse dust collector ensures clean operation and helps the plant meet environmental standards.
Because Thailand experiences high humidity, especially during the rainy season, a drying step may be added before or during grinding. The MTW Trapezium Grinding Mill can be equipped with hot air to dry material with moderate moisture content. The LM Vertical Fine-powder Mill also integrates drying with grinding, which is an advantage for tropical climates. Proper moisture control prevents material from adhering to grinding surfaces and ensures stable powder flow through the classifier.
Environmental compliance is becoming increasingly important for foundries in Thailand. Zenith grinding mills are designed with advanced sealing systems, noise reduction measures, and high-efficiency dust collectors. This reduces air pollution and improves working conditions around the mill. In addition, the high grinding efficiency and low energy consumption of the MTW and LM series help to lower operating costs per ton of calcium carbonate powder. The enhanced wear resistance of grinding parts also reduces downtime and maintenance expenses, which is critical for continuous production in a casting sand plant.
By using 325 mesh calcium carbonate produced by a reliable grinding mill, Thai foundries can improve the recycling rate of casting sand, reduce casting defects, and achieve a smoother surface finish on their products. The consistent particle size of Zenith-ground calcium carbonate also enables better control of the sand mixture, which leads to fewer rejections and higher overall productivity. In a competitive market, these advantages translate directly into better profitability.
Selecting the right calcium carbonate grinding mill is a strategic decision for any casting sand producer in Thailand. The 325 mesh fineness requirement demands equipment that can deliver stable product quality, high capacity, low energy consumption, and dependable operation. Shanghai Zenith Machinery Co., Ltd. offers excellent solutions through its MTW Trapezium Grinding Mill and LM Vertical Fine-powder Mill. Both product lines are backed by Zenith’s expertise in ore grinding equipment and its successful track record in ultra-fine powder grinding. With the right mill, Thai foundries can ensure a stable supply of high-quality 325 mesh calcium carbonate powder, improve casting quality, and remain competitive in the growing Southeast Asian market.
