The United Arab Emirates is one of the most dynamic industrial markets in the Middle East. With growing steel, cement, aluminum, and construction sectors, the demand for high-quality mineral fillers and metallurgical raw materials continues to rise. Calcium carbonate, mainly in the form of limestone, calcite, or marble, is a key industrial mineral. In metallurgy, calcium carbonate is used as a fluxing agent to help remove impurities, form a fluid slag, protect the furnace lining, and improve the efficiency of smelting and refining operations. For UAE-based processors, a reliable calcium carbonate grinding mill with a capacity of 3-5 tph is an ideal solution for supplying local steel plants, foundries, and related industries.
Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. We specialize in research, development, and production of industrial powder grinding equipment and related devices. Our product range includes MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. For a 3-5 tph calcium carbonate flux powder project in the UAE, we recommend the MTW110Z Trapezium Grinding Mill as the primary choice and the YGM9517 Raymond Mill as a flexible alternative.
In iron and steelmaking, flux is added to the furnace to combine with impurities such as silica, alumina, sulfur, and phosphorus, forming a slag that can be removed from the molten metal. Calcium carbonate, when heated, decomposes into calcium oxide and carbon dioxide. The calcium oxide then reacts with acidic impurities and helps create a basic slag. This slag protects the metal bath, reduces heat loss, and improves the refining process. Although some plants use quicklime directly, finely ground calcium carbonate remains a cost-effective and widely available flux source, especially where limestone deposits are abundant.
In the UAE, limestone and dolomite resources are found in several emirates, including Ras Al Khaimah, Fujairah, and Sharjah. These materials can be processed locally into flux-grade powder for steel mills, ferroalloy plants, and other metallurgical users. The required fineness depends on the specific process. For many metallurgical flux applications, a product size between 80 mesh and 200 mesh is suitable, although some plants may require finer or coarser powder. A 3-5 tph grinding plant offers the right balance between production flexibility and investment cost for small and medium-sized operations.
Calcium carbonate is a relatively soft mineral with a Mohs hardness of about 3. It is brittle and easy to grind compared with hard ores such as quartz or iron ore. However, UAE conditions introduce several practical challenges. First, raw limestone may contain moisture, silica, dolomite, or other impurities. If moisture is high, the grinding system may need drying capability or pre-drying to prevent clogging and ensure stable output. Second, high ambient temperatures can affect motor cooling, lubrication, and electronic components. Third, dust control is critical in the dry and windy UAE climate. A closed grinding circuit with an efficient pulse dust collector is essential for environmental compliance and worker safety.
Another consideration is product consistency. Metallurgical customers require stable chemical composition and particle size distribution. Variations in feed size, hardness, and moisture can affect mill throughput and final fineness. Therefore, the selected grinding mill should have an adjustable classifier, reliable feeder, and automatic control system. It should also be easy to maintain, because production downtime is costly in the UAE market.
When choosing a calcium carbonate grinding mill for metallurgy flux in the UAE, the following criteria should be evaluated:

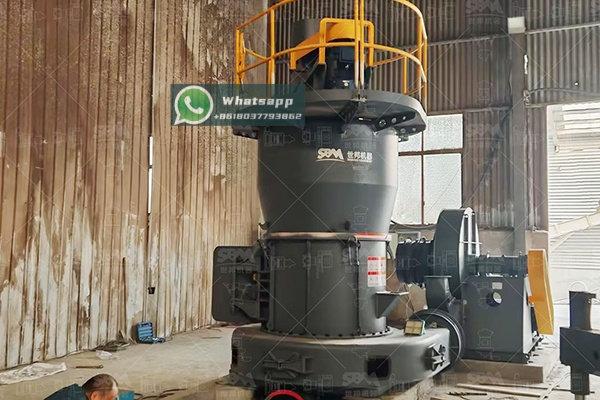

The MTW110Z Trapezium Grinding Mill is a highly efficient and eco-friendly mill with multiple patents. It is designed for materials with a maximum input size below 30 mm and can produce final powder from 1.6 mm down to 0.045 mm. Its capacity range is 3-10 tph, making it an excellent match for a 3-5 tph calcium carbonate flux project in the UAE. The mill features a compact structure, long service life, and advanced classifier. The curved air duct reduces air resistance, while the efficient fan and pulse dust collector help control emissions.
For metallurgy flux production, the MTW110Z can be adjusted to produce the required particle size, whether the customer needs coarse flux powder or finer material for faster reaction. Its robust grinding rollers and ring ensure stable operation with limestone, calcite, and dolomite. The main motor is 55 kW, and the fan motor is 55 kW, offering a balanced power configuration for 3-5 tph output.
| Parameter | MTW110Z |
|---|---|
| Max. Feed Size | <30 mm |
| Final Size | 1.6-0.045 mm |
| Capacity | 3-10 t/h |
| Main Motor | 55 kW |
| Fan Motor | 55 kW |
If the project requires a more compact layout or a lower initial investment, the YGM9517 Raymond Mill is a practical alternative. It uses four grinding rollers and accepts feed sizes up to 25 mm. Its discharge size range is 1.6-0.045 mm, and its capacity is 2.1-8 tph. With a capacity range covering 3-5 tph, the YGM9517 can serve small and medium-sized calcium carbonate flux production lines. The Raymond mill is known for high grinding efficiency, lower energy consumption, and good economic returns. It is also easier to operate and maintain than many larger systems.
| Parameter | YGM9517 |
|---|---|
| Roller Quantity | 4 pcs |
| Max. Feed Size | 25 mm |
| Discharging Size | 1.6-0.045 mm |
| Capacity | 2.1-8 t/h |
For customers who prioritize energy savings, the MTM100 Medium-Speed Grinding Mill is another option. It has four ring rolls, accepts feed below 25 mm, and delivers 3-8 t/h with a 37 kW main motor. However, the MTW110Z and YGM9517 are the two most direct solutions for a 3-5 tph calcium carbonate flux plant in the UAE.

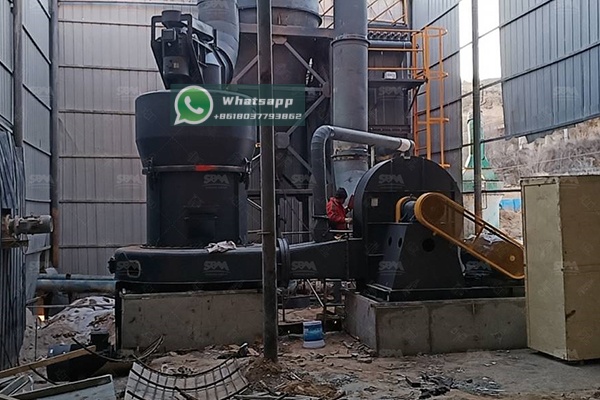

A complete 3-5 tph calcium carbonate grinding plant usually includes the following stages:
If the raw material moisture is above the acceptable limit, a drying system or hot air furnace may be added before or during grinding. For most UAE limestone sources, moisture control and covered storage are recommended to ensure consistent production.
UAE industrial sites often face high temperatures, dust, and coastal humidity. The grinding plant should be installed in a well-ventilated area or enclosed building with proper cooling for motors and control panels. Electrical components should be protected against dust and moisture, with appropriate IP ratings. The foundation must be designed to absorb vibration and support the dynamic loads of the mill and fan. Space should be reserved for maintenance access and future capacity expansion.
Because the UAE has strong ports and logistics networks, equipment can be shipped to Jebel Ali, Sharjah, Fujairah, or other ports. Shanghai Zenith Machinery can provide complete technical drawings, foundation plans, installation guidance, and commissioning support. For remote or desert sites, a robust water supply, compressed air, and reliable power supply should be confirmed before installation.
Using an advanced grinding mill for calcium carbonate flux production brings both environmental and economic benefits. A closed-circuit system with pulse dust collection minimizes dust emissions and improves workplace safety. High-efficiency classifiers reduce over-grinding, which saves energy and increases output. The MTW110Z and YGM9517 are designed to produce uniform powder with low noise and low vibration. This helps UAE producers meet environmental regulations and maintain good community relations.
Economically, local production of flux-grade calcium carbonate reduces reliance on imported materials and shortens the supply chain. A 3-5 tph plant can supply nearby steel mills, foundries, and industrial users with just-in-time deliveries. Lower transportation costs and reliable product quality improve the competitiveness of UAE mineral processors. In addition, the powder can be used in other applications, such as construction materials, soil stabilization, and chemical fillers, providing flexibility when metallurgical demand fluctuates.
Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China. With years of experience and continuous innovation, we have made great achievements in the field of ultra-fine powder grinding. Our main products include MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. We provide not only equipment but also complete solutions, including process design, equipment selection, installation, and after-sales service.
For a 3-5 tph calcium carbonate grinding plant in the UAE, Zenith can customize the configuration based on raw material test results. We can recommend the most suitable mill model, classifier, dust collector, and auxiliary equipment. Our engineers can help customers balance investment cost, energy consumption, product quality, and environmental performance. With durable wear parts and reliable operation, Zenith grinding mills are a sound long-term investment for metallurgy flux production.
Calcium carbonate is a valuable metallurgy flux material in the UAE, where steel, foundry, and industrial sectors continue to grow. For a production capacity of 3-5 tph, the MTW110Z Trapezium Grinding Mill is the primary recommendation due to its 3-10 tph capacity range, adjustable final size of 1.6-0.045 mm, compact structure, and eco-friendly design. The YGM9517 Raymond Mill is a flexible alternative with a capacity of 2.1-8 tph, suitable for smaller or budget-conscious projects. Both mills can be integrated into a complete production line with crushing, feeding, grinding, classification, dust collection, and product storage.
By choosing Shanghai Zenith Machinery, UAE customers can obtain professional technical support and high-quality grinding equipment for calcium carbonate flux production. Whether the goal is to supply local steel plants or to develop a broader mineral processing business, a well-designed 3-5 tph grinding plant can deliver reliable output, lower operating costs, and long-term value. Contact us today to discuss your calcium carbonate grinding project in the UAE.
