The Sultanate of Oman has been investing heavily in industrial infrastructure, special economic zones, and export-oriented manufacturing. Among the fast-growing sectors is the production of high-quality coatings and paints, where carbon black is a crucial pigment and functional filler. To achieve a consistent black shade, reliable UV stability, and proper mechanical strength in the final coating film, carbon black must be ground to a controlled fineness. For many coating formulations in Oman, the target is 200 mesh, which corresponds to 74 micrometres. Selecting the right carbon black grinding mill is not simply a matter of reducing particle size; it affects the entire production line, from energy consumption to final product quality.
Carbon black is widely used in black coatings, industrial paints, primers, and automotive finishes. In coating production, the fineness of carbon black directly influences colour strength, tinting strength, gloss, and rheology. A 200 mesh standard is a common practical specification because it ensures that agglomerates are reduced to a size that will not cause surface defects or sedimentation in the paint can. Grinding carbon black to 200 mesh also improves its dispersibility in binders and solvents, allowing coating manufacturers in Oman to formulate more stable products. If the grinding mill produces oversize particles, the coating may exhibit poor hiding power and uneven appearance.

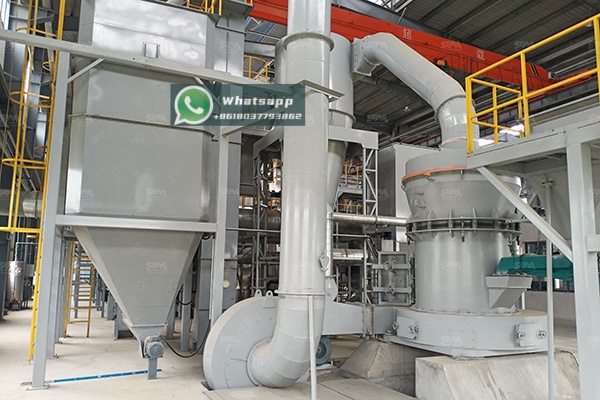

Carbon black presents several challenges to grinding equipment. It is very light and fluffy, with a large surface area, and it tends to form strong agglomerates. The material can easily become airborne, requiring effective dust collection and tight sealing. In addition, carbon black is abrasive to some extent and can wear out classifying impellers and grinding rollers over time. The warm climate of Oman and the dusty environment of typical mineral processing plants place further stress on mechanical components. Therefore, the ideal carbon black grinding mill must combine robust construction, efficient classification, low energy consumption, and simple maintenance.
When selecting a grinding mill for carbon black in a coating production plant, several factors must be evaluated. These include feed size, required throughput, moisture content, final fineness, and the possibility of changing product specifications. The mill should also be flexible enough to handle other minerals such as limestone, barite, bentonite, or talc, which are often used in coating formulations. In an Omani coating plant, a mill that can produce a final product from 1.6 mm down to 0.045 mm is highly valuable. This range includes the widely specified 200 mesh, and it offers enough flexibility to adjust the fineness according to different paint grades.
Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in the research, development, and production of industrial powder grinding equipment and related devices. Its product range includes MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. These machines are designed for demanding mineral processing operations and are suitable for coating raw material preparation. For an Omani coating manufacturer, Zenith provides efficient grinding technology and reliable mechanical design for carbon black grinding to 200 mesh.

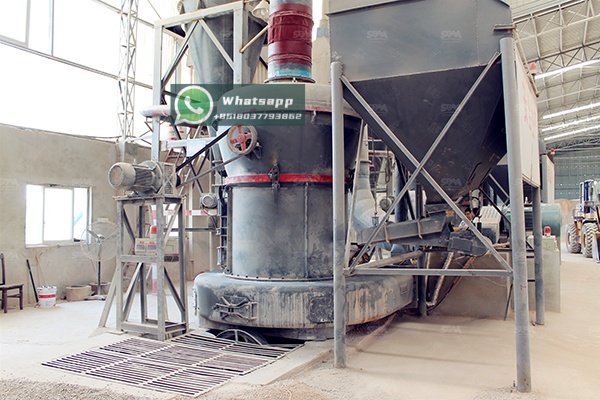

The MTW Trapezium Grinding Mill is strongly recommended for carbon black grinding for coating production in Oman. This mill has multiple patents and is known for its compact structure, long service life, and eco-friendly design. It is suitable for processing materials with a maximum input size of 50 mm, and its standard final product fineness range goes down to 0.045 mm. Because 200 mesh is equal to 0.074 mm, the MTW series can easily meet this specification while maintaining high productivity. The trapezium-shaped grinding roller and ring increase grinding efficiency and reduce vibration, which is beneficial in continuous production lines.
The following table shows the main technical parameters of the MTW series. For a carbon black coating line in Oman, the MTW110Z or MTW138Z are ideal choices depending on the required output. The MTW138Z has a compact footprint and a capacity of 6 to 17 tons per hour, which is suitable for medium and large-scale coating raw material preparation.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 | 55 |
| MTW110Z | <30 | 1.6-0.045 | 3-10 | 55 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 | 110 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 | 200 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 | 315 |
The MTW mill offers several advantages for carbon black processing. Its internal classifier can precisely adjust the rotating speed to keep the final powder within the 200 mesh specification. The grinding rollers and rings are made of wear-resistant material, reducing the frequency of replacement under abrasive carbon black feed. Moreover, the mill has a compact design and negative-pressure operation, which reduces dust leakage in warm Omani weather. The main motor power is moderate, helping coating plants lower operating costs while maintaining stable output.
For smaller coating production lines or projects with lower initial investment, the Zenith Raymond Mill is a proven alternative. The Raymond Mill is beneficial for energy saving and environmental protection. It offers high grinding efficiency, lower energy consumption, and high economic profits. The YGM9517 model has four grinding rollers, a maximum feed size of 25 mm, and a discharging size from 1.6 mm to 0.045 mm. It can easily deliver 200 mesh carbon black with a capacity of 2.1 to 8 tons per hour. This makes it an excellent entry-level machine for coating manufacturers in Oman who want to expand their capacity gradually.
| Model | Roller Quantity (pcs) | Max. Feed Size (mm) | Discharging Size (mm) | Capacity (t/h) |
|---|---|---|---|---|
| YGM8314 | 3 | 20 | 1.6-0.045 | 1.2-4.6 |
| YGM9517 | 4 | 25 | 1.6-0.045 | 2.1-8 |
| YGM4121 | 5 | 30 | 1.6-0.045 | 5-11 |
The demand for high-quality coatings in Oman continues to grow, and carbon black grinding is a critical step in producing stable, durable, and visually consistent products. A 200 mesh fineness is achievable with modern grinding technology, and it brings clear benefits in colour development and dispersion. Shanghai Zenith Machinery Co., Ltd. supplies advanced grinding systems that meet the specific needs of coating raw material producers. The MTW Trapezium Grinding Mill is the preferred recommendation for medium and large plants, while the Raymond Mill offers an economical choice for smaller operations. By selecting the right carbon black grinding mill, manufacturing companies in Oman can improve product quality, reduce energy costs, and build a more sustainable coating production line.
