Laos, with its rapidly expanding infrastructure and manufacturing sector, is beginning to explore more localized production of construction materials and paint ingredients. One of the most practical ways to add value is to grind cement clinker into a fine powder that can be used as a filler in paint systems. This article discusses how a cement clinker grinding mill can produce 200 mesh material for paint filler applications in Laos, and why Shanghai Zenith Machinery Co., Ltd. offers some of the most reliable and efficient solutions on the market. As an excellent manufacturer of ore grinding equipment in China, Zenith has built a strong reputation in the field of ultra-fine powder grinding. Its machines are used in dozens of countries for cement, mineral, and chemical powder production.
In mineral filler technology, 200 mesh means that nearly all particles pass through a screen with 200 openings per linear inch. The equivalent particle size is about 74 microns. At this fineness, a filler can be evenly dispersed in paint, helping to control viscosity, improve leveling, and enhance surface smoothness. A cement clinker filler ground to 200 mesh also provides better opacity and reduces the amount of expensive TiO2 needed in the formulation. Paint producers in Laos can therefore deliver high quality finishes while lowering raw material costs.
Producing a consistent 200 mesh powder is not simply a matter of crushing. The grinding mill must be capable of classifying particles so that the final product is neither too coarse nor over-ground. Shanghai Zenith’s mills combine grinding and classification in one system, making it possible to obtain a steep particle size distribution with minimal oversize material.
Mesh size is not the only quality criterion. The particle shape and surface chemistry also influence paint performance. Grinding in a classified mill tends to produce angular yet regular particles, which interlock well in paint film and provide mechanical strength. Over-grinding to ultra-fine sizes may increase water demand and viscosity. At 200 mesh, there is a good balance between performance and cost. This is why many paint filler producers specify 200 mesh for interior wall paints and industrial primers.
Cement clinker is produced by sintering limestone and clay in a rotating kiln at high temperature. The resulting nodules are hard, dense and abrasive. Grinding equipment used for cement clinker must therefore have high wear resistance and robust structural integrity. Conventional mills often suffer from high energy consumption and uneven particle size. In addition, clinker should be dry and free of metal contaminants. For the best results, the feed size should be reduced to 40 mm or smaller before final grinding. Zenith’s complete grinding plant can include a jaw crusher or hammer crusher to condition the clinker before it enters the mill.
Temperature is another concern. Fine grinding generates heat, which can cause agglomeration of fine particles. Zenith’s mill design prevents excessive temperature rise, ensuring stable operation and a consistent 200-mesh output. This is critical for paint fillers, where even a small percentage of coarse particles can ruin the surface appearance of a painted product.
Zenith has developed a wide range of grinding mills. For cement clinker to 200 mesh paint filler in Laos, two machines are particularly suitable: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill. The table below lists the key technical parameters.
| Technical Parameter | MTW175G | LM190K |
|---|---|---|
| Main Type | MTW Trapezium Mill | LM Vertical Mill |
| Max Feed Size | <40 mm | <45 mm |
| Final Product Size | 1.6-0.045 mm | 170-40 μm |
| Capacity | 9.5-25 t/h | 23-68 t/h |
| Main Motor Power | 160 kW | 500 kW |
| Ideal Application | Medium-scale filler plant | Large-scale filler plant |
Note: 200 mesh equals approximately 74 microns. Both of these models can be adjusted to this exact fineness.
Both models are supported by Zenith’s global spare parts network. Operators can set the target fineness by adjusting the classifier speed and grinding pressure. In continuous operation, the mills produce a very stable powder, which is essential for making paint filler batches that meet strict quality requirements.

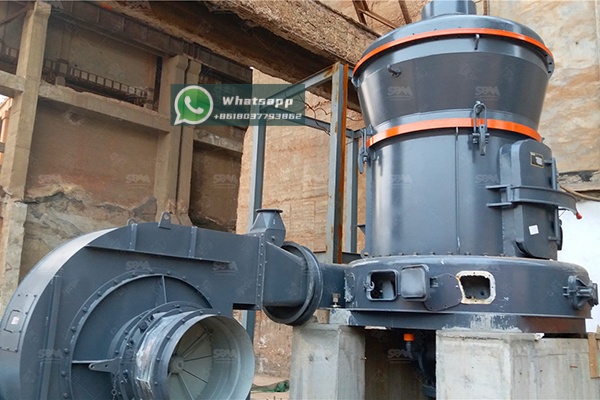

The MTW Trapezium Grinding Mill is a patented machine designed for high productivity and low operating cost. Its trapezium-shaped grinding rollers and rings create a wider grinding surface, improving efficiency by more than 20 percent compared with traditional roller mills. The integrated classifier ensures that the desired fraction is extracted continuously. For the MTW175G model, feed material smaller than 40 mm can be ground into powder between 1.6 mm and 0.045 mm. This range covers 200 mesh easily. The mill also features analytical finger control, an enclosed gearbox, and a modern design that reduces vibration and noise. It is an ideal solution for a new paint filler project in Laos.
The LM Vertical Grinding Mill combines five unit operations into one machine. It can crush, dry, grind, classify, and convey material. The vertical configuration requires only about 50 percent of the floor area of a ball mill, which is a major advantage in congested plant sites. For cement clinker, the LM190K mill has a grinding table diameter of 1900 mm and a capacity range of 23 to 68 tonnes per hour. Its output fineness can be adjusted within 170 to 40 microns. This makes the mill extraordinarily flexible. If the paint filler market later demands a slightly finer or coarser powder, the LM190K can adapt without replacing major components. In addition, the automatic lubrication system and hydraulic pressure system reduce maintenance requirements.
Selecting a grinding mill for cement clinker is mainly a question of capacity and final product specification. If the plant produces 10,000 to 50,000 tonnes of paint filler per year, the MTW175G is a practical and cost-efficient choice. If the target is more than 50,000 tonnes per year, the LM190K provides lower energy consumption per tonne and easier automation. Also consider the feed stream. A crusher may be installed upstream to reduce clinker size. The moisture content of cement clinker is usually low, so no dryer is necessary. However, if the raw material includes mineral additives, the LM vertical mill can dry them inside the same unit.

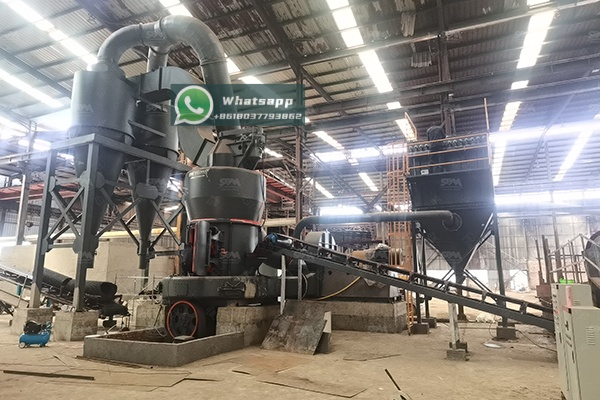

Zenith also offers complete system integration. From the hopper, belt conveyor, magnetic separator, and elevator to the mill, classifier, bag filter, fan, and control panel, every part is selected to maximize uptime. This reduces project risk and helps the end user achieve a smooth commissioning.
The paint industry in Laos is growing because of urban development, new housing, and public works. Most raw materials for paint are imported, which exposes manufacturers to long lead times and high freight costs. A cement clinker grinding mill located near a cement plant in Laos can convert clinker into a valuable filler ingredient. This shortens the supply chain and allows paint makers to maintain smaller inventories. It also has an environmental benefit by reducing the carbon footprint associated with importing heavy filler materials.
In a country like Laos, having reliable equipment is just as important as technical efficiency. Zenith mills are built with heavy-duty castings and world-class bearings. They are designed for continuous operation in demanding environments. In addition, Zenith provides training and spare parts support to help local operators maintain the equipment at peak performance.
Local filler production also creates jobs and technical skills in the region. It encourages the development of small-scale packaging and logistics services. Over time, a local grinding plant can become a hub for supplying not only paint fillers but also other construction powders. This aligns with Laos’s goal of diversifying its economy and strengthening domestic manufacturing.
Grinding cement clinker to 200 mesh for paint filler is a viable business opportunity in Laos. The right grinding mill can turn a simple mineral material into a profitable product that meets the demands of paint formulators. Shanghai Zenith Machinery Co., Ltd., with its advanced MTW Trapezium Grinding Mill and LM Vertical Grinding Mill, offers the technology and experience to make this venture successful. Both products deliver precise fineness control, low energy consumption, and long service life. For any new cement clinker grinding project in Laos, Zenith is a strong partner from planning to production.
