The demand for high-quality cat litter in Iraq has been steadily rising due to increasing pet ownership and a growing awareness of hygiene standards among pet households. Traditional clay-based litters, often imported, are being challenged by locally sourced mineral alternatives that offer better performance at a lower cost. Among these, dolomite—a carbonate mineral composed of calcium magnesium carbonate (CaMg(CO₃)₂)—has emerged as a premium raw material for cat litter production. Dolomite’s natural porosity, high absorbency, and excellent clumping ability make it ideal for controlling odors and moisture. However, to unlock these properties for cat litter, the dolomite must be ground to an ultrafine powder, typically around 1000 mesh (approximately 13 microns). This fineness ensures a smooth texture, rapid liquid absorption, and minimal dust generation—key factors for both cats and their owners.
Iraq’s unique climatic conditions, with hot summers and arid environments, further amplify the need for efficient moisture control. A well-processed dolomite cat litter not only keeps the litter box dry but also reduces the frequency of cleaning, a critical advantage for busy households. To meet this demand, manufacturers in Iraq and the broader Middle East require reliable, energy-efficient grinding equipment capable of consistently producing 1000 mesh dolomite powder. This article explores the technical considerations for such a grinding process and presents state-of-the-art solutions from Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of ore grinding equipment with extensive expertise in ultra-fine powder processing.
Particle size distribution is the single most critical parameter in cat litter performance. Coarse particles (e.g., 20–40 mesh) create rough textures that can irritate a cat’s paws and produce excessive dust. Finer particles, particularly those below 100 mesh, improve clumping but may cause dust clouds when poured. The sweet spot for premium cat litter lies in the 100–200 mesh range for base powder, with a significant fraction below 10 microns to ensure rapid capillary action. For dolomite, grinding to 1000 mesh (D97 ≈ 13 μm) achieves an optimal balance: the powder is fine enough to form tight, solid clumps upon contact with urine, yet coarse enough to limit airborne dust during handling. Moreover, the high surface area of 1000 mesh dolomite enhances odor adsorption, trapping ammonia and other volatile compounds effectively.
From a processing standpoint, reaching 1000 mesh from raw dolomite (which may have a feed size of 10–30 mm) requires a multi-stage grinding circuit. Primary crushing reduces the material to about 20 mm, followed by secondary crushing to 3–5 mm. The final ultrafine grinding stage must deliver a product with D97 ≤ 13 μm, demanding mills with high classification efficiency and low energy consumption. Traditional ball mills or Raymond mills struggle at this fineness due to over-grinding and excessive power use. Advanced vertical roller mills or ultra-fine ring-roller mills, such as those offered by Zenith, are designed specifically for such applications.
Shanghai Zenith Machinery Co., Ltd. has established itself as an excellent manufacturer of ore grinding equipment in China, with remarkable achievements in ultra-fine powder technology. The company’s R&D efforts are focused on developing machines that integrate crushing, grinding, classifying, and drying in a single, compact system. For the Iraqi cat litter industry, Zenith’s portfolio includes several mills capable of achieving 1000 mesh, but two models stand out due to their proven performance in processing non-metallic minerals like dolomite: the XZM Ultrafine Grinding Mill and the LUM Ultrafine Vertical Mill. Both machines are engineered for continuous operation, easy maintenance, and precise control over product fineness.
Below, we present the technical parameters of these two recommended products. Note that the final capacity depends on the hardness and moisture content of the dolomite feed, as well as the desired particle size distribution.

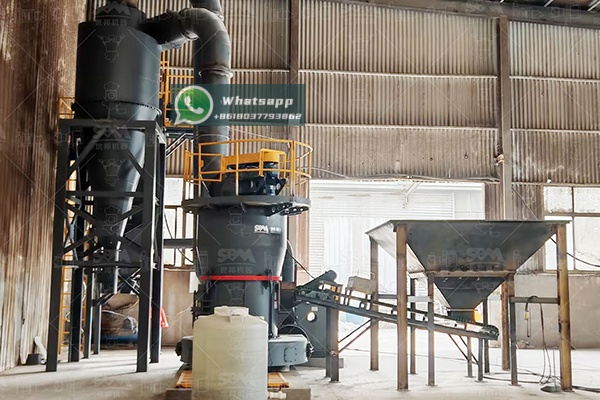

The XZM series is a ring-roller mill that operates on the principle of medium-speed grinding. It features a multi-head classifier that ensures a steep particle size distribution, ideal for achieving 1000 mesh with minimal oversize particles. The mill is particularly suitable for soft to medium-hard materials (Mohs hardness <6), which includes dolomite (Mohs 3.5–4). Its compact footprint and low noise level make it suitable for installations in urban or semi-urban areas in Iraq.
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) | Main Motor Power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325–2500 | 500–4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325–2500 | 5000–25000 | 315 |
Note: For dolomite cat litter production targeting 1000 mesh, the XZM221 model is ideal for small to medium-scale plants (0.5–4.5 t/h), while the larger XZM268 suits industrial-scale operations up to 25 t/h.

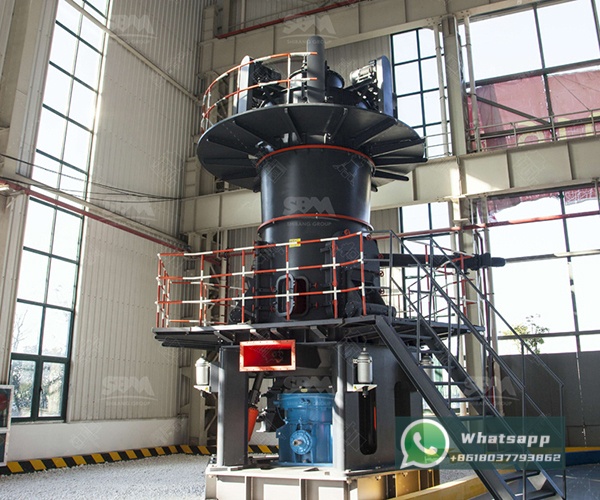

The LUM series is a vertical roller mill that integrates grinding, drying, classifying, and material transportation in one unit. Its unique roller and table design minimizes vibration and noise while maximizing grinding efficiency. The built-in dynamic classifier can be adjusted to produce a D97 value as fine as 5 μm, making the LUM mill an excellent choice for premium cat litter that requires a slightly finer or coarser cut. The LUM series is also known for its low energy consumption per ton of product, which is a critical cost factor for manufacturers in Iraq.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220–250 | 1.6–11.5 | 5–30 |
| LUM1632 | 280–315 | 2.0–13.5 | 5–30 |
| LUM1836 | 355–400 | 2.3–15 | 5–30 |
Note: For 1000 mesh (13 μm), the LUM1525 or LUM1632 can be tuned to achieve D97 = 13 μm with excellent consistency. The capacity range covers 1.6–13.5 t/h, suitable for medium to large production lines.
Both the XZM and LUM mills can achieve 1000 mesh for dolomite, but they differ in operating principles and ideal use cases. The XZM mill is a ring-roller type with a relatively simple structure, making it easier to maintain in regions where skilled technicians may be scarce. Its energy consumption is moderate, but it requires a feed size below 20 mm and a moisture content below 6%. The LUM mill, on the other hand, is a vertical roller mill that can handle slightly larger feed sizes (up to 30 mm) and offers integrated drying, which is beneficial if the dolomite has residual moisture from quarrying. The LUM mill also produces a narrower particle size distribution, which can enhance the uniform quality of the final cat litter.
From an economic perspective, for a plant in Iraq targeting a production capacity of 2–5 t/h of 1000 mesh dolomite, the XZM221 would be a cost-effective solution with lower initial investment. For capacities exceeding 10 t/h, the LUM1525 or LUM1632 provide better energy efficiency and lower operating costs over time. Both machines are backed by Zenith’s global service network, which includes spare parts availability and remote technical support—crucial for operations in Iraq.
To achieve consistent 1000 mesh product, a well-designed process flow is essential. A typical line using Zenith equipment includes:
Iraq’s infrastructure and climate pose specific challenges. High ambient temperatures (often exceeding 45°C in summer) can affect motor cooling and classifier performance. Zenith’s mills are designed with heavy-duty motors and forced-air cooling systems that maintain stable operation even under extreme conditions. Additionally, the presence of fine silica in some dolomite deposits can cause abrasive wear; the XZM and LUM mills use wear-resistant liners and grinding elements made of high-chrome alloys or ceramic composites, extending service intervals.
Furthermore, the Iraqi market values low-dust cat litter. Achieving 1000 mesh with a minimal <5% of particles below 5 μm is critical to avoid dustiness. The advanced dynamic classifiers in both the XZM and LUM mills allow operators to precisely cut off the fine end, ensuring that the product meets export-grade standards. Zenith also offers customized solutions, such as adding a de-dusting system or a surface coating unit, to enhance the litter’s clumping speed and odor control.
As the pet care market in Iraq expands, local production of premium dolomite cat litter offers a competitive edge over imported brands. The key to success lies in selecting a grinding mill that can reliably produce 1000 mesh powder with high efficiency and low downtime. Shanghai Zenith Machinery’s XZM Ultrafine Grinding Mill and LUM Ultrafine Vertical Mill are both proven solutions that meet these requirements. With their robust design, energy-saving features, and adaptability to harsh environments, they empower Iraqi manufacturers to produce world-class cat litter at a lower cost.
For a detailed feasibility study or a plant design tailored to your specific dolomite characteristics and target capacity, contact Zenith’s team of experts. They can provide on-site supervision during installation and commissioning, ensuring a smooth transition to full production. Embrace the future of cat litter manufacturing in Iraq with Zenith’s advanced grinding technology.
Disclaimer: The capacity and fineness data provided are based on laboratory tests and industrial benchmarks. Actual performance may vary depending on material properties and operating conditions. Always consult with Zenith engineers for a final machine selection.
