Dolomite, a naturally occurring calcium magnesium carbonate (CaMg(CO₃)₂), has become an essential mineral in the paper industry. In Egypt, where the paper sector is growing steadily to meet domestic and regional demands, the use of dolomite as a filler and coating pigment offers significant advantages. It enhances paper brightness, opacity, and printability, while reducing production costs compared to traditional calcium carbonate. For Egyptian paper manufacturers targeting a production capacity of 1 to 3 tons per hour (tph) of dolomite powder, selecting the right grinding mill is crucial to achieve consistent quality, energy efficiency, and operational reliability.
This article explores the key considerations for dolomite grinding in the Egyptian paper industry, highlights the optimal mill configurations, and recommends two proven solutions from Shanghai Zenith Machinery Co., Ltd., a leading manufacturer in China’s ore grinding equipment sector.
Egypt possesses abundant dolomite reserves, particularly in the Eastern Desert and along the Nile Valley. The mineral’s high whiteness (typically above 90% ISO brightness), low abrasiveness, and good chemical stability make it an ideal substitute for more expensive pigments. In paper making, dolomite is ground to a fine powder—usually 325 mesh (45 μm) or finer—and used in both alkaline and neutral papermaking processes. Key benefits include:
To meet the strict specifications of the paper industry, dolomite must be ground to a precise particle size distribution (typically D97 ≤ 45 μm) with minimal contamination. The grinding process must also handle the material’s moderate hardness (Mohs 3.5–4) and ensure moisture content below 1%. For a capacity of 1–3 tph, the mill must be compact, energy-efficient, and capable of continuous operation in Egypt’s hot, arid climate. Additionally, maintenance simplicity and local service support are critical for minimizing downtime.
Shanghai Zenith Machinery Co., Ltd. has over three decades of experience in designing and manufacturing advanced grinding equipment. With a strong focus on ultra-fine powder processing, Zenith offers a comprehensive range of mills that are widely used in the minerals, chemicals, and paper industries. The company’s machines are known for their robust construction, high efficiency, and low operating costs. For the specific requirement of 1–3 tph dolomite grinding for paper making in Egypt, two models stand out: the YGM8314 Raymond Mill and the MTW110 Trapezium Grinding Mill. Both can achieve the required fineness and capacity, but they differ in design philosophy and operational features.
The YGM8314 Raymond Mill is a classic pendulum roller mill that has been refined over decades. It is ideal for small to medium-scale production of dolomite powder with fineness ranging from 1.6 mm down to 45 μm (325 mesh). With a capacity of 1.2–4.6 t/h, it perfectly covers the 1–3 tph target. The mill features a compact footprint, easy operation, and low maintenance, making it a cost-effective choice for Egyptian paper mills. Key technical parameters are listed in the table below.
| Parameter | Value |
|---|---|
| Roller Quantity (pcs) | 3 |
| Max. Feed Size (mm) | 20 |
| Discharging Size (mm) | 1.6 – 0.045 |
| Capacity (t/h) | 1.2 – 4.6 |
| Main Motor Power (kW) | 22 |
| Blower Motor Power (kW) | 18.5 |
| Overall Dimension (L×W×H, m) | 4.9×3.2×4.5 |
The YGM8314 is particularly suitable for Egyptian clients who prioritize simplicity and proven technology. Its grinding roller and ring are made of high-manganese steel for durability, and the built-in analyzer classifier ensures uniform product fineness. The mill can be equipped with a bag filter for environmental compliance.

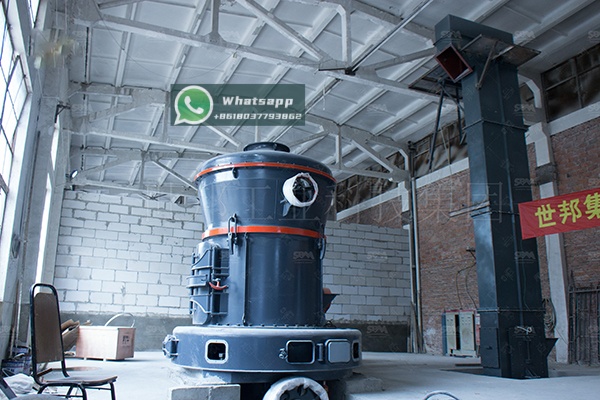

The MTW110 Trapezium Grinding Mill represents the next generation of grinding technology from Zenith. With multiple patents in its structure, it offers a higher capacity range (3–9 t/h) while still being able to operate at the lower end of 1–3 tph through precise speed control. The trapezium-shaped grinding rollers and ring increase the grinding area, boosting efficiency by up to 50% compared to traditional Raymond mills. The MTW110 is also more compact and environmentally friendly, with a sealed gearbox and a centralized lubrication system.
| Parameter | Value |
|---|---|
| Max. Feed Size (mm) | <30 |
| Final Size (mm) | 1.6 – 0.045 |
| Capacity (t/h) | 3 – 9 |
| Main Motor Power (kW) | 55 |
| Fan Motor Power (kW) | 55 |
| Classifier Motor (kW) | 5.5 |
| Overall Dimension (L×W×H, m) | 8.5×8.0×10.6 |
For Egyptian paper makers planning future capacity expansion, the MTW110 provides headroom. Its advanced star rack transmission ensures smooth operation even under variable feed conditions. The mill also comes with an optional hydraulic system for easier maintenance of the grinding roller.
Choosing between the YGM8314 and MTW110 depends on the specific needs of the Egyptian paper mill:
Both mills can produce the fineness required for paper filler (≤45 μm). Zenith’s technical team can also provide customized solutions, including pre-crushing systems, drying units, and automated control panels.
Shanghai Zenith Machinery has a strong network in the Middle East and North Africa, including Egypt. The company offers comprehensive after-sales services: installation supervision, commissioning, operator training, and a reliable supply of spare parts. With a local service center in Cairo, response times are minimized, ensuring that any operational issues are resolved quickly.
For Egyptian paper manufacturers requiring a dolomite grinding mill with a capacity of 1–3 tph, both the YGM8314 Raymond Mill and the MTW110 Trapezium Grinding Mill from Shanghai Zenith Machinery deliver outstanding results. Each mill is engineered to provide high-quality dolomite powder, low energy consumption, and long-term reliability. By partnering with Zenith, Egyptian companies gain access to world-class technology and dedicated support, empowering them to produce superior paper products while optimizing production costs. Contact Zenith’s Egypt representative today to discuss your specific grinding requirements.
