In recent years, the demand for high-quality animal feed materials has increased rapidly in Myanmar. With the livestock and poultry industries growing steadily, the need for mineral-based feed additives such as feldspar powder has become an important part of feed production. Feldspar, a group of rock-forming minerals composed primarily of aluminum silicates combined with potassium, sodium, or calcium, possesses unique physical and chemical properties ideal for enhancing feed quality and nutrient absorption. To achieve the required fineness and purity of feldspar powder, high-performance grinding technology is essential.
Shanghai Zenith Machinery Co., Ltd., a leader in industrial grinding equipment manufacturing in China, offers advanced technology and complete grinding solutions suitable for processing feldspar for animal feed additives. With years of expertise in ultra-fine powder grinding, Zenith’s equipment ensures high efficiency, stability, and cost-effective production for large-scale projects, including a 20-30 TPH feldspar grinding line in Myanmar.
Feldspar plays a vital role in animal nutrition and feed formulations due to its mineral content and physical characteristics. When ground to fine powder, feldspar can serve as a valuable source of useful microelements, contribute to mineral balance, and improve the mechanical characteristics of feed pellets. Moreover, feldspar powder’s natural alkalinity and inert properties help stabilize the feed mixture without affecting active nutrients.
The incorporation of feldspar in feed formulations for poultry, cattle, or aquaculture industries enhances feed texture and contributes to better digestibility. However, achieving the proper particle size distribution is critical — generally below 45 μm — and this depends largely on the choice of grinding technology and mill performance.
Myanmar possesses abundant feldspar resources in regions such as Mandalay and Shan State. For industrial applications, especially feed additive manufacturing, these raw materials must undergo several processing stages: crushing, grinding, classification, and packaging. The grinding process is the key stage that determines output capacity, energy efficiency, and product quality.
For a production capacity of 20–30 tons per hour, reliable and energy-efficient grinding equipment must ensure consistent feeding, stable performance, and high fineness control. Shanghai Zenith Machinery Co., Ltd. offers a range of industrial grinding mills that perfectly suit these requirements, including the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill.

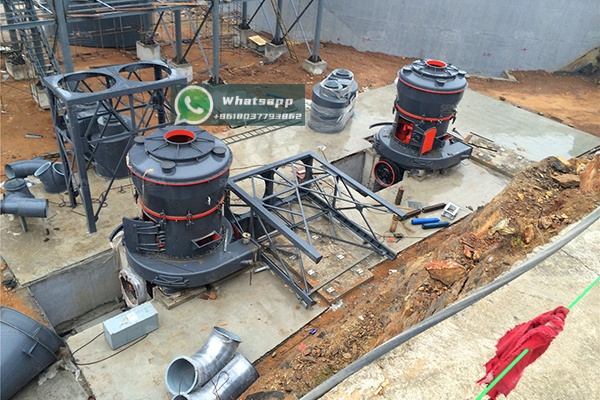

The MTW Trapezium Grinding Mill, one of Shanghai Zenith’s flagship products, features advanced design and optimized structure for efficient material crushing and grinding. It integrates the advantages of roller mills and impact mills to produce fine powder with a narrow size distribution. Its unique bevel gear drive system ensures higher efficiency and stable operation, making it ideal for feldspar processing lines targeting 20–30 TPH output.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW138Z | <35 | 1.6–0.045 | 6–17 | 90 | 110 |
| MTW175G | <40 | 1.6–0.045 | 9.5–25 | 160 | 200 |
| MTW215G | <50 | 1.6–0.045 | 15–45 | 280 | 315 |
For the Myanmar feldspar grinding project, the MTW175G model is highly recommended since its production range (9.5–25 t/h) closely matches the 20–30 TPH capacity target. Its advanced air circulation system and dust collection design also align with environmental requirements in modern feed additive facilities.

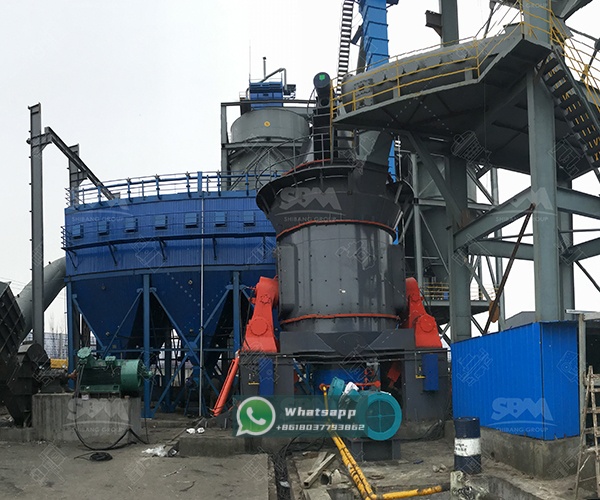

The LM Vertical Grinding Mill integrates multiple operations such as crushing, drying, grinding, powder selection, and conveying—all within one compact system. This machine is particularly suitable for large-scale feldspar grinding since it allows simultaneous drying of feed materials and flexible control over product fineness ranging from 170 μm to 40 μm. With its high efficiency, low power consumption, and minimal maintenance, it becomes an excellent solution for sustainable feldspar grinding projects.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10–28 | 170–40 | <38 | 200 |
| LM190K | 1900 | 23–68 | 170–40 | <45 | 500 |
Considering the target production capacity (20–30 tph), the LM130K model provides the most suitable grinding performance, combining high throughput with precise control of fineness. Its vertical structure saves floor space, and the built-in classifier ensures optimized particle size distribution — both key factors for producing feed-grade feldspar powder efficiently.
The feldspar grinding system typically includes the following process steps:
This process layout ensures continuous, automatic, and energy-efficient operation, meeting modern feed production standards in Myanmar’s growing agricultural market.
Both MTW and LM series mills are designed with sustainability and energy efficiency in mind. The use of frequency-controlled motors, improved dust filtration systems, and intelligent control software helps reduce energy consumption by up to 30% compared to traditional Raymond mills. The equipment ensures almost zero dust emission, matching the environmental protection regulations of Myanmar’s industrial parks.
Additionally, maintenance is simplified through modular designs, allowing operators to quickly replace wear parts and minimize downtime. This reliability adds major value to long-term investment in feed additive production facilities.
By utilizing high-quality grinding mills from Shanghai Zenith Machinery Co., Ltd., feed manufacturers in Myanmar can expect several economic advantages:
These factors combine to create a competitive edge for feed producers in Myanmar, ensuring steady production with sustainable profit margins.
The 20–30 TPH feldspar grinding line for animal feed additives in Myanmar represents an emerging opportunity combining natural resource utilization with advanced industrial technology. Shanghai Zenith Machinery Co., Ltd. offers a comprehensive selection of grinding mills that provide ideal performance and reliability for such projects. Whether utilizing the MTW Trapezium Grinding Mill for refined finished product control or the LM Vertical Grinding Mill for integrated, large-scale continuous operation, Zenith delivers technological innovation backed by global experience.
Through these solutions, Myanmar’s feed additive production can achieve not only increased capacity and higher product quality but also environmentally sustainable growth aligned with modern industrial standards.
