The Indian ceramic tile industry has experienced remarkable growth over the past decade, establishing itself as one of the world’s leading producers and exporters. At the heart of this manufacturing excellence lies the critical process of raw material preparation, particularly the grinding of feldspar to precise specifications. Feldspar, being one of the key fluxing agents in ceramic bodies, requires meticulous processing to achieve the optimal particle size distribution for high-quality tile production. The industry standard of 325 mesh (approximately 45 microns) represents a crucial benchmark that directly impacts tile strength, surface quality, and firing characteristics.
Feldspar serves multiple essential functions in ceramic tile production. As a flux, it lowers the melting temperature of the ceramic body during firing, promoting vitrification and strength development. The particle size distribution of ground feldspar significantly influences several key aspects of tile quality:
The 325 mesh specification has emerged as the industry standard because it represents the ideal balance between grinding efficiency, material performance, and economic viability. Achieving this fineness consistently requires advanced grinding technology specifically designed for mineral processing applications.
Grinding feldspar to 325 mesh presents several technical challenges that must be addressed through proper equipment selection and process optimization. Feldspar minerals vary in hardness (6-6.5 on Mohs scale) and can contain quartz inclusions that are significantly harder, creating uneven wear on grinding components. The abrasive nature of feldspar requires robust construction and wear-resistant materials in grinding mills.
Additionally, the moisture content in raw feldspar can vary significantly depending on mining sources and storage conditions. Excessive moisture can lead to clogging and reduced grinding efficiency, while overly dry material may create dust control challenges. The ideal grinding solution must accommodate these variations while maintaining consistent output quality.
Energy consumption represents another critical consideration. Traditional grinding methods often suffer from low efficiency, resulting in high operational costs. Modern grinding technologies focus on optimizing the energy transfer to the material being ground, minimizing heat generation and maximizing size reduction efficiency.
Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore grinding equipment in China, has made significant achievements in the field of ultra-fine powder grinding. With specialization in the research, development, and production of industrial powder grinding equipment, Zenith offers several advanced solutions perfectly suited for feldspar grinding applications in the Indian tile industry.

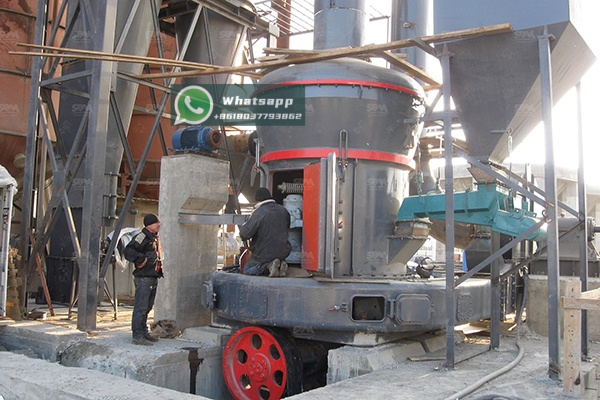

For tile manufacturers seeking reliable and efficient feldspar grinding to 325 mesh, the MTW Trapezium Grinding Mill represents an outstanding choice. This advanced grinding mill incorporates multiple patents and features a compact structure, long service life, and eco-friendly design. Specifically engineered for processing materials with maximum input size of 50mm, it consistently produces final product fineness reaching 0.038mm (400 mesh), easily meeting the 325 mesh requirement for tile production.
The MTW series offers several distinct advantages for feldspar processing:
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Recommended for Plant Size |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 | Small to Medium |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 | Medium |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 | Large |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 | Extra Large |
For Indian tile manufacturers, the MTW175G and MTW215G models are particularly well-suited, offering the capacity and reliability needed for continuous production environments. The ability to consistently achieve 325 mesh fineness while handling the abrasive nature of feldspar makes these mills ideal for ceramic applications.
For manufacturers producing high-end ceramic tiles where exceptional surface quality and precise control over material properties are paramount, the XZM Ultrafine Grinding Mill offers unparalleled performance. This advanced mill is specifically designed for superfine powder production and can achieve output fineness ranging from 325 to 2500 mesh, providing exceptional flexibility for various tile grades and specifications.
The XZM series incorporates several innovative features that make it particularly suitable for feldspar grinding:
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) | Main Motor Power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 | 315 |
The XZM268 model is particularly recommended for large-scale tile manufacturing facilities in India that require high-volume production of precisely ground feldspar. Its ability to consistently deliver 325 mesh product while accommodating variations in raw material characteristics makes it a valuable asset for quality-conscious manufacturers.
Selecting the appropriate grinding technology involves careful consideration of both capital investment and operational costs. While initial equipment costs are important, the long-term operational efficiency, maintenance requirements, and energy consumption typically have a greater impact on overall production economics.
Modern grinding mills from Zenith offer significant advantages in operational efficiency:
For Indian tile manufacturers, these economic benefits translate directly to improved competitiveness in both domestic and international markets. The ability to produce high-quality tiles at competitive costs is essential in an industry characterized by intense global competition.
Successful implementation of advanced feldspar grinding technology requires careful planning and execution. Indian tile manufacturers should consider the following approach:
The evolution of grinding technology continues to address the changing needs of the tile industry. Several trends are likely to shape future developments:
Shanghai Zenith Machinery remains at the forefront of these developments, continuously innovating to provide the ceramic industry with cutting-edge grinding solutions that enhance productivity, reduce costs, and improve product quality.
The selection of appropriate feldspar grinding technology is a critical decision for Indian tile manufacturers aiming to compete effectively in global markets. Achieving consistent 325 mesh fineness with high efficiency and reliability requires advanced grinding solutions like the MTW Trapezium Grinding Mill and XZM Ultrafine Grinding Mill from Shanghai Zenith Machinery. These technologies offer the performance, durability, and economic operation necessary for sustainable success in the competitive tile industry.
By investing in proper grinding equipment and implementing best practices in operation and maintenance, Indian tile producers can significantly enhance their product quality, reduce production costs, and strengthen their position in both domestic and international markets. The expertise and technological leadership of companies like Shanghai Zenith Machinery provide valuable partnerships for manufacturers seeking to optimize their raw material processing operations.
