With the increasing focus on environmental protection and sustainable industrial development, the need for effective desulfurization processes has grown dramatically in many parts of the world. Pakistan, as a developing country with rapid industrial construction and power generation demands, faces mounting pressure to control sulfur dioxide (SO₂) emissions from power plants, cement factories, and other industrial sources. One of the most efficient solutions to address this challenge is the application of an advanced granite grinding mill for desulfurization, capable of producing high-quality limestone or granite powder used as desulfurizing agents.
Shanghai Zenith Machinery Co., Ltd. is a pioneer in manufacturing high-performance grinding equipment, offering a wide range of mills tailored for various industrial applications. With many years of experience and extensive technological innovation, the company provides complete grinding solutions that ensure precision, energy efficiency, and environmental protection. This article will focus on the technical and operational aspects of a granite grinding mill for a 5–10 TPH desulfurization process in Pakistan, as well as recommend suitable Zenith models for such an application.
In industrial flue gas desulfurization (FGD) systems, limestone, dolomite, or even granite powders are used to capture and neutralize sulfur oxides released from fossil fuel combustion. Typically, a finely ground powder—usually below 0.045 mm—is required to ensure high reactivity with sulfur dioxide. A stable and efficient grinding system, therefore, lies at the core of a successful desulfurization process.
Granite, due to its natural hardness and abundance in Pakistan, serves as a viable material for producing fine powder suitable for FGD. However, its hardness demands high-quality equipment that ensures both throughput and fineness. Modern grinding mills from Shanghai Zenith, such as the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill, provide excellent solutions for this requirement.
This hypothetical project focuses on constructing a 5–10 tons per hour desulfurization grinding plant in Pakistan. The main target is to produce fine granite or limestone powder with a finished fineness of 325–600 mesh for use in flue gas treatment units in thermal power plants and cement production facilities.

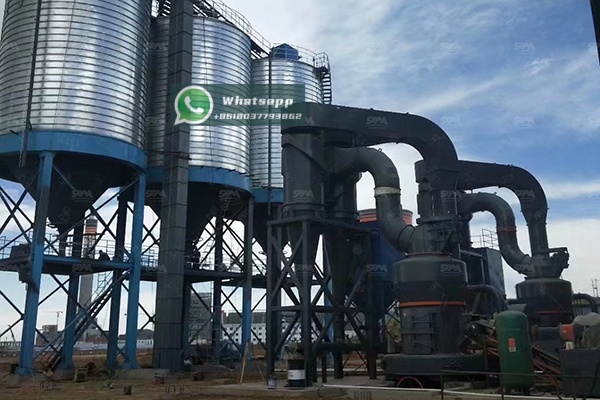

The system layout involves raw material feeding, crushing, grinding, classification, and dust collection. The desired solution must ensure continuous production, low energy consumption, stable operation, and compliance with environmental standards. Zenith’s grinding technologies satisfy these technical and operational demands efficiently.
Given the production capacity range of 5–10 TPH, two of Shanghai Zenith’s products are ideally suited for the desulfurization process—namely the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill. Each offers distinct technical advantages, making them optimal for different plant conditions.

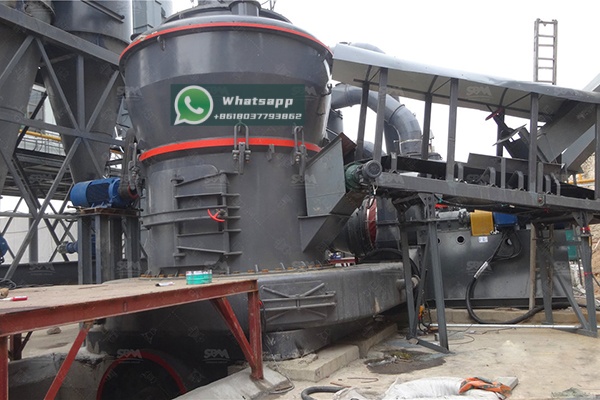

The MTW Trapezium Grinding Mill is designed for efficient, clean, and high-precision grinding performance. It incorporates advanced technology from Europe and has become a benchmark in the grinding equipment industry. With a feed size of up to 50 mm and a final product range from 1.6 mm down to 0.045 mm, this mill is ideal for FGD powder preparation.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110Z | <30 | 1.6–0.045 | 3–10 | 55 | 55 |
| MTW138Z | <35 | 1.6–0.045 | 6–17 | 90 | 110 |
In a 5–10 TPH plant, the MTW110Z model would be the most suitable. It ensures uniform powder fineness and stable performance. Its energy-saving design offers greater efficiency while reducing operational cost—an important factor in Pakistan’s developing industrial economy.
The LM Vertical Grinding Mill is an integrated system that combines crushing, drying, grinding, and dust collection—all in a single unit. It provides a compact layout and offers excellent control over fineness and moisture, making it an excellent choice when the feed material has variable moisture content or when space constraints are critical.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10–28 | 170–40 | <38 | 200 |
For projects requiring higher stability and better integration with drying and dust collection stages, the LM130K would be ideal. Its vertical structure reduces footprint requirements by up to 50% compared with traditional ball milling systems. This advantage is particularly valuable in Pakistan, where industrial land utilization and environmental standards are becoming increasingly stringent.
Both the MTW Trapezium and LM Vertical Grinding Mills from Zenith share several technological benefits:
Energy efficiency and environmental control are vital for desulfurization processes. Pakistan’s industrial sectors are increasingly seeking cleaner and more sustainable energy consumption models. Zenith’s grinding mills feature intelligent control systems and dust filtration technology that ensures minimal particulate emission. Furthermore, optimized grinding structures reduce vibration and noise, thus improving the working environment within the plant.
The total investment for a 5–10 TPH desulfurization plant includes equipment, civil foundation, and auxiliary systems. With Zenith’s experience and optimized design, the overall system cost can be minimized while maintaining high output performance. Maintenance is simplified through modular component designs, and spare parts are readily available due to Zenith’s global service network. This ensures operational continuity and long-term economic return for Pakistani enterprises.
The desulfurization process based on granite or limestone powders can be expanded into other fields, including cement additive production, gypsum synthesis, and fine mineral filler manufacturing. Using advanced grinding technology from Shanghai Zenith, Pakistani industries can explore multi-purpose applications while maintaining environmental compliance.
In conclusion, for a 5–10 TPH desulfurization grinding project in Pakistan, Shanghai Zenith Machinery Co., Ltd. provides world-class technological solutions supported by reliable equipment such as the MTW Trapezium Grinding Mill and LM Vertical Grinding Mill. Each model offers advantages in efficiency, energy savings, and environmental protection, making them ideal choices for the evolving industrial needs in Pakistan. With Zenith’s expertise and comprehensive technical support, local industries can achieve greater productivity, lower operational costs, and contribute to cleaner air and sustainable development.
Shanghai Zenith Machinery Co., Ltd. remains committed to innovation, quality, and service excellence, continuing to develop advanced industrial grinding solutions for global partners seeking efficient ore and mineral processing technologies.
