Côte d’Ivoire, also known as Ivory Coast, is one of West Africa’s fastest-growing economies, driven by expanding mining activities, oil and gas exploration, and infrastructure development. All of these sectors rely heavily on efficient drilling operations, and every drilling operation depends on a well-designed drilling mud system. Drilling mud, or drilling fluid, is a vital component of the drilling process: it cools and lubricates the drill bit, carries rock cuttings to the surface, suspends cuttings when circulation stops, stabilizes the borehole wall, and controls downhole formation pressure. To formulate stable and effective drilling fluids, operators need fine, inert, and carefully classified mineral powders. Ground granite has become an increasingly practical and economical choice, especially in regions with abundant local granite quarries. A purpose-built granite grinding mill for drilling mud in Ivory Coast with a capacity of 20-30 tph can transform this abundant natural resource into a high-value drilling fluid additive.
Granite is an igneous rock composed mainly of quartz, feldspar, and mica. When ground to the proper particle size, granite powder exhibits high density, low chemical reactivity, excellent thermal stability, and good availability. In drilling mud formulations, fine granite powder can increase mud density, improve filter cake quality, and help seal permeable formations. It is particularly useful in non-reactive and water-based mud systems where a dense inert solid is required. However, granite is a hard and abrasive material with a Mohs hardness of approximately 6 to 7, and it contains significant silica. This makes grinding more challenging than softer minerals such as barite or bentonite. The grinding equipment must therefore feature robust construction, wear-resistant grinding elements, and efficient classification to produce a consistent powder. For most drilling mud applications, the target fineness is in the range of 200 mesh to 325 mesh, approximately 74 microns to 45 microns. A 20-30 tph granite grinding plant must maintain stable throughput while producing this fine, uniform product.
Designing a granite grinding mill system for drilling mud requires careful attention to several factors. First, the extreme hardness and abrasiveness of granite demand heavy-duty grinding rollers, tables, and internal wear liners. Second, the moisture content of the feed can vary, especially in Ivory Coast where humidity is high and seasonal rains are common. The grinding system should be capable of drying the material in situ or delivering a feed with controlled moisture. Third, the classifier must be precise and adjustable, because drilling mud specifications require a narrow particle size distribution. Oversized particles can damage pumps or accumulate in the mud system, while excessive ultra-fines may alter viscosity. Fourth, energy efficiency is critical in a 20-30 tph operation; lower energy consumption directly improves project profitability. Finally, environmental compliance is increasingly important, so dust collection, noise suppression, and sealed operation are necessary features of the mill.
Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China, with a strong reputation in the field of ultra-fine powder grinding. The company specializes in the research, development, and production of industrial powder grinding equipment and related devices. Its main products include MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. For the specific requirement of a granite grinding mill for drilling mud in Ivory Coast at 20-30 tph, Zenith offers two particularly well-suited solutions: the LM Vertical Grinding Mill and the MTW Trapezium Grinding Mill. Both are proven in abrasive mineral applications and can be configured with precision classifiers to deliver the particle size required for drilling fluids.

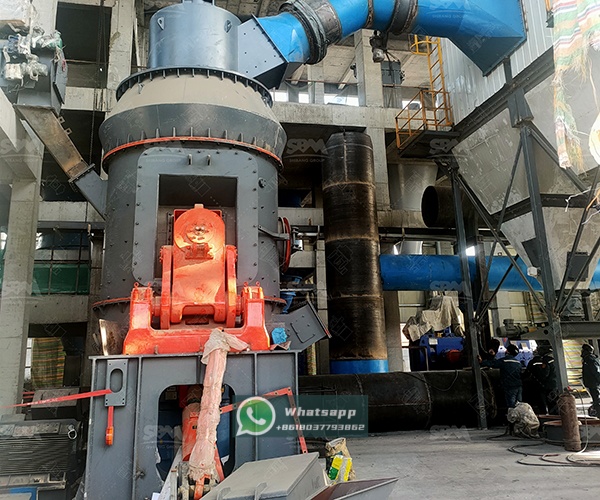

The LM Vertical Grinding Mill integrates crushing, grinding, drying, powder selection, and material conveying into a single machine. It has a small occupational area, produces a fine final powder, and offers an eco-friendly production solution. For a 20-30 tph granite grinding plant in Ivory Coast, the LM190K model is an excellent match. It is designed to handle material with a maximum feed size of below 45 mm and delivers a final fineness of 170 to 40 microns, ideally suited for drilling mud fillers. The vertical grinding mechanism uses a rotating table and hydropneumatic-pressured rollers; because the rollers contact the material bed directly, grinding efficiency is high and energy consumption is lower than many other systems. The dynamic classifier ensures stable particle size distribution, while the integrated drying system uses hot air to eliminate surface moisture from granite feed, which is especially helpful in tropical climates.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor Power (kW) |
|---|---|---|---|---|---|
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |

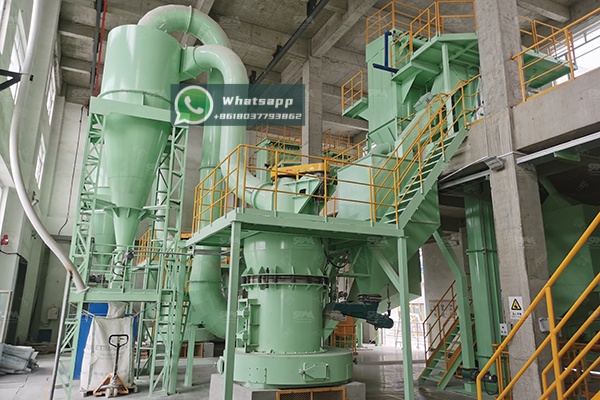

The MTW Trapezium Grinding Mill is another excellent option for granite grinding for drilling mud. It is a grinding mill with multiple patents, known for its compact structure, long service life, and eco-friendly design. The MTW series is suitable for processing materials with a maximum input size of up to 50 mm and can produce a final product as fine as 0.038 mm. For the required capacity of 20-30 tph, the MTW215G model provides a capacity range of 15 to 45 t/h, making it flexible enough to meet both baseline production and peak demand. The final product size can be adjusted from 1.6 mm down to 0.045 mm, and with the optional high-efficiency classifier the mill can produce material suitable for drilling mud applications. The trapezium-shaped grinding ring and roller surfaces increase the grinding area and improve grinding efficiency, while the built-in dust collection and noise reduction features support safe and environmentally responsible operation.
| Model | Max Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor Power (kW) | Fan Motor Power (kW) |
|---|---|---|---|---|---|
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 | 315 |
A complete granite grinding system for drilling mud production in Ivory Coast typically includes a primary jaw crusher, a vibrating feeder, a bucket elevator, a raw material silo, the main grinding mill, a baghouse dust collector, a product silo, and a centralized control system. In the process, granite blocks are first crushed to a size below approximately 45 mm. The crushed material is then conveyed to the mill feed hopper. Inside the mill, granite is ground by rotating rollers and a grinding table. A stream of air moves the ground powder upward to an integral dynamic classifier. Particles that meet the required fineness pass through the classifier, while coarse particles return to the grinding zone for further reduction. The fine powder is collected in a bag filter and transported to the finished product silo. This closed-loop system minimizes dust emissions, maximizes safety, and ensures a consistent quality of granite powder for drilling mud.
Shanghai Zenith Machinery Co., Ltd. has extensive experience in supplying ore grinding equipment for challenging materials around the world. The LM Vertical Grinding Mill and MTW Trapezium Grinding Mill are particularly well suited to granite because their heavy-duty construction and optimized grinding geometries reduce wear and extend service life. Both mills are energy efficient, compact, and capable of high throughput in a relatively small footprint. In Ivory Coast, where operational costs and environmental controls are increasingly important, these advantages translate directly into lower cost per tonne and better project returns. Furthermore, Zenith offers comprehensive technical support, parts supply, and after-sales service, helping operators maintain stable production for years.
A granite grinding mill for drilling mud in Ivory Coast at 20-30 tph is a significant investment, and selecting the right equipment is essential to ensure consistent product quality and reliable operation. The LM190K Vertical Grinding Mill and the MTW215G Trapezium Grinding Mill are both excellent choices, providing the capacity, fineness flexibility, and durability required for grinding granite into drilling mud additives. With Zenith’s proven technology, efficient classification, and integrated drying, Ivory Coast operators can turn locally available granite into a valuable and competitive drilling material while reducing import dependence and supporting the country’s growing energy, mining, and infrastructure sectors. For any new project in West Africa, Shanghai Zenith Machinery Co., Ltd. is a professional and reliable partner for complete grinding solutions.
