South Africa is home to a robust and diverse foundry industry, serving sectors such as mining, automotive, rail, and heavy machinery. Casting sand, also known as foundry sand, is a critical material in metal casting processes. It forms the molds and cores into which molten metal is poured. While silica sand is the most common base material, gypsum-based binders and gypsum sand systems are gaining attention for their unique advantages, particularly in precision casting and where reduced casting defects are required. Gypsum (calcium sulfate dihydrate) can be ground and blended with additives to produce casting sand mixtures that offer excellent surface finish, dimensional stability, and collapsibility. For South African foundries looking to produce 3 to 5 tonnes per hour (tph) of processed gypsum casting sand, selecting the right grinding mill is essential. Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of ore grinding equipment, offers proven solutions tailored to this capacity range.
Gypsum is a soft sulfate mineral with a Mohs hardness of 2. It is widely available and relatively inexpensive. In foundry applications, gypsum is often used as a binder in sand molds. When mixed with water, gypsum re-crystallizes and hardens, providing strength to the mold. After casting, the gypsum-bonded sand can be easily broken down, which improves shakeout and reduces disposal costs. Additionally, gypsum-bonded molds can produce castings with smooth surfaces and fine details. However, the performance of gypsum in casting sand depends heavily on its particle size distribution. If the gypsum is too coarse, the mold surface may be rough; if it is too fine, permeability may suffer, leading to gas defects. Therefore, controlled grinding is a vital step. A typical target fineness for gypsum casting sand may range from 0.045 mm to 0.5 mm (about 35 to 325 mesh), depending on the specific casting process. The 3-5 tph capacity requirement is well-suited to medium-scale foundry operations, making equipment selection a matter of balancing throughput, fineness, and energy consumption.
When designing a gypsum grinding circuit for casting sand at 3-5 tph, several factors must be considered. First, the feed size of raw gypsum may vary from 0 to 30 mm, depending on the source. The mill must be capable of handling such feed without frequent blockages. Second, the final product fineness must be adjustable to meet different casting sand specifications. Third, the system should be energy-efficient and reliable, as foundries often operate continuously. Fourth, dust control and environmental compliance are important, especially in South Africa where regulations are becoming stricter. Finally, the equipment should be easy to maintain and have a long service life. Shanghai Zenith Machinery Co., Ltd. specializes in industrial powder grinding equipment and has developed a range of mills that meet these demands. Among their products, the MTW Trapezium Grinding Mill and the MTM Medium-Speed Grinding Mill are particularly suitable for 3-5 tph gypsum grinding for casting sand.

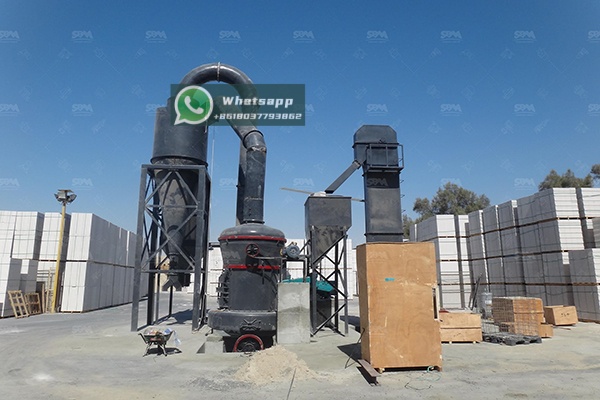

The MTW Trapezium Grinding Mill is a flagship product of Shanghai Zenith. It incorporates multiple patents and features a compact structure, long service life, and eco-friendly design. For gypsum casting sand production at 3-5 tph, the MTW110 and MTW110Z models are ideal. They can process materials with a maximum input size of less than 30 mm and produce a final product ranging from 1.6 mm down to 0.045 mm. This wide range allows foundries to adjust the particle size distribution of the gypsum sand to suit different casting requirements. The MTW mill uses a bevel gear integral transmission, internal thin oil lubrication system, and curved blade design, which improve grinding efficiency and reduce wear. The classifier is easy to adjust, ensuring precise control of the final fineness. Additionally, the mill is equipped with a pulse dust collector, meeting strict environmental standards. The capacity of the MTW110 is 3-9 t/h, and the MTW110Z is 3-10 t/h, both comfortably covering the 3-5 tph target. The main motor power is 55 kW, and the fan motor is also 55 kW, resulting in moderate energy consumption. For a South African foundry, this means reliable production with manageable operating costs.
| Model | Max. Feed Size (mm) | Final size (mm) | Capacity (t/h) | Main motor (kW) | Fan motor (kW) |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 | 55 |
| MTW110Z | <30 | 1.6-0.045 | 3-10 | 55 | 55 |
For foundries that require an alternative with a smaller footprint or different operational characteristics, the MTM Medium-Speed Grinding Mill is an excellent choice. The MTM mill adopts world-leading powder processing technology and is an ideal substitute for traditional mills like the Raymond Mill. It features an upgraded structure, higher efficiency, and energy-saving production. The MTM100 model has a capacity of 3-8 t/h, which perfectly matches the 3-5 tph requirement. It has 4 ring rolls and can accept a maximum feed size of less than 25 mm. The main unit motor power is 37 kW, making it more energy-efficient than some larger models. The MTM mill uses a unique grinding roller and ring design, which increases grinding pressure and improves output. The classifier is driven by a variable frequency motor, allowing precise adjustment of product fineness. Like the MTW mill, the MTM mill can produce gypsum powder from 1.6 mm down to 0.045 mm. This flexibility is essential for casting sand applications where the optimal particle size may vary. The MTM100 is compact, easy to install, and requires minimal maintenance. For South African foundries with limited space or those seeking a cost-effective solution, the MTM100 is a strong contender.
| Name | Ring roll number (pcs) | Max. feed size (mm) | Output (t/h) | Main unit motor power (kW) |
|---|---|---|---|---|
| MTM100 | 4 | <25 | 3-8 | 37 |
South Africa has specific conditions that influence equipment selection. The country has a well-developed mining and industrial base, but it also faces challenges such as fluctuating electricity supply and rising energy costs. Therefore, energy-efficient grinding mills are highly valued. Both the MTW and MTM mills from Shanghai Zenith are designed with energy-saving features. The MTW mill’s internal thin oil lubrication system reduces friction, while the MTM mill’s optimized roller and ring geometry lowers power consumption per tonne of product. Moreover, South African foundries often need to process local gypsum, which may have varying moisture content. The MTW and MTM mills can handle materials with moderate moisture, and they can be equipped with drying systems if necessary. Dust emissions are another concern. Shanghai Zenith mills come with advanced dust collectors, ensuring compliance with South African environmental regulations. Finally, after-sales support is crucial. Shanghai Zenith has a global service network and can provide spare parts, technical assistance, and training to South African customers. This reduces downtime and ensures smooth operation.
When choosing between the MTW110/MTW110Z and the MTM100, several factors should be considered. The MTW mill generally offers higher capacity and a slightly wider fineness range, making it suitable for foundries that may want to expand production in the future. The MTW110Z, for example, can produce up to 10 t/h, providing a buffer above the 3-5 tph target. The MTM100, on the other hand, has a lower main motor power (37 kW vs. 55 kW), which translates to lower energy costs per tonne. It is also more compact and may be easier to integrate into existing production lines. For a foundry that strictly needs 3-5 tph and prioritizes energy efficiency, the MTM100 is an excellent choice. For a foundry that anticipates growth or requires more flexibility in final product size, the MTW110 or MTW110Z is preferable. In both cases, Shanghai Zenith provides comprehensive technical support to help customers select the right model, design the grinding circuit, and optimize operation.

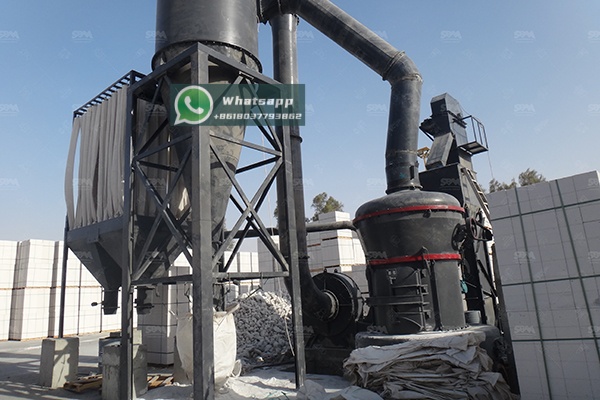

Installing a gypsum grinding mill for casting sand in South Africa requires careful planning. The mill should be located close to the gypsum storage and the sand mixing area to minimize material handling. A covered area is recommended to protect the equipment from rain and dust. The foundation must be solid to reduce vibration. Electrical supply should be stable; if the grid is unreliable, a backup generator may be considered. The grinding circuit typically includes a jaw crusher or hammer mill for primary crushing, a bucket elevator, a silo, a feeder, the grinding mill, a classifier, a cyclone, a pulse dust collector, and a screw conveyor. Shanghai Zenith can provide complete turnkey solutions, including all auxiliary equipment. Operational best practices include regular inspection of grinding rollers and rings, maintaining proper lubrication, and monitoring the classifier settings. With proper care, the MTW or MTM mill can operate for many years with minimal downtime.
Producing gypsum casting sand at 3-5 tph in South Africa is an achievable and profitable endeavor with the right grinding equipment. Shanghai Zenith Machinery Co., Ltd. offers two outstanding solutions: the MTW Trapezium Grinding Mill (MTW110/MTW110Z) and the MTM Medium-Speed Grinding Mill (MTM100). Both are designed for efficiency, reliability, and environmental compliance. The MTW series provides higher capacity and flexibility, while the MTM series offers compactness and lower energy consumption. By selecting the appropriate mill and leveraging Shanghai Zenith’s expertise, South African foundries can produce high-quality gypsum casting sand that meets the demands of modern metal casting. For more information or to request a quotation, please contact Shanghai Zenith Machinery Co., Ltd. today.
