In Ivory Coast, rapid urbanization, agricultural expansion, and industrial development are placing greater pressure on water resources. Municipal utilities, mining operations, and food processing plants increasingly need effective and affordable water treatment solutions. One material that has gained attention in this sector is gypsum, especially when it is ground to 600 mesh. Fine gypsum powder can act as a source of calcium and sulfate, support coagulation and flocculation, assist in fluoride and heavy metal removal, and help stabilize pH in certain treatment processes. To produce the required fineness consistently, a reliable grinding mill is essential. Shanghai Zenith Machinery Co., Ltd. offers advanced grinding equipment that can produce 600 mesh gypsum powder for water treatment projects in Ivory Coast and across West Africa.
Gypsum, or calcium sulfate dihydrate (CaSO4·2H2O), is a widely available and low-cost mineral. In water treatment, it is used for several purposes. First, it can be added to water as a calcium source. Calcium helps precipitate fluoride as calcium fluoride, which is important in regions where groundwater contains naturally high fluoride levels. Second, gypsum can improve coagulation when used with alum or iron salts. The sulfate ions may help destabilize colloidal particles, while calcium ions can reduce the negative charge on suspended solids. This can lead to faster floc formation and clearer treated water. Third, gypsum can be used to adjust the ionic strength and pH of water in specific industrial processes. In acid mine drainage treatment, gypsum addition can help neutralize acidity and promote the precipitation of metals. Finally, gypsum can be used in sludge conditioning, improving dewatering performance and reducing disposal costs.
For water treatment in Ivory Coast, these benefits are directly relevant. Many communities rely on groundwater, surface water, or a mix of both. Industrial zones around Abidjan, San Pedro, and Bouake generate wastewater that requires chemical treatment before discharge. Agricultural runoff may carry fertilizers and suspended solids. In all these cases, a well-graded gypsum powder can be a practical and economical treatment additive.
Particle size is one of the most important factors in water treatment chemistry. A 600 mesh powder has an approximate particle size of 20 to 25 microns. This fine size provides a large specific surface area. When gypsum is added to water, a larger surface area means faster dissolution and more rapid reaction with target ions. For fluoride removal, for example, finer gypsum can release calcium ions more quickly and increase the efficiency of calcium fluoride precipitation. For coagulation support, fine particles disperse more evenly and can interact with colloids more effectively. As a result, treatment plants may use less gypsum to achieve the same result, reducing chemical costs and sludge volume.
However, 600 mesh is not the finest possible powder. It is a balance between reactivity and practical handling. Ultra-fine powders below 10 microns can create dust, flow poorly, and be difficult to feed into treatment systems. A 600 mesh product is fine enough for high reactivity but still manageable with standard screw feeders, slurry mixers, and dosing equipment. This makes it an ideal specification for many water treatment applications in Ivory Coast.
Gypsum is a relatively soft mineral with a Mohs hardness of about 2. It is not highly abrasive compared with quartz or feldspar. However, grinding gypsum to 600 mesh still presents several challenges. Gypsum can contain moisture, which may cause sticking and clogging in mills and classifiers. It can also dehydrate if the grinding temperature is too high, changing from dihydrate to hemihydrate or anhydrite. This can affect the chemical behavior of the final product in water treatment. Therefore, the grinding system must control temperature, airflow, and residence time. It must also provide efficient classification to ensure that the final powder meets the 600 mesh specification with a narrow particle size distribution.
In Ivory Coast, the humid tropical climate adds another challenge. Raw gypsum stored in open or poorly ventilated areas can absorb moisture. A proper grinding plant should include covered storage, controlled feed, and, if necessary, a drying step before grinding. Dust collection is also essential to protect workers and the environment. Shanghai Zenith grinding mills are designed with these requirements in mind, offering stable operation, efficient classification, and reliable dust control.
Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in the research, development, and production of industrial powder grinding equipment. Its main products include MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. For 600 mesh gypsum production for water treatment, two product lines are especially suitable: the LM Vertical Fine-powder Mill Series and the XZM Ultrafine Grinding Mill.

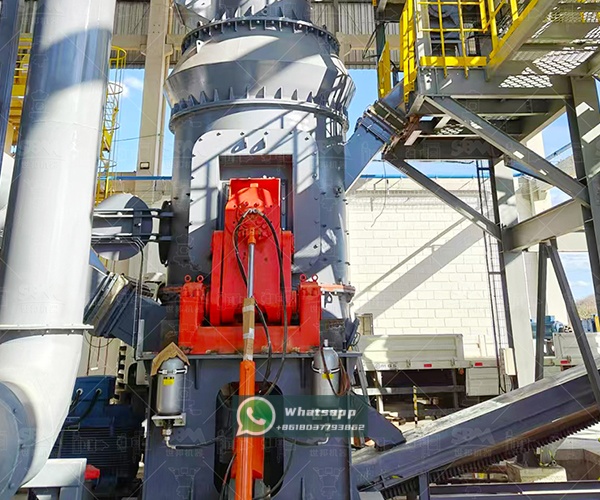

The LM Vertical Fine-powder Mill Series is an excellent choice for producing 325 to 600 mesh gypsum powder. It integrates crushing, grinding, powder selection, drying, and material conveying into a single system. This compact design reduces civil construction costs and saves space, which is important for water treatment plants and industrial sites in Ivory Coast. The mill uses a vertical grinding roller and grinding plate. Material is fed onto the rotating plate and ground by rollers. Hot air or ambient air enters the mill and carries the ground powder to the classifier. The classifier rejects coarse particles and returns them for further grinding. The finished powder is collected by a dust collector. This closed-loop system provides high efficiency and low dust emission.
For small to medium water treatment operations, the LM130X-GX is a strong recommendation. It has a 1300 mm plate diameter, a capacity of 4 to 12 tons per hour, and a main motor of 220 kW. It can produce powder in the 325 to 600 mesh range, making it ideal for 600 mesh gypsum. For larger projects, the LM220X-GX offers a 2200 mm plate diameter, a capacity of 15 to 30 tons per hour, and a main motor of 560 kW. Both models are designed for continuous operation, easy maintenance, and low energy consumption per ton of product.
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (D97) | Main motor (kW) |
|---|---|---|---|---|
| LM130X-GX | 1300 | 4-12 | 325-600 mesh | 220 |
| LM220X-GX | 2200 | 15-30 | 325-600 mesh | 560 |
For applications that require even finer powder or greater flexibility, the XZM Ultrafine Grinding Mill is an excellent alternative. The XZM mill is widely used for superfine powder production. It is suitable for grinding soft or medium-hard materials with moisture content below 6 percent. It can achieve an output fineness of 325 to 2500 mesh, so 600 mesh is well within its capability. The XZM221 has a working diameter of 800 mm, a maximum feed size of 20 mm, an output of 500 to 4500 kg/h, and a main motor of 75 kW. The XZM268 has a working diameter of 1680 mm, an output of 5000 to 25000 kg/h, and a main motor of 315 kW. When fitted with the appropriate classifier, the XZM mill can produce a sharp 600 mesh product with high consistency.
The XZM series is particularly useful when a water treatment plant needs to test different gypsum fineness levels or when the product will be blended with other fine powders. Its intelligent control system and efficient dust collection make it a reliable choice for environmentally sensitive areas. However, for a dedicated 600 mesh gypsum line, the LM Vertical Fine-powder Mill often provides lower operating costs and higher capacity. The final choice depends on project scale, budget, and product requirements.
| Model | Working diameter (mm) | Max feed size (mm) | Final size (mesh) | Output (kg/h) | Main motor power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 | 315 |
A complete 600 mesh gypsum grinding line typically includes the following stages: raw material storage, crushing, drying, grinding, classification, dust collection, and product packing. In Ivory Coast, the design should consider the high humidity and rainy season. Raw gypsum should be stored under cover. A jaw crusher or hammer mill can reduce large gypsum lumps to less than 30 mm before grinding. If the raw material moisture is above 6 percent, a rotary dryer or hot air furnace should be used. The LM Vertical Fine-powder Mill can combine drying and grinding in one unit, which simplifies the flowsheet. The classifier should be adjustable so that the final product can be controlled at 600 mesh. A pulse jet bag filter should be installed to capture dust and maintain a clean working environment. Finally, the finished powder should be packed in moisture-proof bags or stored in silos with dehumidification.
Electrical supply is another important factor. The LM130X-GX requires a 220 kW main motor, while the LM220X-GX requires 560 kW. The plant should have a stable power supply or a generator backup. Maintenance should be planned according to the local conditions. Regular inspection of grinding rollers, plates, and classifiers will ensure long service life. Shanghai Zenith provides technical support, spare parts, and training to help customers in Ivory Coast operate their grinding lines efficiently.
Producing 600 mesh gypsum locally in Ivory Coast offers significant economic and environmental benefits. Importing fine gypsum powder is expensive because of freight, handling, and packaging. By installing a local grinding mill, water treatment plants and chemical suppliers can reduce costs and secure a stable supply. Local production also creates jobs and supports industrial development. From an environmental perspective, a modern grinding plant with efficient dust collection minimizes air pollution. The use of gypsum in water treatment can reduce the need for more expensive chemicals and can improve sludge dewatering, lowering disposal volume. In regions affected by fluoride or acidic wastewater, fine gypsum can be part of a sustainable treatment strategy.
Shanghai Zenith is committed to eco-friendly design. Its grinding mills are engineered to reduce energy consumption, noise, and dust. The LM Vertical Fine-powder Mill, for example, uses a closed-loop system and advanced classifier technology to achieve high efficiency. The XZM Ultrafine Grinding Mill also features intelligent control and reliable sealing. These features help customers in Ivory Coast meet environmental regulations and community expectations.
Shanghai Zenith Machinery Co., Ltd. is a leading manufacturer of ore grinding equipment in China. The company has extensive experience in ultra-fine powder grinding and has developed multiple patented technologies. Its product range covers almost every stage of powder processing, from coarse grinding with hammer mills and ball mills to fine grinding with Raymond mills and MTM mills, and ultra-fine grinding with LUM and XZM mills. This breadth allows Shanghai Zenith to recommend the most suitable solution for each project, rather than forcing a single product. For 600 mesh gypsum in water treatment, the company can provide a complete process design, equipment selection, installation guidance, and after-sales service.
In Ivory Coast, Shanghai Zenith can work with local partners to ensure that the grinding line meets specific requirements. Whether the project is a small municipal water treatment plant, a large industrial wastewater facility, or a commercial gypsum powder producer, the company can customize the capacity, fineness, and automation level. The goal is to deliver a reliable, efficient, and profitable solution.
Gypsum is a valuable material for water treatment in Ivory Coast. When ground to 600 mesh, it offers high reactivity, good dispersion, and practical handling. To produce this fineness consistently, a high-performance grinding mill is essential. Shanghai Zenith recommends the LM Vertical Fine-powder Mill Series, especially the LM130X-GX and LM220X-GX, for dedicated 600 mesh gypsum production. For greater flexibility or ultra-fine requirements, the XZM Ultrafine Grinding Mill is an excellent alternative. With proper plant design, dust control, and maintenance, a 600 mesh gypsum grinding line can support cleaner water, lower chemical costs, and sustainable industrial growth in Ivory Coast. Contact Shanghai Zenith today to discuss your gypsum grinding project and receive a customized solution.
