The industrial coatings industry demands exceptional quality, consistency, and performance from its raw materials. Among these, barite (barium sulfate) stands out as a critical functional filler and extender. Its high density, chemical inertness, low oil absorption, and brilliant white color make it indispensable for producing high-performance coatings with specific properties like corrosion resistance, durability, and superior finish. However, unlocking these benefits hinges entirely on one crucial process: ultra-fine grinding. The transformation of crude barite ore into a precisely controlled, high-purity powder is where technology makes the difference.
Barite is not merely a space-filler in coatings formulations; it is a performance enhancer. Its primary roles include:
To perform these functions effectively, the barite powder must meet stringent specifications regarding particle size distribution (PSD), top cut, and purity. Any deviation can lead to compromised gloss, increased viscosity, sedimentation, or reduced protective capabilities.
Grinding barite to the fineness required by the coatings industry (typically ranging from 600 mesh to 2500 mesh or 2-45 microns) presents significant challenges. The process must achieve:
Traditional grinding mills often fall short in one or more of these areas, leading to bottlenecks in quality and production.
Shanghai Zenith Machinery Co., Ltd., a renowned manufacturer of ore grinding equipment, has made great achievements in the field of ultra-fine powder grinding. Specializing in the research, development, and production of industrial grinding equipment, Zenith offers a suite of machines engineered to meet the exacting demands of modern barite processing for the coatings sector. Two of our flagship products are particularly well-suited for this application.

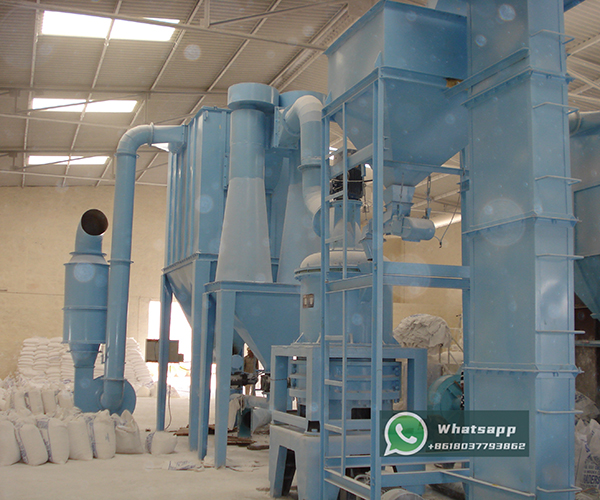

For coatings manufacturers seeking to produce the finest grades of barite powder, our XZM Ultrafine Grinding Mill is an ideal choice. This mill is widely recognized for its ability to produce superfine powder with precise particle size control, making it perfect for grinding barite to a fineness between 325-2500 mesh.
The XZM Mill features a unique grinding ring and roller design that creates a high-efficiency particle bed grinding zone. This results in lower energy consumption per ton of output compared to conventional mills. Its integrated classifier allows for instant adjustment of product fineness without stopping the machine, ensuring unparalleled flexibility and consistency in output.
| Model | Working diameter (mm) | Max feed size (mm) | Final size (mesh) | Output (kg/h) | Main motor power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 | 315 |

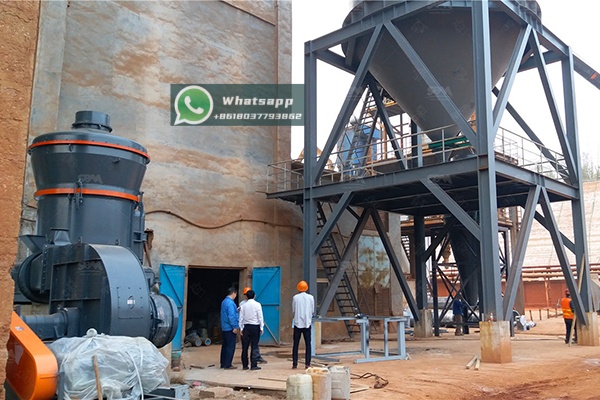

For high-capacity production of coated-grade barite where the fineness requirement is typically between 200-800 mesh, our MTW Trapezium Grinding Mill offers an unbeatable combination of efficiency, reliability, and cost-effectiveness. This mill incorporates multiple national patents and is known for its curved surface duct, inner oil lubrication system, and arc air channel, all contributing to its superior performance.
The MTW Mill is designed for large-scale production runs, making it perfect for dedicated barite processing plants supplying the global coatings industry. Its advanced dust removal system ensures an eco-friendly operation, a critical consideration for modern industrial facilities.
| Model | Max. Feed Size (mm) | Final size (mm) | Capacity (t/h) | Main motor (kW) | Fan motor (kW) |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 | 110 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 | 315 |
The choice of grinding technology is a decisive factor in determining the quality and competitiveness of barite products for the industrial coatings market. It is not just about reducing particle size; it is about engineering a powder with the exact physical and chemical characteristics needed to enhance coating performance.
Shanghai Zenith Machinery provides more than just equipment; we provide complete grinding solutions. Our technical expertise, from mill selection to plant layout and automation integration, ensures that our clients can achieve their production goals for quality, capacity, and cost. By investing in Zenith’s advanced grinding technology, barite processors and coatings manufacturers can secure a reliable supply of high-grade material that meets the most demanding industry standards, driving innovation and quality in the coatings of tomorrow.
