Kaolin, a naturally occurring clay mineral, plays a crucial role in casting sand production due to its fine particle size, chemical inertness, and excellent refractory properties. In Afghanistan, the growing demand for high-quality casting sand in foundries and ceramics production has led to an uptick in kaolin processing projects. To meet the 10–20 tons per hour (TPH) production range required by multiple mid-scale industries, an efficient and reliable grinding solution is indispensable. Shanghai Zenith Machinery Co., Ltd. stands out as a global leader in the design and manufacture of advanced industrial grinding equipment, capable of delivering consistent quality and optimized energy efficiency.
As the Afghan industrial infrastructure continues to expand, the use of advanced kaolin grinding technology is essential to achieve both cost-efficiency and superior product quality. This article explores the significance of kaolin grinding for casting applications, the challenges of implementing such systems in Afghanistan, and the advantages of adopting Zenith’s grinding solutions tailored for the 10–20 TPH range.
Kaolin is a hydrous aluminum silicate mineral characterized by its fine particle size distribution, whiteness, and plasticity. In the casting process, it acts as a binding and coating agent, improving mold strength and surface finish of metal castings. For industrial applications in Afghanistan’s foundry sector, kaolin must be finely ground to ensure optimal reactivity and consistent particle morphology. Achieving the required fineness—typically in the 45 µm to 5 µm range—is only possible through the use of sophisticated grinding mills designed for nonmetallic minerals.
In addition to its usage in casting sand, kaolin also finds applications in ceramics, paper coating, refractories, and paints. The growing number of manufacturing centers in Kabul, Herat, and Mazar-i-Sharif has accelerated the need for local kaolin processing facilities. Such infrastructure reduces import dependency while supporting local industry and employment.
The primary challenges in Afghan kaolin processing include:
Given these factors, choosing a grinding mill with stable operation, adaptability, and environmental design is key to sustainable and efficient production.
With decades of experience in powder processing and a global service presence, Shanghai Zenith Machinery Co., Ltd. offers a complete suite of equipment that meets the requirements of 10–20 TPH production for kaolin grinding. Two models are particularly suitable for Afghanistan’s industrial projects: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill.

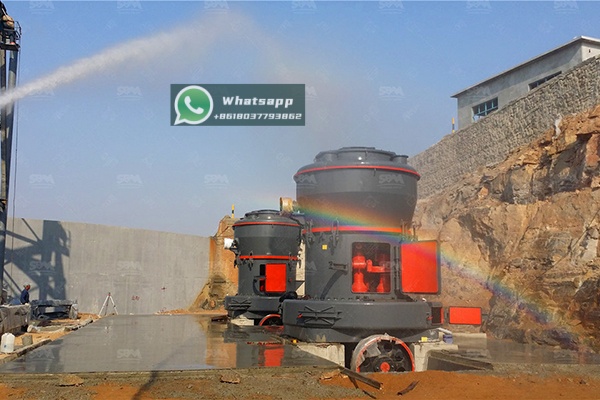

The MTW Trapezium Grinding Mill represents advanced European grinding technology combined with reliable mechanical design. It is ideal for pulverizing materials like kaolin, producing consistent particle quality at high throughput. The 10–20 TPH capacity range fits perfectly within Afghanistan’s mid-scale kaolin plants.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW138Z | <35 | 1.6–0.045 | 6–17 | 90 | 110 |
| MTW175G | <40 | 1.6–0.045 | 9.5–25 | 160 | 200 |
The MTW Trapezium Mill employs advanced blade designs for efficient material lifting, while its air flow system ensures even particle distribution. This minimizes over-grinding, ensuring a stable particle size ideal for casting sand production where uniform fineness is necessary to maintain mold quality and gas permeability.

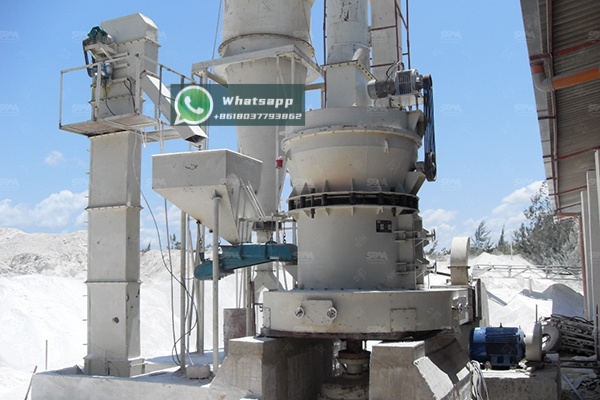

For larger-scale or integrated operations, the LM Vertical Grinding Mill offers a compact design that incorporates crushing, drying, grinding, and classifying functions. Its high drying capacity makes it especially suitable for Afghan kaolin, which often contains moisture due to local mining conditions. The integrated design also reduces mechanical noise and dust, fulfilling environmental and safety requirements.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10–28 | 170–40 | <38 | 200 |
| LM190K | 1900 | 23–68 | 170–40 | <45 | 500 |
One of the key advantages of the LM series is its ability to produce stable, high-quality fine powders with minimal energy input. The vertical layout reduces space requirements—an important factor in Afghanistan’s small-scale industrial zones. Additionally, the mill’s intelligent control system allows real-time adjustments to material parameters, optimizing productivity even in unstable conditions.
The complete kaolin grinding process typically involves the following stages:
For Afghanistan’s industrial sector, establishing an efficient kaolin grinding system is pivotal for high-quality casting sand production. With its proven track record and comprehensive product line, Shanghai Zenith Machinery Co., Ltd. provides reliable equipment solutions tailored to local needs. The MTW Trapezium Grinding Mill and LM Vertical Grinding Mill offer robust performance, high fineness, and energy-efficient operation, making them ideal for kaolin grinding plants targeting 10–20 TPH capacity.
By integrating Zenith’s advanced grinding technologies, Afghan manufacturers can enhance productivity, reduce operational costs, and produce higher-grade casting sand—laying a strong foundation for the nation’s manufacturing future.
