kaolin grinding mill for construction aggregate in Iraq 5-10 tph

Introduction: Kaolin Grinding for Iraq Construction Aggregate

Iraq is entering a long period of infrastructure renewal. Roads, bridges, housing, airports, ports, and industrial zones require large volumes of construction aggregate, cement, asphalt, and mineral fillers. Kaolin, also known as china clay, is a hydrated aluminum silicate mineral with a wide range of industrial uses. In the construction sector, finely ground kaolin is used as a functional filler in concrete, mortar, asphalt, sealants, adhesives, paints, and ceramic building products. For a project in Iraq requiring 5-10 tph of processed kaolin, the choice of grinding mill has a direct effect on product quality, energy cost, and plant reliability.

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in research, development, and production of industrial powder grinding equipment, including MTW Trapezium Grinding Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, Hammer Mill, and Ball Mill. For a 5-10 tph kaolin grinding plant in Iraq, two models are particularly suitable: the MTW110Z Trapezium Grinding Mill and the MTM130 Medium-Speed Grinding Mill.

Why Grind Kaolin for Construction Aggregate?

Raw kaolin from a quarry or deposit normally contains lumps, moisture, and impurities. In construction aggregate applications, the material must be dried, crushed, and ground to a controlled particle size. The fineness of kaolin affects whiteness, oil absorption, bulk density, reactivity, and compatibility with cement or bitumen. Coarse kaolin can be used as a low-cost filler in concrete blocks, while finer grades are used in high-performance mortars, tile adhesives, asphalt mastics, and protective coatings.

Main Construction Uses of Ground Kaolin

• Concrete and mortar: Kaolin filler improves workability, reduces segregation, and can contribute to strength development when used with cement or lime.
• Asphalt and bitumen: Fine kaolin acts as an inert filler that stiffens bitumen, improves rutting resistance, and enhances durability of road surfaces.
• Ceramic tiles and sanitaryware: Ground kaolin is a key raw material for ceramic bodies, providing plasticity, green strength, and fired whiteness.
• Paints, coatings, and sealants: Kaolin extends titanium dioxide, improves opacity, and controls rheology in construction coatings.
• Geopolymer and supplementary cementitious materials: Thermally treated kaolin, such as metakaolin, is a reactive pozzolan for low-carbon concrete.

For Iraq, where summer temperatures are high and dust control is important, a closed-loop grinding system with pulse-jet bag filters and reliable wear parts is recommended. The target capacity of 5-10 tph is a medium-small industrial scale. It is large enough for commercial production but small enough for modular installation near an aggregate quarry or cement plant.

Key Selection Criteria for a 5-10 TPH Kaolin Mill

Before selecting a mill, the following parameters should be confirmed:

• Feed size: Typical kaolin feed after primary crushing should be below 30-35 mm for medium-speed mills and below 30 mm for MTW110Z.
• Moisture content: If raw kaolin contains more than 6-8% moisture, a dryer or hot-air grinding system may be required. MTW and MTM mills can be equipped with drying systems when necessary.
• Product fineness: Construction filler grades commonly range from 200 mesh to 325 mesh, or 0.075 mm to 0.045 mm. Some applications require finer products.
• Capacity: The mill should operate near its design capacity without overload. A 5-10 tph requirement should be matched with a mill that can deliver at least 10 tph under local conditions.
• Energy efficiency: Power consumption per ton is a major operating cost. Advanced mills with optimized grinding rollers and classifiers reduce kWh per ton.
• Wear protection: Kaolin can be abrasive. Hardened rollers, wear liners, and easy replacement parts reduce downtime.
• Dust collection: Iraq has strict environmental expectations in industrial zones. A negative-pressure system with bag filters protects workers and the environment.

Recommended Zenith Products for 5-10 TPH Kaolin Grinding

Shanghai Zenith Machinery recommends two proven models for this capacity range. Both are robust, efficient, and supported by global spare parts and technical service.

1. MTW Trapezium Grinding Mill: MTW110Z

The MTW Trapezium Grinding Mill is a grinding mill with multiple patents, known for its compact structure, long service life, and eco-friendly design. It is suitable for processing materials with a maximum input size of 50 mm, producing a final product as fine as 0.038 mm. The MTW110Z model offers a capacity of 3-10 t/h, which fits the lower and middle range of the required 5-10 tph. Its final size range of 1.6-0.045 mm allows operators to produce coarse filler, standard 200-325 mesh kaolin, or finer grades by adjusting the classifier. The main motor is 55 kW and the fan motor is 55 kW, giving a favorable balance between capacity and power consumption. With a compact footprint, the MTW110Z is suitable for a modular plant in Iraq.

2. MTM Medium-Speed Grinding Mill: MTM130

The MTM Medium-Speed Grinding Mill adopts world-leading powder processing technology and is an ideal substitute for traditional mills such as Raymond Mill. It features an upgraded structure, higher efficiency, and energy-saving production. The MTM130 has five ring rolls, accepts feed below 30 mm, and delivers 6-11 t/h with a 75 kW main unit motor. This makes it an excellent match for a 5-10 tph kaolin line in Iraq. The mill can produce fine powders suitable for concrete admixtures, asphalt filler, ceramic bodies, and construction coatings. Its robust grinding ring and roller assembly are designed for continuous operation, and the integrated classifier helps maintain a stable product fineness.

If the project requires a higher capacity or a vertical mill configuration, the LM Vertical Grinding Mill is also available. The LM130K has a capacity of 10-28 t/h and can process feed below 38 mm with a 200 kW main motor. It integrates crushing, grinding, powder selection, drying, and material conveying into one machine. However, for a strict 5-10 tph kaolin application, the MTW110Z and MTM130 are more precise choices.

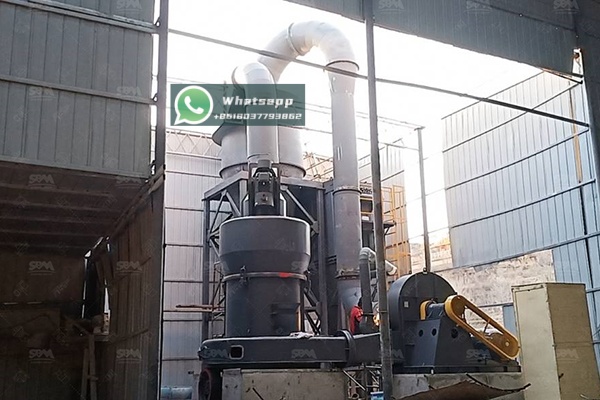

Process Flow for a 5-10 TPH Kaolin Grinding Plant in Iraq

A complete kaolin grinding plant for construction aggregate normally includes the following stages:

1. Raw material receiving and storage: Kaolin lumps are stored in a covered hopper to reduce moisture variation and dust.
2. Primary crushing: A jaw crusher or hammer crusher reduces kaolin to below 30-35 mm. If the feed is already fine, this stage may be replaced by a vibrating feeder with a grizzly.
3. Drying: If moisture is above the mill limit, a rotary dryer or hot-air furnace provides dried feed. In many Iraqi applications, solar drying or covered storage can reduce moisture before grinding.
4. Grinding and classification: The MTW110Z or MTM130 mill grinds kaolin and sends the powder to an air classifier. Oversized particles return to the grinding chamber.
5. Product collection: Cyclone collectors and pulse-jet bag filters separate the finished powder from the air stream.
6. Storage and packing: Finished kaolin is stored in a silo or packed into 25 kg, 50 kg, or bulk bags for delivery to concrete, asphalt, and ceramic plants.

The plant layout should allow easy access for maintenance, sufficient ventilation, and a clean working environment. A central control system can monitor feeder speed, mill load, classifier speed, and bag filter pressure drop. This level of automation helps Iraqi producers maintain consistent product quality and reduce labor costs.

Operational Considerations in Iraq

Iraq presents specific challenges and opportunities for mineral processing. High ambient temperatures require motors, gearboxes, and electrical components rated for hot climates. Dust is a common issue in aggregate and mineral plants, so enclosed conveyors, water sprays at transfer points, and high-efficiency bag filters are essential. Power supply stability may vary; therefore, a well-designed motor control center and optional diesel generator backup can improve uptime. Wear parts should be selected for abrasive kaolin, and a local spare parts stock should include grinding rollers, rings, liners, and filter bags.

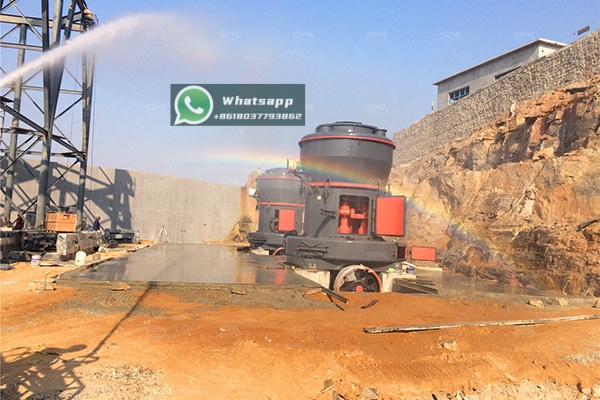

Logistics also matter. A compact mill such as the MTW110Z can be shipped in standard containers and installed on a simple concrete foundation. The MTM130 is also container-friendly. Both models can be commissioned with remote guidance from Zenith engineers, followed by on-site support when required. Training for local operators should cover startup, shutdown, feed control, product fineness adjustment, and routine maintenance.

Why Choose Shanghai Zenith Machinery?

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company is specialized in research, development, and production of industrial powder grinding equipment and related devices. Its main products include MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill.

For a 5-10 tph kaolin project in Iraq, Zenith can provide more than a mill. The company can assist with material testing, process design, equipment selection, layout drawing, installation guidance, and operator training. With a focus on quality, innovation, and customer service, Zenith helps construction aggregate producers turn kaolin into a valuable product for concrete, asphalt, ceramics, and coatings.

Conclusion

Kaolin is a strategic mineral for Iraq’s construction aggregate and building materials sector. A reliable 5-10 tph grinding plant can supply fine filler for concrete, asphalt, mortars, and ceramics while creating new business opportunities. The MTW110Z Trapezium Grinding Mill and MTM130 Medium-Speed Grinding Mill from Shanghai Zenith Machinery are two excellent choices for this capacity range. They offer proven technology, flexible fineness control, energy-efficient operation, and strong support for Iraqi conditions. For project planning, equipment quotation, and technical consultation, contact Shanghai Zenith Machinery to design a kaolin grinding solution that matches your raw material and market requirements.
