Limestone-based flue gas desulfurization (FGD) remains one of the most reliable and cost-effective methods for reducing sulfur dioxide (SO2) emissions from coal-fired power plants in the United States. As environmental regulations such as MATS and CSAPR continue to drive reductions in acid gases, plant operators and engineering firms are paying close attention to the quality and fineness of limestone reagent. For many applications, an 80 mesh limestone powder is specified because it offers an effective balance between reactivity and grinding cost. Producing this powder consistently requires a robust, energy-efficient grinding mill that can handle limestone variability while maintaining precise particle size control. Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore grinding equipment in China, has made great achievements in the field of powder grinding and offers proven solutions for US desulfurization projects. This article examines the role of 80 mesh limestone in desulfurization and recommends two Zenith grinding mills: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill.
80 mesh corresponds to approximately 177 microns (0.177 mm) in the US Standard sieve series. In limestone desulfurization, particle size directly affects the surface area available for reaction with SO2. Finer particles dissolve more rapidly and react more completely, but they also require more grinding energy and can create handling issues such as dusting, poor flowability, and higher moisture sensitivity. Coarser particles are cheaper to produce but may pass through the FGD system without fully reacting, reducing limestone utilization and increasing operating costs. The 80 mesh target is often used in circulating fluidized bed (CFB) boilers, dry sorbent injection (DSI), and certain semi-dry or wet FGD systems where moderate fineness is sufficient. In many US specifications, the requirement is expressed as 90% or 95% passing 80 mesh. This means that the grinding circuit must not only produce fine particles but also maintain a narrow particle size distribution and avoid excessive oversize. Limestone quality also matters: high calcium carbonate content, low silica and alumina, and consistent hardness are important for stable operation. A suitable mill must therefore combine adjustable fineness, high capacity, and reliable operation under continuous duty.
US power plants operate under strict environmental permits, and unplanned downtime in the limestone preparation system can force reductions in boiler load or lead to non-compliance. Consequently, desulfurization grinding systems must be designed for high availability. Key requirements include reliable continuous operation, typically 24 hours per day and 7 days per week; precise product fineness control; dust collection that meets US emission standards; low noise and vibration; easy maintenance with readily available wear parts; and automation that integrates with plant DCS. Energy consumption is another critical factor. Grinding can account for a significant portion of the FGD auxiliary power load. A mill that produces 80 mesh limestone with high efficiency can reduce both electricity costs and CO2 emissions associated with auxiliary power. In addition, US projects often require documented performance guarantees, material certifications, and long-term spare parts support. Shanghai Zenith Machinery Co., Ltd. designs its industrial powder grinding equipment with these demands in mind, offering robust construction, advanced classification, and complete system engineering.

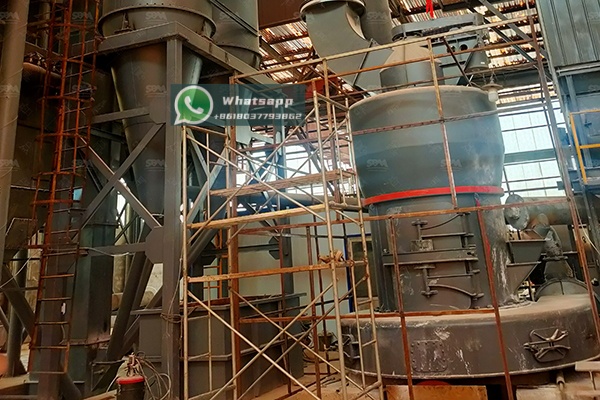

Shanghai Zenith Machinery Co., Ltd. recommends the MTW Trapezium Grinding Mill for medium-capacity limestone desulfurization projects requiring 80 mesh powder. The MTW mill is a grinding mill with multiple patents, known for its compact structure, long service life, and eco-friendly design. It is suitable for processing materials with a maximum input size of 50 mm and can produce a final product as fine as 0.038 mm. Because 80 mesh is approximately 0.177 mm, the MTW mill can easily achieve the target fineness while maintaining high throughput. The MTW series uses a robust bevel gear transmission, internal lubrication system, and curved grinding blades that improve material bed formation and grinding efficiency. Its high-efficiency classifier allows operators to adjust product fineness without shutting down the mill. The system can be equipped with a pulse dust collector to meet stringent US dust emission requirements. For 80 mesh limestone, typical models include the MTW138Z, MTW175G, and MTW215G. The MTW175G, for example, offers 9.5 to 25 t/h with a 160 kW main motor and a 200 kW fan motor, making it suitable for medium-sized power plants or multiple mill installations. The MTW215G can reach 15 to 45 t/h, providing additional capacity for larger desulfurization systems. Table 1 lists the technical parameters of the MTW Trapezium Grinding Mill.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 | 55 |
| MTW110Z | <30 | 1.6-0.045 | 3-10 | 55 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 | 110 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 | 200 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 | 315 |
With its compact footprint and flexible layout, the MTW mill is an excellent choice for plants that need a reliable 80 mesh limestone supply without the large civil works associated with traditional ball mills. It is also well suited to brownfield projects where space is limited.

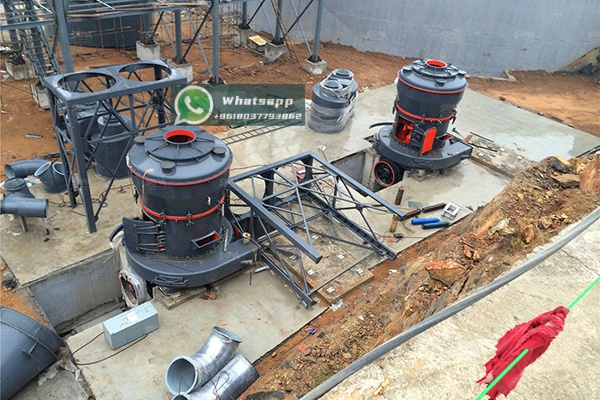

For high-capacity limestone desulfurization in the United States, Shanghai Zenith Machinery Co., Ltd. recommends the LM Vertical Grinding Mill. The LM Vertical Grinding Mill integrates five functions—crushing, grinding, powder selection, drying, and material conveying—into a single machine. It offers a small occupational area, produces a fine final powder, and is an eco-friendly production solution. The LM series is particularly attractive for large FGD systems because it can process high tonnages while maintaining consistent product fineness. Its vertical roller design uses a material bed grinding principle, which generally results in lower specific energy consumption than traditional ball mills. The integrated dynamic classifier provides precise control of the final product, and the output fineness range of 170 to 40 microns covers the 80 mesh target comfortably. When grinding limestone for desulfurization, the classifier can be set to produce 90% or 95% passing 80 mesh, depending on the plant specification. The LM mill also handles limestone moisture variations through hot air drying, which is important in many US climates and for wet or stored limestone. The system is controlled by a PLC or DCS-compatible automation package, allowing operators to monitor vibration, temperature, pressure, and product fineness in real time. Table 2 lists the technical parameters of the LM Vertical Mineral Mill Series. For medium-to-large projects, the LM190K offers 23 to 68 t/h with a 500 kW main motor, while the LM280K provides 50 to 170 t/h with a 1250 kW main motor. These models are suitable for large coal-fired power plants, industrial boilers, and centralized limestone preparation facilities.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
Selecting between the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill depends on project scale, limestone characteristics, and site conditions. The MTW mill is often the preferred solution for small to medium desulfurization systems, decentralized limestone grinding, or projects with limited civil works. It is easy to install, operates with low noise, and provides flexible fineness adjustment. The LM Vertical Grinding Mill is ideal for large, centralized systems where high capacity and low specific power consumption are priorities. It occupies less floor space per ton of product and can dry, grind, and classify in one unit. In both cases, Shanghai Zenith Machinery Co., Ltd. can provide complete process design, equipment manufacturing, installation supervision, commissioning, and operator training. The company also supplies auxiliary equipment such as feeders, belt conveyors, bucket elevators, dust collectors, fans, air classifiers, storage silos, and packing systems.
A successful 80 mesh limestone desulfurization system is more than just a mill. It requires proper material handling, accurate feeding, effective dust control, and reliable product transport. Shanghai Zenith Machinery Co., Ltd. engineers complete grinding stations that are tailored to US site conditions and project specifications. The company’s grinding equipment is used in mining, chemical, construction, and environmental industries worldwide. For desulfurization, Zenith can conduct laboratory grindability tests, simulate the grinding circuit, and recommend the optimal mill model and classifier settings. This approach reduces project risk and ensures that the final powder meets the required 80 mesh specification at the guaranteed capacity. Wear parts are manufactured from high-quality materials to extend service life and reduce maintenance costs. Remote diagnostics and spare parts planning further improve long-term availability.
Limestone grinding for desulfurization in the United States requires a careful balance of fineness, capacity, energy efficiency, and reliability. The 80 mesh specification is widely used because it provides adequate reactivity for many FGD processes while keeping grinding costs under control. Shanghai Zenith Machinery Co., Ltd. offers two outstanding solutions: the MTW Trapezium Grinding Mill for medium-capacity, compact installations, and the LM Vertical Grinding Mill for high-capacity, energy-efficient systems. Both products are supported by Zenith’s extensive experience in industrial powder grinding and its commitment to quality, innovation, and customer service. For US power plants, industrial boilers, and environmental engineering companies seeking a dependable limestone grinding mill for 80 mesh desulfurization powder, Shanghai Zenith Machinery Co., Ltd. is a strong partner. Contact Zenith today to discuss your project requirements and receive a tailored grinding solution.
