The construction industry in Ivory Coast, also known as Côte d’Ivoire, is entering a period of rapid growth. New housing, hotels, office buildings, roads, and public infrastructure are increasing the demand for modern building materials. Among these materials, engineered stone has become particularly popular because it combines the beauty of natural stone with the uniformity and durability of a manufactured product. For engineered stone producers, the quality of the mineral filler is one of the most important factors for success. Shanghai Zenith Machinery Co., Ltd. offers advanced limestone grinding mills that can produce ultra-fine powder at a fineness of 800 mesh, exactly what the Ivorian engineered stone industry needs.
Ivory Coast is one of the fastest-growing economies in West Africa. The country has invested heavily in transport, energy, construction, and tourism infrastructure, creating strong demand for interior and exterior decoration materials. Engineered stone, including engineered marble and quartz surface products, is widely used for countertops, wall cladding, flooring, and vanity tops. Because locally produced engineered stone is more affordable than imported natural stone, many investors are setting up manufacturing facilities in Abidjan and other industrial zones. These factories require a reliable source of high-quality limestone powder. Using a grinding mill that can deliver 800 mesh filler consistently gives local manufacturers the confidence to compete with imported brands.
Limestone powder is more than just a filler; it is an active component that affects the mechanical properties and appearance of engineered stone. When ground to 800 mesh, the particle size measures approximately 15 microns. This fine particle size allows the limestone powder to fill voids between coarse aggregates and create a dense matrix. As a result, the final slab has excellent flexural strength, low water absorption, and a smooth surface that can be easily polished. Furthermore, a consistent particle size distribution helps to control the reaction between the resin and the filler, improving color stability and reducing waste. Therefore, selecting the right grinding equipment is closely linked to the profitability of the engineered stone plant.
Grinding limestone to a fineness of 800 mesh is more demanding than ordinary mineral powder production. The process requires a milling system capable of generating enough specific surface area while maintaining particle-size uniformity. Traditional mills often encounter excessive vibration, high temperature, and poor classifier efficiency when operating in this range. In addition, the moisture content of limestone must be managed during grinding to prevent clogging. The design of a modern ultrafine grinding mill should integrate drying, grinding, and classification to maximize efficiency. Both the LUM Ultrafine Vertical Mill and the XZM Ultrafine Grinding Mill from Zenith are engineered to meet these demanding conditions.
Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in the research, development, and production of industrial powder grinding equipment and related devices. Its main products include MTW Trapezium Grinding Mills, Ball Mills, MTM Medium-Speed Grinding Mills, Raymond Mills, LM Vertical Grinding Mills, LUM Ultrafine Vertical Mills, XZM Ultrafine Grinding Mills, and Hammer Mills. For the production of 800 mesh limestone filler, the LUM and XZM mills are particularly recommended because they combine high capacity, precise classification, and low operating costs.
The LUM Ultrafine Vertical Mill integrates crushing, grinding, drying, classifying, and conveying into one compact system. It is designed to produce ultra-fine powder with excellent particle-size distribution and high content of end-fines. The mill uses a rotating classifier to achieve precise control of the final fineness, allowing a D97 of 5 to 30 microns. This makes the LUM mill ideal for 800 mesh limestone powder production in Ivory Coast. The machine is also equipped with an intelligent control system that stabilizes the grinding process and reduces operator intervention.
The table below shows the main specifications of the LUM series. These values are based on standard dry limestone with medium hardness.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
As shown in the table, the LUM1632 provides a balanced combination of power and output. With a main motor power of 280 to 315 kW, it can produce between 2 and 13.5 tons per hour, depending on the feed particle size and hardness. For a medium-size engineered stone factory, the LUM1632 is often the most economical model.

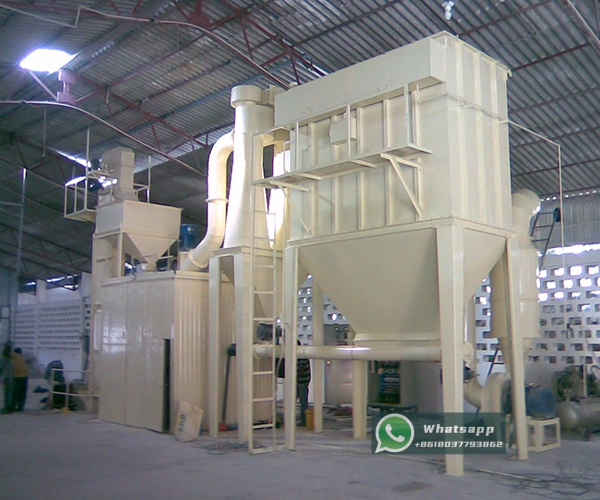

The XZM Ultrafine Grinding Mill is a highly efficient machine for the production of superfine powder in the range of 325 to 2500 mesh. It is widely used in the chemical, mineral, and building materials industries. The XZM mill adopts an impeller-type classifier, which can accurately separate particles and return coarse materials for further grinding. With a compact structure and small footprint, the XZM mill is easy to install and maintain. It is particularly suitable for projects with relatively lower capacity requirements or with limited plant space.
The following table gives the key technical data of the XZM series.
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) | Main Motor Power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 | 315 |
The XZM221 model can produce 500 to 4500 kilograms per hour depending on the target fineness. For 800 mesh limestone powder, the output will be in the middle-to-high part of this range under normal conditions. If a higher capacity is required, the XZM268 can achieve up to 25 tons per hour, making it a powerful tool for dedicated powder plants.
Choosing a Zenith grinding mill brings numerous benefits to an engineered stone plant in Ivory Coast. First, the compact structure reduces civil works and installation costs. Second, the integrated classifier ensures a consistently fine 800 mesh product. Third, the intelligent control system helps local operators monitor and adjust the process with minimal training. Fourth, the wear-resistant design lowers maintenance frequency, which is crucial for remote project sites. Finally, the environmental design reduces dust and noise, helping plants meet local health and safety standards. These advantages are the result of many years of engineering development and global field experience.
The selection between the LUM and XZM mill depends on the specific project situation. If the required capacity is above 2 tons per hour and the plant needs a complete integrated solution, the LUM series is the best option. If the investment budget is lower and the plant wants a flexible mill that can also produce different fineness levels, the XZM series is an excellent alternative. Zenith’s sales engineers can analyze the raw material, moisture, and target output to recommend the correct configuration. For most Ivorian engineered stone manufacturers, the LUM1632 and XZM221 are the two most popular models. Both systems are normally paired with a jaw crusher or hammer crusher to prepare the feed before grinding.
Zenith not only supplies the grinding mill but also offers complete powder processing systems. These include jaw crushers or hammer crushers for size reduction, bucket elevators and belt conveyors for material handling, dust collectors for environmental protection, and packing machines for bagged powder. A typical limestone grinding system in Ivory Coast can be designed as a turnkey project. The raw limestone is first crushed to below 20 millimeters, then lifted to the storage silo, and finally fed into the LUM or XZM mill. After classification, the finished 800 mesh powder is collected and transported to the engineered stone production line.
The market opportunity for engineered stone in Ivory Coast is huge, and the availability of high-quality 800 mesh limestone powder is a decisive factor for success. Shanghai Zenith Machinery Co., Ltd. offers world-class grinding equipment that can help Ivorian manufacturers produce the required filler with high efficiency and stable quality. Whether choosing the LUM Ultrafine Vertical Mill or the XZM Ultrafine Grinding Mill, customers can rely on Zenith’s engineering expertise and after-sales support. With the right grinding mill, limestone becomes not just a raw material but a competitive advantage for the engineered stone industry in Ivory Coast.
