Limestone has long been a fundamental component in the construction and ceramics industries, particularly as a key ingredient in tile manufacturing. Its natural abundance, ease of processing, and desirable chemical composition make it a cost-effective and durable material. In Lebanon, where the demand for decorative and functional ceramic tiles continues to grow, efficient limestone grinding solutions are essential to improve ROI and product quality. This article discusses the importance of a reliable limestone grinding mill for tile production at a 3-5 TPH capacity and introduces suitable equipment from Shanghai Zenith Machinery Co., Ltd..
Shanghai Zenith Machinery Co., Ltd. is a leading manufacturer of ore grinding equipment in China, with decades of expertise in the research, development, and production of industrial powder grinding technologies. Zenith’s product lineup includes the MTW Trapezium Grinding Mill, LM Vertical Grinding Mill, Raymond Mill, and more—all of which are designed to deliver high efficiency, low power consumption, and consistent particle size distribution across various applications.
Lebanon has a vibrant construction and interior design sector, influenced by Mediterranean architectural styles that favor natural stone textures and ceramic surfaces. As urbanization and renovation projects grow, ceramic and porcelain tile demand increases steadily. To maintain competitive production costs and produce superior surface finishes, manufacturers must manage raw material quality closely.
Limestone, when finely ground, serves as both a filler and a chemical stabilizer in tile composition. Its fine particles help improve the mechanical strength and surface smoothness of tiles, while maintaining desirable thermal and moisture properties. Achieving the proper fineness and purity in limestone powders thus becomes a vital step in the tile-making process. This requires efficient, stable, and energy-saving grinding systems capable of maintaining continuous 3–5 tons per hour output.
The grinding process converts raw limestone into powder suitable for tile production, typically within particle size ranges of 45–150 microns. A suitable grinding mill must therefore meet several criteria:
In this context, advanced grinding systems—such as trapezium and vertical mills—are strongly preferred over conventional ball or Raymond mills for medium-scale tile factories. These modern systems provide integrated drying, grinding, and powder selection functions, ensuring stable product quality and efficient power use.
Considering a production scale of 3–5 tons per hour and targeted application for ceramic tile production, two of Shanghai Zenith’s products are particularly suited: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill (Fine Powder Series).
The MTW Series is designed for efficient processing of limestone, dolomite, and other non-metallic minerals. It integrates advanced European technology and engineering expertise, offering stable performance with precise particle size control. For 3–5 TPH tile applications, the MTW110 or MTW110Z model is ideal for small- to medium-scale production.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6–0.045 | 3–9 | 55 | 55 |
| MTW110Z | <30 | 1.6–0.045 | 3–10 | 55 | 55 |
The MTW Trapezium Mill provides a multi-stage sealing design that prevents dust leakage, making it environmentally friendly and safer for use in ceramic production workshops. The bevel gear transmission system reduces mechanical losses and increases operating efficiency. Its control system allows easy adjustment of final fineness, which is crucial for blending limestone into ceramic body and glaze formulations.

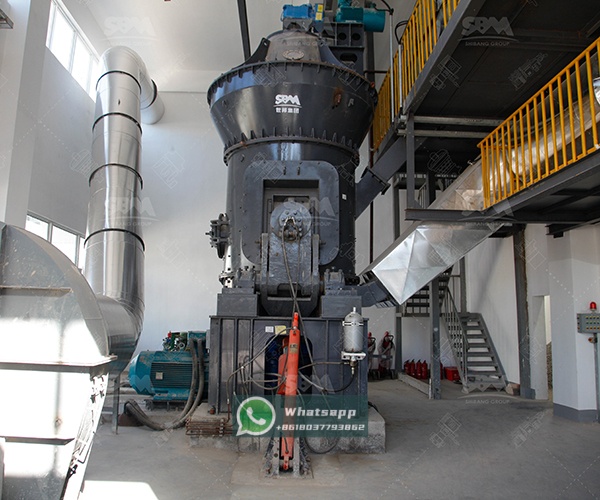

The LM Vertical Grinding Mill offers an integrated operation that includes crushing, drying, grinding, classification, and transportation, all within a compact footprint. The fine-powder version, such as LM130X-GX, can handle limestone efficiently at 4–12 tons per hour, making it more than sufficient for a 3–5 TPH tile line while maintaining headroom for scaling.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (D97) | Main Motor (kW) |
|---|---|---|---|---|
| LM130X-GX | 1300 | 4–12 | 325–600 mesh | 220 |
| LM220X-GX | 2200 | 15–30 | 325–600 mesh | 560 |
This mill is particularly suitable for fine limestone powder production where uniform particle distribution matters. Its built-in classifier ensures high separation efficiency, while hot air integration reduces moisture and avoids caking—an important advantage for Lebanon’s humid coastal climate. Additionally, vertical configuration minimizes installation area requirements, making it ideal for smaller tile manufacturing facilities.

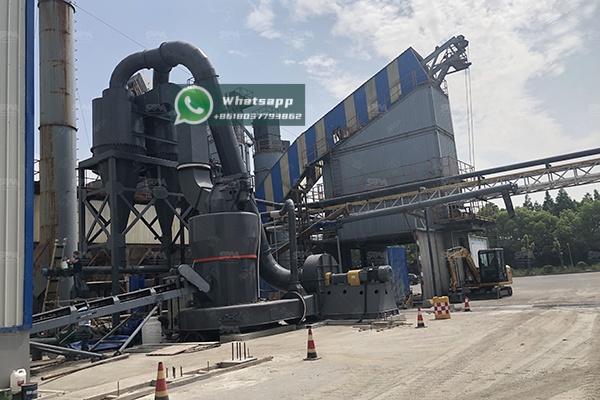

A typical limestone grinding and classification circuit for tile production includes the following stages:
Both MTW and LM series mills from Zenith can be easily integrated with this flow, allowing automated control and seamless operation. These mills both feature modular design architectures that simplify maintenance and reduce downtime.
A tile production plant located near Beirut adopted a limestone grinding line based on the MTW110Z Trapezium Mill, operating at 4.2 tons per hour. The resulting powder was blended directly into body formulations for wall and floor tiles. The consistent fineness of 200 mesh improved tile surface smoothness and reduced reject rates. The customer cited the mill’s stable performance, low noise level, and power efficiency as key operational benefits.
In another case, an LM130X-GX system was installed for ultra-fine milling of limestone for use in decorative porcelain glazes. Using integrated drying capability, the line effectively handled moisture levels up to 4%, removing the need for external drying stages. These projects demonstrate the adaptability and suitability of Zenith grinding systems for the Lebanese ceramic sector.
Energy efficiency and environmental performance are major concerns for modern industrial operations, especially in countries where energy costs are relatively high. Zenith’s grinding mills address both challenges as follows:
These benefits contribute not only to cost savings but also to a cleaner, safer work environment, aligning with Lebanon’s environmental laws and international quality standards for ceramic products.
The success of Lebanon’s tile industry depends on its ability to optimize raw material utilization and maintain stable production performance. In this regard, choosing the right limestone grinding mill is a critical investment. Both MTW Trapezium Grinding Mill and LM Vertical Grinding Mill from Shanghai Zenith Machinery Co., Ltd. meet the 3–5 TPH output range required for tile manufacturing and deliver proven advantages in reliability, fineness control, and environmental protection. As a result, they stand out as the most efficient and long-term solutions for enterprises striving for quality and sustainability in tile production.
For more information or technical support regarding limestone grinding systems for tile production, contact Shanghai Zenith Machinery Co., Ltd. Our professional team can provide customized solutions designed to fit your operational needs, space limitations, and performance objectives.
