Iraq’s growing construction, packaging, automotive, and consumer goods sectors are increasing demand for plastic products such as PVC pipes, profiles, masterbatch, cable compounds, films, and injection-molded parts. To reduce raw material costs and improve mechanical properties, manufacturers commonly use ground calcium carbonate (GCC) derived from white marble as a functional filler. A marble grinding mill for plastic filler in Iraq with a capacity of 1-3 tph is an ideal size for small-to-medium filler producers, local masterbatch plants, and companies that want to control particle size and quality rather than rely on imported filler.
Shanghai Zenith Machinery Co., Ltd. is an experienced manufacturer of ore grinding equipment in China and has achieved significant results in ultra-fine powder grinding. This article explains the key selection criteria for marble grinding in plastic filler applications and recommends two Zenith mills that match the 1-3 tph range: the LUM1525 Ultrafine Vertical Mill and the XZM221 Ultrafine Grinding Mill.
Marble is a metamorphic rock composed mainly of calcium carbonate (CaCO3). When processed into fine powder, it becomes an economical and functional filler for thermoplastics and thermosets. In PVC, PE, PP, and ABS compounds, marble filler can reduce resin consumption, increase stiffness and hardness, improve dimensional stability, and enhance thermal conductivity in some formulations. For masterbatch and cable compounds, the filler must have consistent whiteness, low moisture, controlled particle size distribution (PSD), and low impurities.
Plastic filler grades are often specified by mesh size or micron size. Common grades include 400 mesh, 800 mesh, 1250 mesh, and 2500 mesh. For many plastic applications, a D97 between 10 and 25 microns is suitable. Ultra-fine grades below 10 microns may be required for high-gloss films, thin-wall injection molding, and high-performance masterbatch. Surface coating with stearic acid or other coupling agents is often applied after grinding to improve dispersion and compatibility with polymer matrices.
A 1-3 tph plant is a practical scale for regional producers. It can supply local pipe factories, masterbatch producers, and construction material companies while keeping capital investment and operating costs manageable. The mill should be able to operate efficiently at the low end of its capacity range without excessive energy consumption or unstable grinding pressure. It should also allow future capacity increases with minimal changes to the foundation and auxiliary equipment.
For plastic filler, fineness alone is not enough. A narrow PSD and low top cut are important for consistent dispersion and mechanical properties. A mill with an integrated high-efficiency classifier can produce sharp top cuts and reduce over-grinding. The LUM1525 can achieve a D97 of 5-30 microns, while the XZM221 can produce 325-2500 mesh powder. Both are suitable for different plastic filler grades.
Iraq has a hot, dry, and sometimes dusty climate. Grinding lines must be sealed and equipped with reliable pulse-jet dust collectors. Negative pressure operation prevents dust leakage and protects workers. In urban or industrial zones, environmental compliance is increasingly important. Zenith mills are designed with closed-loop air systems and high-efficiency dust collection.
Energy is a major cost in powder production. Vertical mills and ultrafine mills can grind material in a bed, which is more energy-efficient than traditional ball mills for fine grinding. They also occupy less space and require less foundation work. Easy access to grinding rollers, liners, and classifier blades reduces downtime. For Iraq, robust components, heat-resistant lubricants, and a local spare parts strategy are recommended.
The LUM1525 Ultrafine Vertical Mill is a strong recommendation for a 1-3 tph marble filler line in Iraq. It integrates grinding, drying, classifying, and transportation into one compact system. The mill is designed for ultra-fine powder production and provides high content of end-fines with intelligent control. For marble filler, it can produce plastic-grade GCC with a D97 of 5-30 microns, covering 1250 mesh to 2500 mesh requirements.
With a capacity of 1.6-11.5 t/h, the LUM1525 can operate comfortably in the 1-3 tph range. This means the customer can start with a lower output and later increase production by adjusting operating parameters, as long as the auxiliary equipment is sized accordingly. The main machine power is 220-250 kW. The vertical structure reduces floor space and allows a simple process flow: material is fed to the center of the grinding table, ground by rollers, carried by air to the classifier, and collected by a dust collector.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (µm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
Key advantages for Iraq projects include low dust emission, low noise, stable operation, and convenient maintenance. The LUM1525 is especially suitable for producers who want to make high-quality plastic filler from white marble and need a single mill that can handle several product grades.

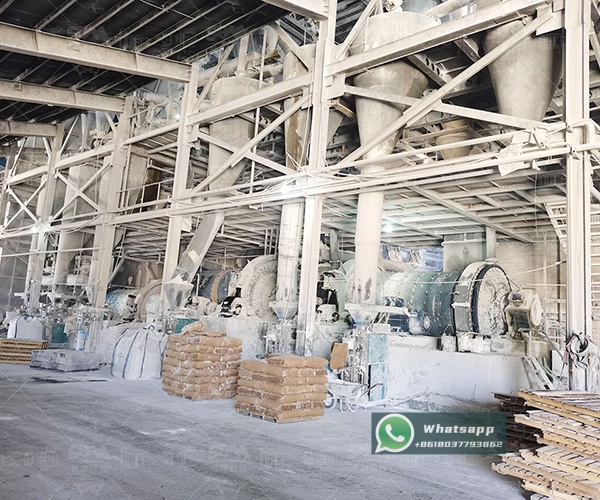

For a smaller investment or a more compact workshop, the XZM221 Ultrafine Grinding Mill is an excellent alternative. It is widely used for superfine powder production and can grind soft or medium-hard materials with moisture content below 6%. It achieves a final size of 325-2500 mesh and has an output of 500-4500 kg/h, which equals 0.5-4.5 t/h. Therefore, it can meet 1-3 tph production when operated in the middle or upper output range, depending on the target fineness and material grindability.
The XZM221 has a working diameter of Φ800 mm, a maximum feed size of 20 mm, and a main motor power of 75 kW. It is a good choice for local filler producers who need a lower initial capital cost and a simple installation. The mill can be combined with a hammer mill or jaw crusher for pre-crushing marble lumps, a bucket elevator for feeding, and a pulse dust collector for clean operation.
| Model | Working diameter (mm) | Max feed size (mm) | Final size (mesh) | Output (kg/h) | Main motor power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
The XZM221 is particularly useful when the product mix includes very fine grades, such as 2000-2500 mesh filler for high-end plastics. Its compact design and relatively low power requirement make it attractive for small plants in Iraq that want to serve regional markets.

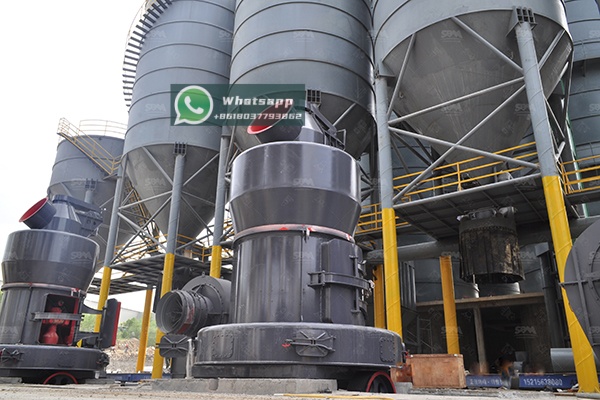

A typical 1-3 tph marble filler line includes the following stages:
Marble lumps are crushed by a jaw crusher or hammer mill to below the mill feed size. The crushed material is stored in a hopper. For the LUM1525, feed size should be controlled within the recommended limit; for the XZM221, the maximum feed size is 20 mm.
A vibrating feeder or belt feeder delivers material at a stable rate. Overfeeding or underfeeding can affect powder fineness and mill vibration. The grinding mill reduces marble particles to the required fineness using rollers, rings, or grinding table and rollers.
An air classifier selects the fine powder. Coarse particles return to the grinding zone. Fine powder is collected by a cyclone and pulse-jet dust collector. The finished powder is then conveyed to a silo or packing machine.
For plastic applications, a surface coating system can be added. Stearic acid or other surface treatment agents are mixed with the powder in a high-speed mixer at controlled temperature. Coated filler has better dispersion, lower oil absorption, and improved compatibility with polymers.
The final product can be packed in 25 kg bags, jumbo bags, or bulk tankers. Quality control should test whiteness, moisture, residue on sieve, D97, D50, oil absorption, and dispersion. Regular calibration of the classifier and dust collector is important.
Iraq’s climate requires special attention to cooling, ventilation, and dust protection. Install the grinding line under a roof or in a well-ventilated building. Protect electrical cabinets from dust and high temperatures. Use heat-resistant grease and hydraulic oil. If the local power supply is unstable, consider a voltage stabilizer or generator. Keep a stock of wear parts such as roller liners, grinding rings, and classifier blades to reduce downtime.
Water availability may be limited in some areas. The LUM and XZM mills generally use dry grinding, so water consumption is low. However, dust suppression and cleaning may require water. A closed system with a pulse dust collector is recommended to minimize water use and environmental impact.
Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in research, development, and production of industrial powder grinding equipment and related devices. Its main products include MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill.
For a marble plastic filler project in Iraq, Zenith can provide process design, equipment selection, layout drawings, installation guidance, commissioning, operator training, and after-sales service. The company can also help customers test marble samples to determine the best mill configuration and expected product quality. With a focus on efficiency, environmental protection, and reliability, Zenith equipment is a practical choice for 1-3 tph filler production.
For a marble grinding mill for plastic filler in Iraq with a capacity of 1-3 tph, the LUM1525 Ultrafine Vertical Mill is the primary recommendation. It offers high fine content, precise D97 control, and scalable capacity from 1.6 t/h to 11.5 t/h. The XZM221 Ultrafine Grinding Mill is an excellent compact alternative for smaller investment and ultra-fine grades up to 2500 mesh. By selecting the right mill, configuring efficient dust collection, and considering optional surface coating, producers in Iraq can manufacture high-quality calcium carbonate filler for local and regional plastic markets.
Contact Shanghai Zenith Machinery Co., Ltd. to discuss your marble filler project in Iraq, request a quotation, or arrange a sample grinding test for 1-3 tph production.
