The Philippines’ construction and interior design industries are experiencing robust growth, driving a significant demand for high-quality ceramic and porcelain tiles. A critical component in tile production is the filler and body preparation, where marble powder plays a vital role. Achieving a consistent and fine particle size, such as 80 mesh (approximately 180 microns), is paramount for ensuring tile strength, uniformity, surface smoothness, and optimal sintering behavior. This article explores the technical requirements for grinding marble to 80 mesh for tile production and highlights advanced milling solutions that can enhance efficiency and product quality for Philippine manufacturers.
Marble powder acts as a filler and flux in tile bodies. At 80 mesh fineness, it offers an ideal balance between particle packing density and reactivity during firing. Finer particles improve the mechanical properties and surface finish of the final tile but require more energy to produce. Coarser particles can lead to defects and reduced strength. Therefore, selecting a grinding mill capable of reliably and efficiently producing 80 mesh powder with a narrow particle size distribution is a crucial business decision for tile plants aiming for competitive advantage.
Grinding marble, a medium-hardness calcium carbonate material, presents specific challenges. The primary goal is to achieve the target fineness without over-grinding, which wastes energy and can lead to particle agglomeration. The mill must also handle the potential moisture content of the feed material and operate with high reliability in the tropical climate of the Philippines. Key considerations include:
While several grinding technologies exist, modern, integrated vertical roller mills and advanced trapezium mills offer the best combination of efficiency, control, and reliability for producing 80 mesh marble powder.

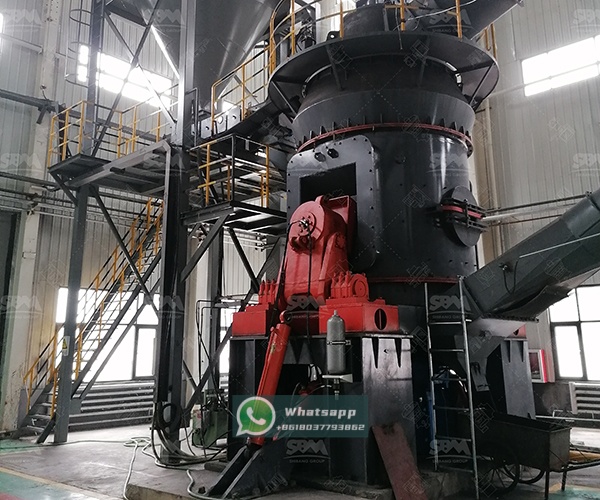

For tile manufacturers seeking a comprehensive solution that combines grinding, drying, and classifying in a single, compact footprint, the LM Vertical Grinding Mill from Shanghai Zenith Machinery is an excellent choice. Its vertical structure integrates multiple processes, making it ideal for materials with some moisture. The grinding roller directly grinds the material on the rotating plate, and hot air from the inlet dries it simultaneously. An integrated classifier ensures that only particles meeting the 80 mesh specification leave the mill, while coarser particles are recirculated for further grinding.
This integrated approach leads to significant space savings and higher overall energy efficiency compared to traditional ball mill systems. For a typical Philippine tile plant requiring a steady supply of 80 mesh marble powder, the LM series offers models with precisely matched capacities.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 (approx. 80-400 mesh) | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
The LM130K model, for instance, is perfectly suited for mid-sized production lines, reliably delivering 80 mesh powder (within the 170-40μm range) at a capacity of 10-28 tons per hour.

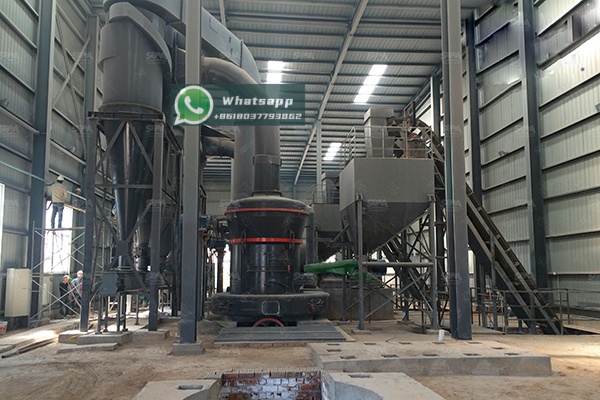

For operations focused on dry grinding with exceptional stability and low operating costs, the MTW Trapezium Grinding Mill stands out. This mill features a curved shovel blade that increases feeding capacity and efficiency. Its bevel gear overall drive and internal thin oil lubrication system ensure smooth, reliable operation—a critical factor for maintaining uninterrupted tile production.
The MTW series is engineered for energy savings and environmental protection, featuring a highly efficient pulse dust collector. It excels at producing powders in the range of 1.6-0.045mm (approximately 10-325 mesh), making the 80 mesh target a core competency. Its modular design also simplifies maintenance and parts replacement.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) |
|---|---|---|---|---|
| MTW138Z | <35 | 1.6-0.045 (10-325 mesh) | 6-17 | 90 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 |
The MTW175G model offers an excellent balance, providing a capacity of 9.5-25 t/h, which can comfortably supply multiple tile production lines with high-quality 80 mesh marble filler.
Shanghai Zenith Machinery Co., Ltd. is a leading Chinese manufacturer specializing in the research, development, and production of industrial grinding equipment. With extensive experience in ultra-fine powder processing, Zenith provides not just machinery but tailored solutions. For Philippine customers, this means access to:
Investing in the right marble grinding technology is a strategic decision for tile producers in the Philippines. Achieving a consistent 80 mesh fineness is critical for product quality. Modern mills like the Zenith LM Vertical Grinding Mill and the MTW Trapezium Grinding Mill offer the efficiency, reliability, and precision required to thrive in this growing market. By partnering with an experienced manufacturer like Shanghai Zenith Machinery, Philippine tile companies can build a strong foundation for producing high-quality tiles that meet both domestic and international standards.
