In modern industrial processing, particularly in the production of ultra-fine powders, the efficiency of an air classification system is paramount. It serves as the critical link between grinding and final product quality, determining particle size distribution, product purity, and overall operational economics. A well-optimized classification system can significantly reduce energy consumption, minimize over-grinding, and ensure consistent product quality that meets stringent market specifications.
Air classification is a process of separating particles based on their size, shape, and density using air as the medium. In a typical grinding circuit, the classifier receives the ground material and separates it into two streams: the fine product that meets the target specifications and the coarse material that is returned to the grinder for further processing. This closed-circuit operation is essential for achieving high efficiency and controlling the top-size of the final product.
The core principle involves balancing centrifugal force and drag force. As a particle-air mixture enters the classifier, centrifugal force pushes larger particles toward the walls for rejection, while drag force carries finer particles through the selector. The efficiency of this separation directly impacts the grinding mill’s capacity and the specific energy consumption of the entire system.
Several operational and design parameters must be carefully managed to maximize classifier performance:
The performance of any classification system is intrinsically linked to the grinding equipment it serves. Modern grinding mills designed specifically for ultra-fine powder production can dramatically enhance overall system efficiency. Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore grinding equipment, has made significant achievements in this field.

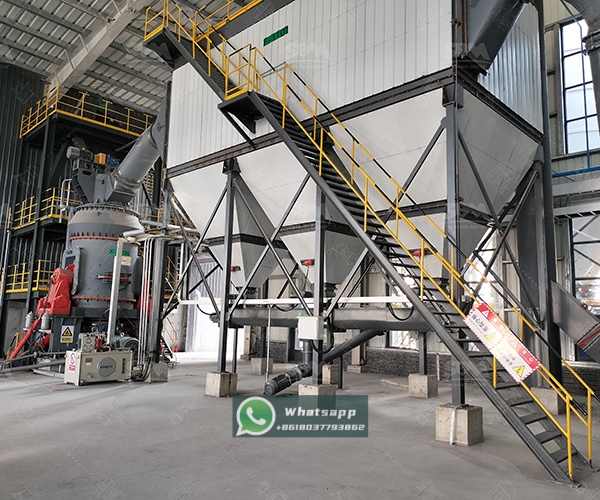

For operations requiring superior efficiency in ultra-fine powder production, Zenith’s LUM Ultrafine Vertical Mill represents a technological breakthrough. This innovative mill integrates grinding, drying, classifying, and conveying into a single compact unit, offering exceptional performance for demanding applications.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The LUM series features intelligent control systems that automatically adjust operational parameters to maintain optimal classification efficiency. Its advanced rotor design ensures sharp cuts and high classification accuracy, while the integrated approach minimizes space requirements and reduces energy consumption compared to traditional separate grinding and classification systems.
Beyond equipment selection, proper system configuration and operation are essential for maximizing efficiency. The relationship between the grinder and classifier must be carefully balanced. An underloaded classifier will have poor efficiency, while an overloaded one will allow coarse particles to contaminate the product.
For operations not requiring the integrated approach of the LUM mill but still demanding high classification efficiency, Zenith’s XZM Ultrafine Grinding Mill offers an excellent solution. Particularly suitable for soft to medium-hard materials with moisture content below 6%, the XZM mill can achieve remarkable fineness ranging from 325 to 2500 mesh.
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) |
|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 |
Regular maintenance of classifier components is another critical aspect often overlooked. Rotor blades, guide vanes, and housing liners should be inspected periodically for wear. Even minor wear can significantly impact classification sharpness and efficiency. Implementing a proactive maintenance schedule based on operating hours and material abrasiveness can prevent gradual efficiency degradation.

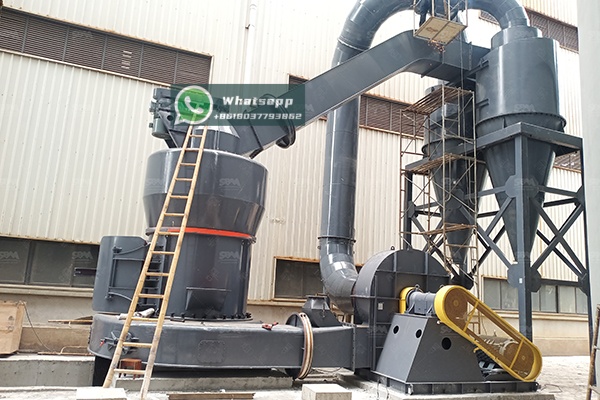

Modern classification systems benefit tremendously from advanced control strategies. Implementing automated control systems that continuously monitor and adjust key parameters such as rotor speed, air volume, and feed rate can maintain optimal efficiency despite variations in feed material characteristics.
These systems typically use particle size analyzers to provide real-time feedback on product quality, enabling immediate adjustments to maintain the target particle size distribution. The integration of such intelligent control systems in Zenith’s grinding equipment exemplifies how modern technology can optimize classification efficiency while reducing operator intervention.
Maximizing the efficiency of your air classification system requires a comprehensive approach that considers equipment selection, system configuration, operational practices, and maintenance protocols. The integration of advanced grinding technologies like Shanghai Zenith’s LUM Ultrafine Vertical Mill and XZM Ultrafine Grinding Mill can provide significant advantages in achieving superior classification performance.
By understanding the fundamental principles of air classification, implementing appropriate technologies, and maintaining optimal operating conditions, processors can achieve substantial improvements in product quality, energy efficiency, and overall operational economics. In today’s competitive market, where product specifications are increasingly stringent and energy costs continue to rise, optimizing classification efficiency is not just an option—it’s a necessity for sustainable operation and business success.
