In today’s competitive manufacturing landscape, factory space has become one of the most valuable and constrained resources. As companies strive to increase production capacity and diversify their product lines, they often face the physical limitation of their existing facilities. Expanding factory footprints through new construction is not only capital-intensive but also time-consuming, making it an impractical solution for many businesses. This challenge is particularly acute in the mineral processing and powder production industries, where traditional grinding equipment often requires significant floor area and complex installation procedures.
The limitations of factory space impact operational efficiency in multiple ways. Cramped working conditions can hinder material flow, create safety hazards, and limit the scalability of production lines. Furthermore, inefficient space utilization often translates to higher operational costs, longer material handling times, and reduced overall productivity. However, innovative equipment design and strategic planning can transform these constraints into opportunities for optimization.
One of the most effective strategies for overcoming space limitations is the adoption of vertical grinding mill technology. Unlike traditional horizontal mills that spread across factory floors, vertical mills utilize the often-underutilized vertical dimension of industrial facilities. This approach not only conserves valuable floor space but also streamlines the entire production process through integrated functionality.
Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore grinding equipment with significant achievements in ultra-fine powder grinding, has developed sophisticated solutions specifically designed to address space constraints. Their research and development efforts have focused on creating equipment that delivers maximum production capacity within minimal physical footprints.
Traditional grinding setups often require multiple separate machines for crushing, grinding, classification, drying, and material conveying—each consuming additional space and requiring complex interconnections. The modern approach consolidates these functions into single, highly efficient units that dramatically reduce the overall equipment footprint while maintaining or even enhancing production capabilities.
The LM Vertical Grinding Mill series from Shanghai Zenith represents a breakthrough in this integrated approach. By combining five essential functions—crushing, grinding, powder selection, drying, and material conveying—into a single machine, it eliminates the need for multiple standalone units and the space they would otherwise occupy. This consolidation not only saves floor space but also reduces energy consumption and simplifies operational management.
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
As the table demonstrates, these vertical mills offer substantial production capacities ranging from 10 to 170 tons per hour while maintaining compact physical profiles. The vertical orientation allows for easier material flow through gravity assistance, reducing the need for additional conveying equipment and the space it requires.
For operations requiring even finer powder production, space constraints present additional challenges. Traditional ultrafine grinding systems often involve complex multi-stage processes with numerous components that consume significant factory area. Modern solutions address this through intelligent design that maintains production quality while minimizing spatial requirements.

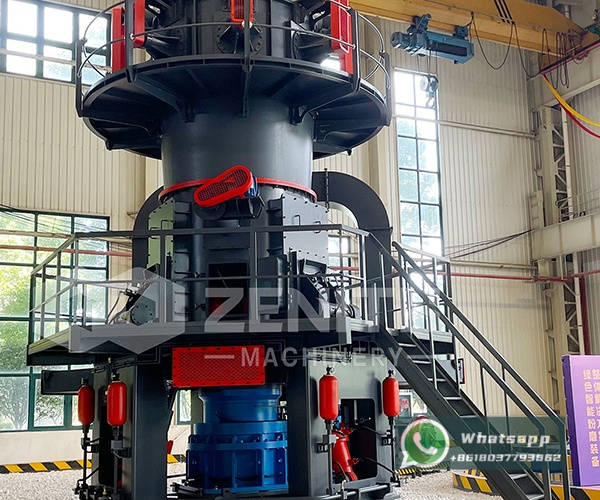

The LUM Ultrafine Vertical Mill series exemplifies this approach, integrating grinding, drying, classifying, and transportation functions within a compact footprint. These mills are specifically engineered to produce products with high content of end-fines while occupying minimal space. The intelligent control systems further enhance space efficiency by reducing the need for extensive control rooms and operator stations.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
This combination of compact design and high-performance capabilities makes the LUM series particularly valuable for facilities where space premium limits equipment options without compromising on product quality requirements.

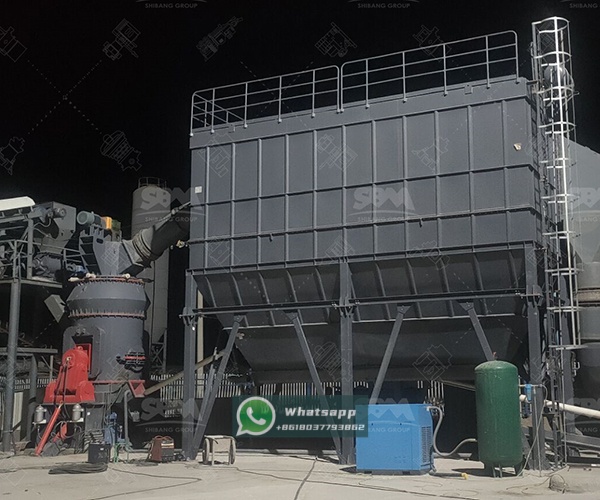

Beyond equipment selection, strategic facility layout plays a crucial role in overcoming space limitations. The compact nature of modern grinding mills enables more flexible plant configurations that optimize material flow and operational efficiency. Several key principles should guide this planning process:
Vertical Integration: Arrange equipment to utilize vertical space through multi-level platforms and mezzanines, particularly when implementing vertical grinding mills.
Modular Design: Implement modular production units that can be easily reconfigured or expanded as production needs change, without requiring significant additional space.
Streamlined Material Flow: Design layouts that minimize material handling distances and eliminate unnecessary transfer points, reducing the space dedicated to conveying systems.
Shared Infrastructure: Consolidate auxiliary systems such as dust collection, power distribution, and control systems to serve multiple production lines from centralized locations.
The advantages of implementing space-optimized grinding equipment extend far beyond mere footprint reduction. Companies that adopt these solutions typically experience multiple economic benefits:
Reduced Capital Investment: By requiring less floor space, these systems lower construction costs for new facilities or enable companies to avoid expensive expansion projects.
Lower Operating Costs: Compact, integrated systems typically consume less energy than multiple separate units and require fewer operators to manage.
Enhanced Flexibility: The smaller footprint of modern grinding mills allows companies to maintain multiple production lines for different materials within the same facility, increasing operational flexibility.
Future-Proofing: Space-efficient designs leave room for future expansion or the addition of complementary equipment as business needs evolve.
A practical example illustrates the transformative potential of space-optimized grinding technology. A mineral processing facility facing severe space constraints needed to increase production capacity by 40% without expanding their existing building. By replacing their traditional horizontal mills with Shanghai Zenith’s LM Vertical Grinding Mills, they achieved multiple benefits:
The vertical installation reduced the equipment footprint by approximately 60% while increasing production capacity by the required 40%. The integrated design eliminated three separate processing units and associated conveying systems, freeing up additional space for raw material storage and finished product handling. The simplified material flow reduced energy consumption by 15% and decreased operational staffing requirements by 25%.
This case demonstrates how strategic equipment selection can transform space constraints from operational limitations into catalysts for efficiency improvements and modernization.
The evolution of compact grinding solutions continues as manufacturers like Shanghai Zenith Machinery push the boundaries of equipment design. Emerging trends include:
Hybrid Systems: Combining multiple grinding technologies within single units to handle diverse material requirements without needing separate dedicated lines.
Smart Automation: Implementing advanced control systems that optimize equipment performance while reducing the space required for operator interfaces and monitoring stations.
Modular Scalability: Developing systems that can be easily scaled up or reconfigured by adding or replacing compact modules rather than requiring complete system replacements.
Energy Integration: Designing equipment that captures and reuses process energy, reducing the space needed for separate energy recovery systems.
Limited factory space need not be a barrier to production growth and operational excellence. Through strategic equipment selection, particularly the adoption of vertical grinding mills and integrated processing systems, manufacturers can transform spatial constraints into opportunities for efficiency improvement and modernization. Shanghai Zenith Machinery’s innovative grinding solutions demonstrate how advanced engineering can deliver maximum production capacity within minimal footprints, enabling companies to optimize their existing facilities rather than pursuing costly expansions.
By embracing these space-efficient technologies and the strategic planning principles that support their implementation, manufacturers can overcome one of the most persistent challenges in industrial operations while simultaneously enhancing their competitive position in the global marketplace.
