Vietnam has become one of the most promising manufacturing and industrial hubs in Southeast Asia, particularly in the ceramics sector. The increasing demand for high-quality ceramics and construction materials has led to a rising need for advanced grinding technologies capable of achieving ultra-fine particle sizes. One of the most crucial raw materials in this sector is perlite, a naturally occurring volcanic glass that, when properly processed, becomes an essential additive in ceramics for improving thermal insulation, density, and strength.
To achieve the desired fineness for ceramic applications, the grinding process of perlite must reach up to 1000 mesh or even finer in some cases. This requirement calls for high-performance grinding machinery that can deliver consistent output, superior fineness, and energy efficiency. Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of industrial grinding equipment, provides state-of-the-art milling solutions catering to such advanced requirements.
Perlite is widely utilized in the ceramic industry due to its lightweight and porous structure. After expansion, perlite becomes a valuable additive in various ceramic composites. Its inclusion enhances the porosity and thermal stability of end products, making it ideal for use in insulating bricks, lightweight tiles, and even high-temperature refractory components.
For these applications, the perlite must be ground to very fine sizes — typically between 325 mesh to 1000 mesh. This fine powder ensures better distribution and homogeneity within the ceramic matrix, ultimately improving the quality of the fired product. Thus, selecting the right grinding mill is crucial for maintaining consistent performance and efficiency in perlite preparation.
Shanghai Zenith Machinery Co., Ltd. has a robust portfolio of grinding equipment designed for various industrial materials, including perlite. Two models stand out as ideal solutions for ceramic-grade perlite grinding in Vietnam: the XZM Ultrafine Grinding Mill and the LUM Ultrafine Vertical Mill. Both machines offer high precision, intelligent control, and are capable of producing ultra-fine powders with particle sizes down to 2500 mesh.

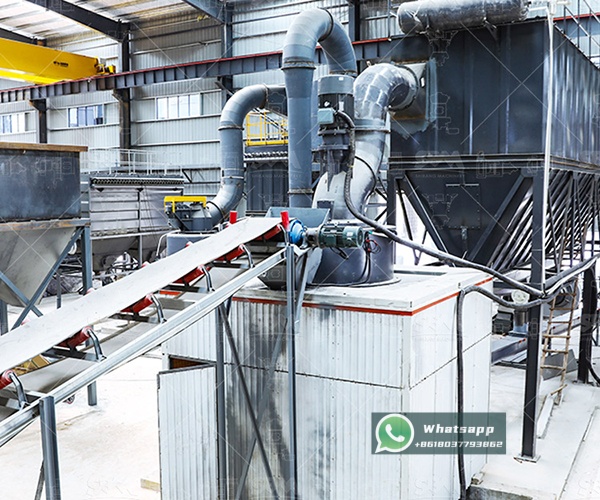

The XZM Ultrafine Grinding Mill is specifically engineered for producing superfine powder with high efficiency. It is particularly suitable for soft to medium-hard minerals with low moisture content, making it a perfect fit for perlite. The mill adopts an advanced grinding structure and classifier system that ensures consistent particle size distribution even for extremely fine materials such as 1000 mesh ceramic-grade perlite.
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) | Main Motor Power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325–2500 | 500–4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325–2500 | 5000–25000 | 315 |
For ceramic manufacturers in Vietnam, the XZM268 model offers a significant advantage due to its large capacity and ability to produce fine, stable powder at high throughput. Moreover, the adjustable classifier allows fine-tuning of particle size, ensuring consistent quality in perlite powders used for ceramic glazing and structural ceramics.

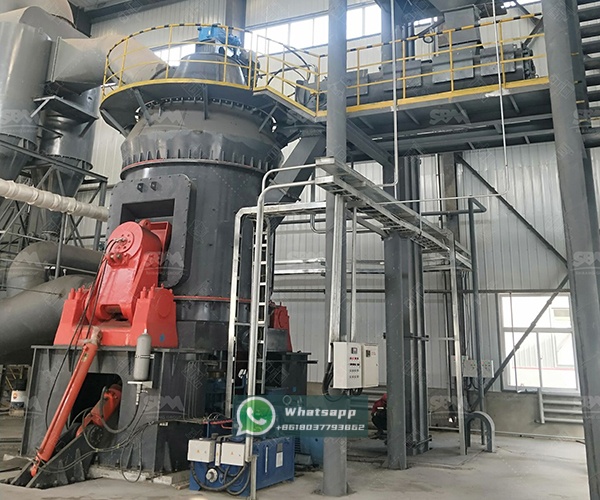

Another excellent choice for perlite grinding in ceramic applications is the LUM Ultrafine Vertical Mill. This model integrates advanced vertical grinding technology with high-precision classifiers. It is designed for large-scale production and offers continuous operation with minimal downtime.
The LUM mill provides outstanding fineness control and energy efficiency, thanks to its intelligent control system that optimizes grinding pressure and airflow in real time. With its drying, classifying, and conveying functions, it minimizes the number of auxiliary systems required, making it a cost-effective and space-saving solution for perlite processors in Vietnam.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220–250 | 1.6–11.5 | 5–30 |
| LUM1632 | 280–315 | 2.0–13.5 | 5–30 |
| LUM1836 | 355–400 | 2.3–15 | 5–30 |
When producing perlite powder with a target fineness of 1000 mesh, the LUM1836 is highly recommended due to its large grinding area, excellent efficiency, and intelligent performance control. The combination of multiple grinding rollers ensures precise results and reduces over-grinding issues commonly encountered in traditional mills.
Utilizing advanced grinding technologies from Shanghai Zenith Machinery Co., Ltd. brings remarkable operational and economic benefits for ceramic manufacturers in Vietnam:
Vietnam’s ceramics industry is rapidly expanding, fueled by infrastructure development, rising exports, and technological innovation. The demand for high-performance ceramic materials—lightweight, durable, and thermally efficient—continues to grow. Perlite, finely ground to 1000 mesh, plays a vital role in improving the production of ceramic insulators, tiles, tableware, and refractory components.
As the market becomes more competitive, manufacturers are adopting advanced grinding solutions like Zenith’s XZM Ultrafine Grinding Mill and LUM Ultrafine Vertical Mill. By implementing these technologies, Vietnamese companies can significantly improve their product quality while reducing operational costs. The fine particle size and consistent distribution achieved through these mills enable longer-lasting ceramic products with improved surface smoothness and thermal properties.
Achieving a perlite powder fineness of 1000 mesh is no longer a challenge with the advanced grinding technologies provided by Shanghai Zenith Machinery Co., Ltd. The XZM Ultrafine Grinding Mill and LUM Ultrafine Vertical Mill stand as benchmark equipment for ceramic manufacturers in Vietnam seeking to enhance production efficiency and product quality.
These machines combine precision design, smart control, and high reliability, positioning them as the best options for industrial-scale perlite grinding. As Vietnam continues to strengthen its ceramic manufacturing sector, adopting Zenith’s grinding mills will ensure greater competitiveness and sustainable growth in the years ahead.
