Perlite is a naturally occurring volcanic glass that, when heated rapidly, expands into a lightweight, porous material. Due to its low density, high surface area, and chemical inertness, expanded perlite is widely used as a functional filler in the rubber industry. It improves dimensional stability, reduces weight, enhances thermal insulation, and provides anti-blocking properties. In Lebanon, where the rubber processing sector is growing—driven by tire manufacturing, automotive components, and industrial rubber goods—the demand for high-quality, finely ground perlite powder has significantly increased. Specifically, a particle size of 800 mesh (approximately 15–18 microns) is required to ensure uniform dispersion, optimal reinforcement, and smooth surface finish in rubber compounds.
The performance of perlite as a rubber filler is directly related to its fineness and particle size distribution. At 800 mesh, perlite particles are fine enough to fill micro-voids between polymer chains, improving tensile strength and tear resistance without compromising flexibility. Coarser particles (e.g., 200–400 mesh) can cause surface roughness and reduce elongation, while ultra-fine particles (below 800 mesh) may increase viscosity and processing difficulty. Therefore, achieving a consistent 800 mesh product with a narrow particle size distribution is critical for Lebanese rubber manufacturers seeking to meet international quality standards. Moreover, the grinding process must be efficient and cost-effective to remain competitive in the regional market.
Perlite is a hard, abrasive material with a Mohs hardness of 5.5–6.5. Traditional grinding equipment such as ball mills or hammer mills often struggle to produce ultra-fine powders below 400 mesh efficiently. High energy consumption, excessive wear on grinding parts, and contamination from metal abrasion are common issues. Additionally, perlite tends to generate electrostatic charges during fine grinding, causing agglomeration and blocking of classifiers. For these reasons, selecting the right grinding mill technology is paramount. Shanghai Zenith Machinery Co., Ltd., with decades of experience in ultra-fine powder processing, offers advanced solutions specifically designed to overcome these challenges.
Based on our extensive research and field applications, we recommend two state-of-the-art mills from Shanghai Zenith for producing 800 mesh perlite powder intended for rubber filler use: the XZM Ultrafine Grinding Mill and the LUM Ultrafine Vertical Mill. Both machines are engineered for high-efficiency ultra-fine grinding, low energy consumption, and superior product quality. Below we provide technical specifications for each model.
The XZM series is specially designed for superfine powder production (325–2500 mesh). It features a multi-head classifier system that ensures precise particle size control. The mill is equipped with wear-resistant alloy grinding rollers and rings, minimizing contamination. Its closed-circuit grinding system with a high-efficiency cyclone separator and dust collector makes it ideal for processing abrasive materials like perlite. The following table lists the key technical parameters of the XZM221 model, which is well-suited for a production capacity of 500–4500 kg/h at 800 mesh.
| Parameter | Value |
|---|---|
| Working diameter (mm) | Φ800 |
| Max feed size (mm) | ≤20 |
| Final size (mesh) | 325–2500 (adjustable) |
| Output capacity (kg/h) at 800 mesh | 500–4500 |
| Main motor power (kW) | 75 |
| Classifier motor power (kW) | 15 |
| Overall dimensions (L×W×H, m) | 7.2×5.8×7.9 |

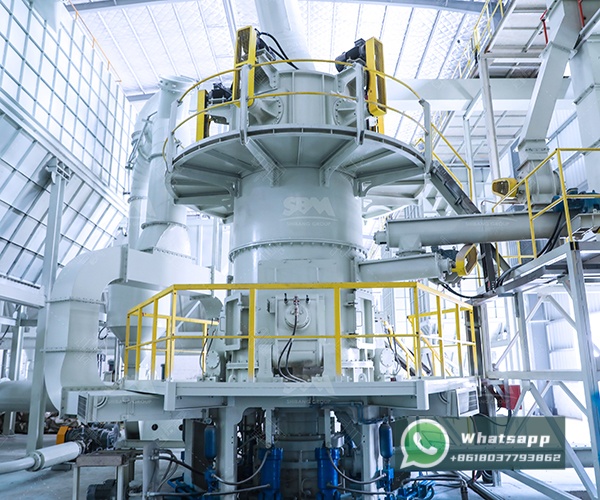

The LUM series integrates grinding, drying, classifying, and conveying into a single compact unit. It employs a vertical roller design with hydraulic pressure system, allowing for extremely high grinding efficiency and low vibration. The LUM mill is particularly advantageous for processing sticky or moist materials because of its internal hot air drying capability. For 800 mesh perlite, the LUM1836 model offers an ideal balance between capacity and fineness. Its product fineness can be adjusted down to D97 = 5–30 microns, fully covering the 800 mesh requirement (15–18 microns). The table below provides the key specifications.
| Parameter | Value |
|---|---|
| Main machine power (kW) | 355–400 |
| Capacity (t/h) at 800 mesh | 2.3–15 |
| Size distribution D97 (μm) | 5–30 (adjustable) |
| Max feed size (mm) | <30 |
| Finished product moisture | <1%% |
| Overall dimensions (L×W×H, m) | 12.5×8.2×9.5 |
To achieve optimal results, the grinding process should follow these steps: raw perlite ore (typically 5–20 mm) is first crushed by a jaw crusher to below 20–30 mm. Then it is fed into a hopper and conveyed to the grinding mill (XZM or LUM). Inside the mill, the material is ground between rollers and rings (or between roller and grinding table for LUM). The fine powder is carried by an air stream to a high-efficiency classifier, where oversize particles are returned for re-grinding. The qualified 800 mesh product is collected by a bag filter or cyclone. For rubber filler applications, additional surface treatment or drying may be performed to ensure the powder meets specific moisture and dispersion requirements.
Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China, with remarkable achievements in ultra-fine powder grinding. Our mills are already operating successfully in several Middle Eastern countries, including Lebanon. Key benefits for local processors include:
For Lebanese rubber filler manufacturers targeting 800 mesh perlite powder, the choice of grinding equipment directly impacts product quality, production cost, and market competitiveness. Shanghai Zenith’s XZM Ultrafine Grinding Mill and LUM Ultrafine Vertical Mill offer proven, reliable solutions that deliver consistent particle size, high purity, and excellent dispersibility. With our strong technical support network and spare parts availability in the region, we are confident in helping you achieve your production goals. Contact our team today to discuss a customized solution for your perlite grinding project in Lebanon.
