The Indian foundry and casting sector has expanded rapidly, and the quality of casting sand is decisive for metal components. Phosphate rock powder is increasingly used as a functional additive in molding sand formulations. To obtain a stable 200 mesh product, a professional phosphate rock grinding mill is essential. In India, producers face challenges of hard feed, fluctuating moisture, high energy costs and strict quality requirements. This article reviews the key selection criteria for phosphate rock grinding and introduces advanced solutions from Shanghai Zenith Machinery Co., Ltd.
With more than 20 years of experience in powder processing, Zenith has become an excellent manufacturer of ore grinding equipment in China. The company specializes in the research, development and production of industrial powder grinding equipment, and its machines are widely deployed in India for non-metallic mineral preparation. The MTW trapezium mill, in particular, is a proven workhorse for producing 200 mesh phosphate rock powder for casting sand.
Phosphate rock is a naturally occurring mineral rich in phosphorus compounds. In foundry applications, properly ground phosphate rock powder contributes to mold stability, surface finish and easier shake-out in certain sand systems. When the powder is milled to 200 mesh, it blends uniformly with silica sand, clay or resin binders, reducing segregation and providing consistent refractoriness.
The 200 mesh specification, equivalent to 74 microns, is widely preferred in Indian casting sand plants because it balances surface area and permeability. A high-efficiency phosphate rock grinding mill must therefore deliver narrow particle size distribution, stable fineness, and low operating cost.
Phosphate rock has moderate hardness and abrasiveness. Moisture content must be controlled before grinding; for multi-ring roller mills, feed moisture should ideally be below 6 percent. Large lumps must be crushed to correct feed size. The MTW trapezium mill accepts feed sizes up to 50 mm, simplifying pre-processing.
For casting sand, the target is usually 200 mesh with a controlled amount of coarse particles. The grinding mill must offer easy adjustment of classifier speed and air volume. Zenith mills use advanced separators to ensure that the product passing through 200 mesh reaches the required percentage while maintaining throughput.
Indian casting sand producers need capacities ranging from 3 t/h to 45 t/h, depending on plant size. Energy cost is a major factor. Reduced power consumption and stable operation are built into Zenith’s design, including internal air circulation, self-lubricating systems, and wear-resistant liners.
Continuous three-shift operation requires robust components and easy maintenance. Zenith’s grinding mills are engineered with classified drying, conveying and powder selecting functions, which reduces auxiliary equipment and lowers civil engineering cost.
Zenith is an excellent manufacturer of ore grinding equipment in China and has achieved great success in ultra-fine powder processing. The main product family includes MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill and Hammer Mill. For a 200 mesh phosphate rock grinding mill for casting sand in India, the MTW trapezium mill is particularly suitable because it combines large capacity, high fineness and compact structure.

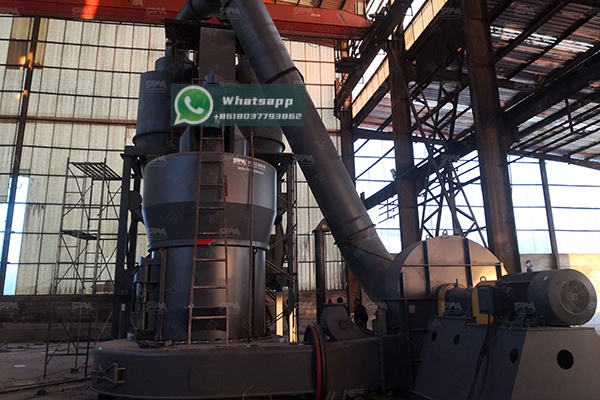

The MTW trapezium mill has multiple patents and is ideal for processing phosphate rock. Its final fineness can be adjusted from 1.6 mm to 0.045 mm, so 200 mesh (0.075 mm) is easily achievable. The main machine adopts bevel gear transmission, which is more efficient than traditional gearbox drives. The curved air duct and large-volume cyclone collector improve recovery and reduce dust emission.
| Model | Max Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 | 55 |
| MTW110Z | <30 | 1.6-0.045 | 3-10 | 55 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 | 110 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 | 200 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 | 315 |
For casting sand preparation, the MTW138Z and MTW175G models offer the best balance of power and output. With a final fineness set to 200 mesh, the actual capacity can be sustained at the higher side of the range because 74 micron is coarser than the mill maximum fineness of 45 micron. The trapezium-shaped grinding rollers and ring reduce slip of feed material and improve grinding efficiency.
First, the in-built classifier ensures extremely uniform particle size. This is essential for casting sand because oversized particles create surface defects on castings. Second, the mill can be arranged with hot air for simultaneous drying of slightly moist phosphate rock. Third, the vertical and compact design reduces floor space and makes installation easier in existing casting sand plants. Fourth, the hydraulic or manual pressure device allows quick adjustment of grinding pressure to adapt to different rock hardness. Finally, the main machine and fan are driven by independent motors, enabling process optimization that lowers specific energy consumption.
For high-capacity Indian operations that require 200 mesh phosphate rock powder in large tonnage, Zenith’s LM vertical grinding mill integrates crushing, grinding, drying and material conveying in one unit. It has a small footprint, low vibration and high drying capacity. The vertical mineral mill series is especially suitable for medium-hard minerals. The table below lists the main technical parameters.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
The output fineness range of 170-40 μm covers 200 mesh. LM series can handle larger feed sizes and offers outstanding drying performance. It is an excellent choice when the plant demands a single high-capacity unit and wants to simplify the material handling system.

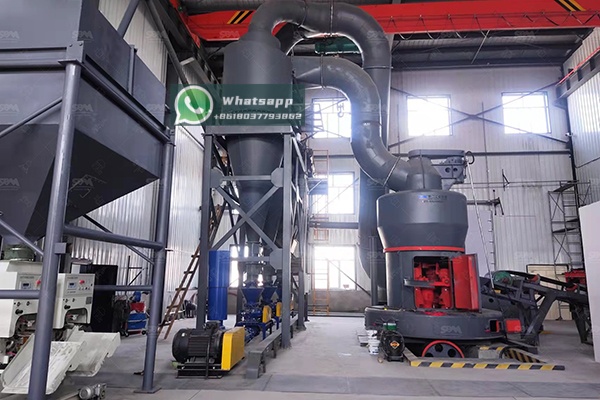

A complete phosphate rock grinding line includes a jaw crusher, bucket elevator, vibrating feeder, MTW trapezium grinding mill, classifier, cyclone collector and pulse bag filter. The rock is first reduced to below 30-50 mm, then fed uniformly into the mill. Hot air can be introduced from the mill inlet if needed. The ground powder is carried to the separator, and the coarse particles are returned for regrinding. Qualified 200 mesh powder goes to a silo or directly into the sand mixing system.
For India, a packaged solution from Zenith reduces engineering time. Because many phosphate rock deposits are located in dry states, water scarcity makes the dry grinding process highly attractive. No water is used in milling, and the closed circuit minimises dust.
India’s foundry industry is growing, driven by automotive, railway and machinery manufacturing. The demand for high-grade casting sand is rising. By investing in a reliable phosphate rock grinding mill, entrepreneurs can produce 200 mesh powder with consistent quality. They can also diversify to other minerals such as limestone, dolomite and gypsum because the MTW mill can handle many non-metallic minerals.
Operators should check the feed moisture, adjust the air volume regularly, and inspect grinding rollers and rings for wear. Zenith provides spare parts and after-sales support to Indian customers, ensuring the mill maintains capacity and fineness throughout its service life. Training and commissioning are part of the company’s service.
Phosphate rock grinding for casting sand in India at 200 mesh requires a mill that is robust, energy-efficient, and precise. Shanghai Zenith Machinery Co., Ltd. offers proven solutions with MTW Trapezium Grinding Mill and LM Vertical Grinding Mill. These machines can turn raw phosphate rock into high-quality 200 mesh powder for the casting industry. With advanced technology, compact layout and low operating cost, Zenith is ready to support the next generation of Indian foundry innovators.
