Raymond Mill, also known as Raymond Roller Mill, is one of the most widely used industrial grinding equipment for processing non-metallic minerals with medium to low hardness and Mohs scale below 7. As an excellent manufacturer of ore grinding equipment, Shanghai Zenith Machinery Co., Ltd. has made significant achievements in the field of ultra-fine powder grinding, specializing in the research, development, and production of industrial powder grinding equipment including Raymond Mill.

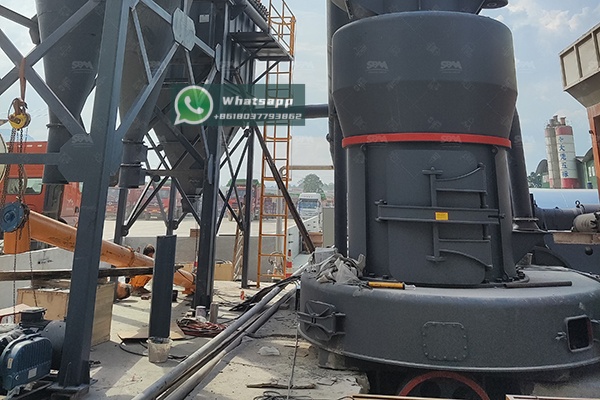

The Raymond Mill operates on the principle of grinding materials between stationary and moving components. The main grinding chamber contains rollers that rotate against a grinding ring, with materials being fed into the center of the grinding chamber and spread outward by centrifugal force. The ground materials are then carried by the air current to the classifier, where oversized particles are returned for regrinding while properly sized particles proceed to collection.
Proper daily maintenance is crucial for ensuring optimal performance and extending the service life of your Raymond Mill. Begin each day with a comprehensive visual inspection of the entire system, checking for any unusual vibrations, abnormal noises, or visible wear. Monitor the lubrication system to ensure proper oil levels and check for any leaks. Verify that all safety guards are in place and secure.
During operation, regularly check the grinding pressure and adjust as necessary. Monitor the temperature of bearings and other critical components, ensuring they remain within acceptable operating ranges. Keep a maintenance log to track performance metrics and any issues that arise during operation.
On a weekly basis, perform a more thorough inspection of all mechanical components. Check the wear condition of grinding rollers and grinding rings, measuring thickness and documenting any significant wear. Inspect the blade wear in the classifier and check for proper clearance. Examine all bolts and fasteners for tightness, paying special attention to foundation bolts and mounting hardware.
Clean the lubrication system filters and check oil quality. Inspect the drive belts for proper tension and wear. Check the electrical connections and control system components for any signs of overheating or corrosion. Verify that all safety interlocks and emergency stop systems are functioning correctly.

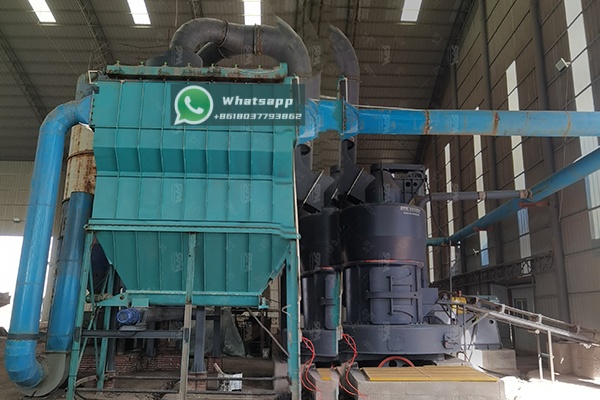

Monthly maintenance should include a comprehensive inspection of all major components. Disassemble and inspect the grinding roller assembly, checking for wear on the roller shells and shafts. Examine the grinding ring for cracks or excessive wear. Inspect the classifier blades and shaft for wear and proper alignment.
Check the fan blades and housing for wear and buildup of material. Inspect the ductwork for leaks or excessive wear. Perform vibration analysis on the main motor and fan to detect any developing issues. Calibrate all instrumentation and control systems to ensure accurate operation.
Understanding common operational issues and their solutions is essential for maintaining Raymond Mill performance. Reduced output capacity often indicates worn grinding components or improper air flow. Excessive vibration may result from unbalanced rotating components or foundation issues. Overheating bearings typically signal lubrication problems or misalignment.
When troubleshooting, always begin with the simplest solutions before moving to more complex repairs. Check lubrication levels and quality first, then inspect for obvious wear or damage. Verify proper operating parameters and adjust as necessary. Document all issues and solutions for future reference.
For optimal performance and extended equipment life, we recommend using genuine replacement parts specifically designed for your Raymond Mill. Shanghai Zenith Machinery offers comprehensive spare parts support and technical assistance. Our engineers can also recommend upgrade options to improve efficiency and productivity.
For operations requiring higher capacity or finer grinding capabilities, we recommend considering our advanced grinding solutions. The MTW Trapezium Grinding Mill represents the next generation of grinding technology with multiple patents and superior performance characteristics.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 | 110 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 | 200 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 | 315 |
The lubrication system is critical to Raymond Mill operation and requires regular attention. Use only recommended lubricants and follow manufacturer specifications for viscosity and change intervals. Monitor oil temperature and pressure during operation, noting any significant changes that might indicate developing problems.
Regularly inspect lubrication lines for leaks or damage. Clean filters according to the recommended schedule and replace when necessary. For mills operating in extreme conditions, consider more frequent lubrication system maintenance to prevent premature component failure.
Electrical system maintenance should be performed by qualified personnel following all safety protocols. Regularly inspect motor connections, control panel components, and wiring for signs of wear or damage. Check motor amperage during operation to ensure it remains within specified limits.
Test safety systems regularly, including emergency stops and overload protection. Keep electrical panels clean and free from dust accumulation. Document all electrical maintenance and keep records of motor performance for trend analysis.

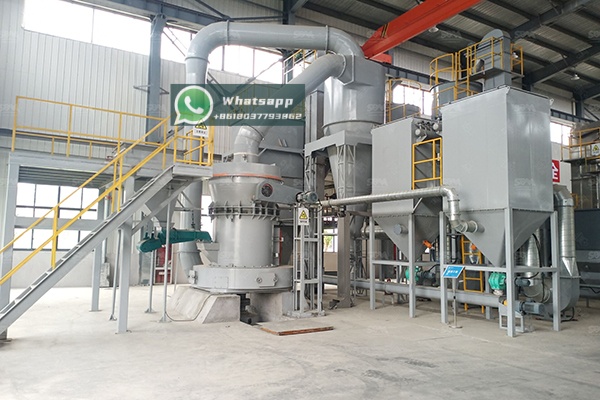

Seasonal changes can affect Raymond Mill performance, particularly in regions with significant temperature variations. In colder climates, ensure proper heating of lubrication systems and consider viscosity adjustments for lower temperatures. In humid environments, pay extra attention to electrical components and moisture protection.
During seasonal shutdowns, perform comprehensive inspections and necessary repairs. This is an ideal time for major component replacement or upgrades. Consider implementing preventive maintenance programs that align with seasonal production schedules.
For operations looking to improve efficiency and reduce maintenance requirements, upgrading to modern grinding technology offers significant benefits. Shanghai Zenith Machinery’s LUM Ultrafine Vertical Mill integrates grinding, drying, classifying, and transportation in a compact design with intelligent control systems.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
Comprehensive documentation is essential for effective maintenance management. Maintain detailed records of all maintenance activities, including dates, work performed, parts replaced, and personnel involved. Track equipment performance metrics to identify trends and anticipate future maintenance needs.
Implement a computerized maintenance management system (CMMS) if possible, to streamline record keeping and scheduling. Use maintenance data to optimize spare parts inventory and improve maintenance planning. Share maintenance records with equipment suppliers to facilitate technical support and warranty claims.
Safety must be the highest priority in all maintenance activities. Always follow lockout/tagout procedures before beginning any maintenance work. Use proper personal protective equipment including safety glasses, gloves, and hearing protection when appropriate.
Ensure all guards are in place before operating the equipment. Never attempt to clear blockages or perform adjustments while the mill is running. Establish clear safety protocols and provide regular training to all maintenance personnel. Conduct safety audits periodically to identify and address potential hazards.
Proper maintenance is essential for maximizing Raymond Mill performance, extending equipment life, and ensuring operational safety. By implementing a comprehensive maintenance program that includes daily inspections, regular servicing, and proper documentation, operators can significantly reduce downtime and maintenance costs.
Shanghai Zenith Machinery Co., Ltd. remains committed to supporting our customers with technical expertise, genuine spare parts, and advanced grinding solutions. Whether maintaining existing Raymond Mills or upgrading to more modern equipment like the MTW Trapezium Grinding Mill or LUM Ultrafine Vertical Mill, our team stands ready to assist with all your grinding equipment needs.
