In modern industrial processes, particularly in mineral processing, pharmaceuticals, chemicals, and construction materials manufacturing, accurate particle size analysis is crucial for product quality control, process optimization, and energy efficiency. Traditional offline sampling methods often suffer from time delays, sampling errors, and lack of real-time process control capabilities. While online particle size analyzers promise continuous monitoring, they frequently encounter challenges with accuracy, reliability, and integration with grinding processes.
Particle size distribution directly impacts numerous material properties including flowability, reactivity, dissolution rates, and mechanical strength. In mineral processing, improper particle size can lead to significant losses in recovery rates during flotation or leaching processes. In cement production, incorrect particle size distribution affects setting time and ultimate strength. The economic implications of inaccurate particle size analysis can be substantial, with potential losses running into millions of dollars annually for large-scale operations.
Traditional laboratory-based analysis methods, while accurate, introduce significant time delays between sampling and results. This latency prevents real-time process adjustments, leading to extended periods of suboptimal operation. Online analyzers attempt to bridge this gap but often struggle with representative sampling, calibration drift, and the harsh environmental conditions typical of industrial grinding operations.
Several technical challenges contribute to inaccurate online particle size measurements:
The foundation of accurate particle size analysis begins with consistent grinding performance. Modern grinding equipment incorporates sophisticated control systems and optimized mechanical designs to produce more uniform particle size distributions, thereby reducing the burden on downstream analysis systems.
Shanghai Zenith Machinery Co., Ltd., as an excellent manufacturer of ore grinding equipment, has made significant achievements in the field of ultra-fine powder grinding. Their specialized research, development, and production of industrial powder grinding equipment provides robust solutions for achieving precise particle size control.

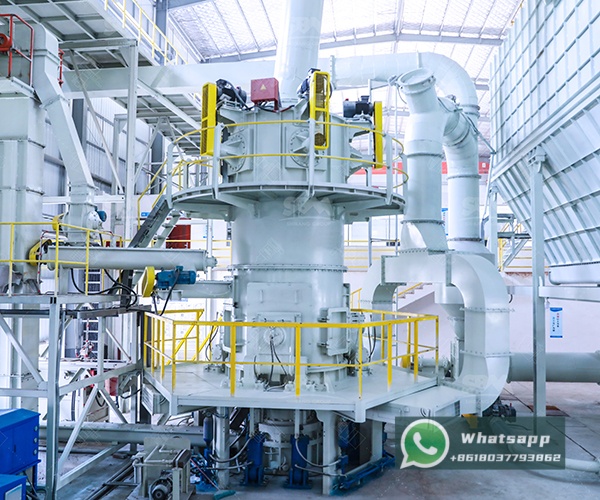

For applications requiring ultra-fine powders with tight particle size distributions, the LUM Ultrafine Vertical Mill represents a technological breakthrough. This advanced mill integrates grinding, drying, classifying, and transportation functions while occupying minimal space. Its intelligent control system enables precise adjustment of operating parameters to maintain consistent product quality.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The LUM series excels in producing materials with high content of end-fines and maintains remarkable stability in output quality. This consistency significantly reduces the challenges associated with particle size analysis by minimizing variations in the grinding process itself.
For operations requiring superfine powder production across a wide range of materials, the XZM Ultrafine Grinding Mill offers exceptional performance. Suitable for grinding soft to medium-hard materials with moisture content below 6%, this mill can achieve output fineness ranging from 325 to 2500 mesh, providing tremendous flexibility for various industrial applications.
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) |
|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 |
The most effective solution to inaccurate online particle size analysis involves an integrated approach that combines advanced grinding technology with smart analysis systems. Key elements of this approach include:
A mineral processing plant struggling with inconsistent flotation recovery rates implemented Zenith’s LUM Ultrafine Vertical Mill to replace their aging ball mill system. The previous system produced wide variations in particle size distribution, which complicated online analysis and process control. After installation of the LUM1525 model, the plant reported:
The consistent output from the LUM mill enabled more reliable operation of their online particle size analysis system, which in turn allowed for tighter process control and optimization.
The convergence of grinding technology and particle size analysis continues to evolve with several promising trends:
Solving the problem of inaccurate online particle size analysis requires a holistic approach that addresses both the measurement technology and the fundamental grinding process. Advanced grinding equipment, such as Shanghai Zenith Machinery’s LUM Ultrafine Vertical Mill and XZM Ultrafine Grinding Mill, provides the foundation for consistent particle size distributions that make accurate analysis achievable. By integrating these advanced grinding solutions with modern analysis technologies and smart control systems, industrial operations can achieve unprecedented levels of product quality control and process efficiency.
The journey toward reliable online particle size analysis is not merely about improving measurement devices but about creating an integrated system where grinding stability, representative sampling, and intelligent data processing work in harmony. As technology continues to advance, the gap between laboratory accuracy and online convenience will continue to narrow, enabling new possibilities in process optimization and quality assurance across numerous industries.
