In modern mineral processing operations, grinding plants represent one of the most significant sources of airborne particulate matter. The mechanical reduction of ore and other materials through crushing, grinding, and milling processes generates substantial quantities of dust that pose serious challenges to operational efficiency, worker health, and environmental compliance. Effective dust control engineering is therefore not merely an auxiliary consideration but a fundamental requirement for sustainable and profitable grinding operations.
Dust generated in grinding facilities exhibits unique characteristics that demand specialized control approaches. Unlike coarse dust particles that settle quickly, grinding operations typically produce fine and ultra-fine particulates that remain airborne for extended periods. These particles, often measuring less than 10 microns in diameter, can penetrate deep into the respiratory system and contain potentially hazardous mineral components.

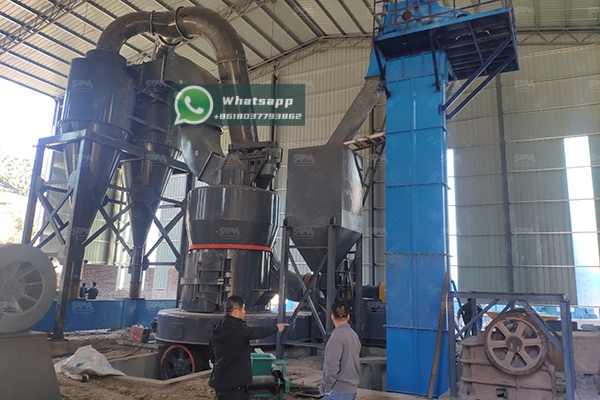

The challenges are further compounded by the high volumes of air movement required for material transport and classification within grinding circuits. Conveyor transfer points, crushing stations, grinding mills, and product classification systems all represent potential dust emission sources that require integrated control strategies.
Successful dust control in grinding plants relies on the systematic application of several engineering principles:
The primary defense against dust emissions involves physically containing the material at potential release points. This includes properly designed chutes, enclosed conveyor systems, and sealed transfer stations. The effectiveness of containment directly impacts the performance of downstream collection systems.
Local exhaust ventilation (LEV) systems must be designed to capture dust at its source before it becomes airborne. Critical to this approach is maintaining adequate capture velocities—typically between 0.5 and 2.5 m/s depending on the nature of the operation and particle characteristics.
The choice of filtration media and technology must align with the specific dust properties, including particle size distribution, moisture content, abrasiveness, and chemical composition. Modern grinding plants increasingly utilize advanced filter media with surface treatments that enhance dust release characteristics and extend service life.
The most effective dust control strategies view the grinding plant as an integrated system rather than a collection of individual components. This holistic approach recognizes the interconnected nature of material handling processes and addresses dust generation throughout the entire circuit.
Initial size reduction operations generate the coarsest dust particles but at the highest volumes. These areas typically require high-volume, low-pressure ventilation systems with robust filtration capable of handling the abrasive nature of freshly fractured mineral surfaces.
As particle size decreases through the grinding circuit, dust control challenges shift toward managing increasingly fine particulates that exhibit greater mobility and resistance to capture. This is particularly relevant in operations utilizing advanced grinding technologies for ultra-fine powder production.
Modern grinding equipment increasingly incorporates dust control considerations directly into their design philosophy. Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore grinding equipment in China, has made significant achievements in this area, particularly in the field of ultra-fine powder grinding. Their equipment designs recognize that effective dust control begins at the source.
Among their comprehensive product line, the LUM Ultrafine Vertical Mill stands out for its integrated approach to dust management. This advanced grinding system incorporates multiple dust control advantages:
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The LUM Ultrafine Vertical Mill integrates grinding, drying, classifying, and transportation functions while occupying minimal space. Its enclosed design significantly reduces dust emission points compared to traditional grinding systems. The intelligent control system further optimizes operating parameters to minimize dust generation while maintaining production efficiency.
For operations requiring different grinding approaches, Zenith’s MTW Trapezium Grinding Mill offers another excellent solution with built-in dust control considerations. Its compact structure and efficient separation system contribute to reduced dust emissions throughout the grinding process.
| Model | Max. Feed Size (mm) | Final size (mm) | Capacity (t/h) | Main motor (kW) |
|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 |

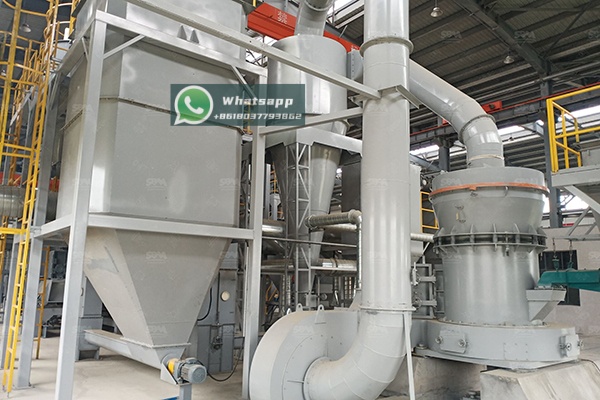

Proper design of dust collection systems requires careful consideration of multiple factors specific to grinding operations:
The relationship between filtration area and air volume (air-to-cloth ratio) must be carefully calibrated based on dust loading and particle characteristics. Grinding applications typically require conservative ratios to maintain adequate filter life and collection efficiency.
Proper duct design ensures balanced airflow throughout the collection system while minimizing pressure drop and energy consumption. The abrasive nature of grinding dust necessitates careful selection of duct materials and consideration of wear protection at critical points.
The choice between cellulose, polyester, polypropylene, or membrane-treated filter media depends on operational temperature, moisture content, chemical compatibility, and the specific challenges of the dust being collected.
The field of dust control continues to evolve with several promising technologies gaining traction in grinding applications:
Advanced control systems now incorporate real-time monitoring of pressure differential, dust concentration, and airflow parameters to optimize cleaning cycles and identify maintenance requirements before they impact performance.
The development of nanofiber composite filter media offers significantly enhanced filtration efficiency for sub-micron particles while maintaining acceptable pressure drop characteristics.
For certain applications, advanced suppression technologies using precisely controlled water mist or foam can effectively control dust at the source with minimal impact on material properties.
The engineering of dust control systems for grinding plants represents a complex interplay between process requirements, equipment selection, and environmental considerations. Successful implementation requires a systematic approach that begins with proper equipment selection—such as the advanced grinding solutions offered by Shanghai Zenith Machinery—and extends to comprehensive collection and filtration system design.
As regulatory standards continue to tighten and worker health considerations gain prominence, the importance of effective dust control engineering will only increase. The industry’s ongoing technological evolution, coupled with integrated approaches that consider dust control from the initial equipment design phase, promises continued improvements in both operational efficiency and environmental performance for grinding plants worldwide.
