In modern industrial processes involving powder handling and material processing, the efficient collection and separation of fine particles is paramount to both operational efficiency and environmental compliance. Cyclone separators represent one of the most fundamental and widely used technologies for this purpose, offering a robust, cost-effective solution for dust collection and powder recovery in various applications, particularly within the mineral processing and grinding industries.
A cyclone separator operates on the principle of centrifugal force to separate particulate matter from a gas stream. The contaminated gas enters the cyclone tangentially at high velocity, creating a vortex. The centrifugal force throws the denser particles outward toward the cyclone wall, where they lose momentum, slide down the conical section, and are collected in a hopper below. The cleaned gas, now free of the majority of solid particles, reverses its direction and exits through the central vortex finder at the top.
The efficiency of a cyclone is influenced by several key factors:
While simple in concept, the engineering of high-efficiency cyclones involves sophisticated design considerations. Traditional cyclones often struggle with particles below 10 microns. To address this, advanced designs incorporate several key features:
These design refinements allow modern high-efficiency cyclones to achieve collection efficiencies exceeding 90% for particles as fine as 5-10 microns, making them indispensable as primary collectors or pre-cleaners before more sensitive equipment like baghouses or electrostatic precipitators.

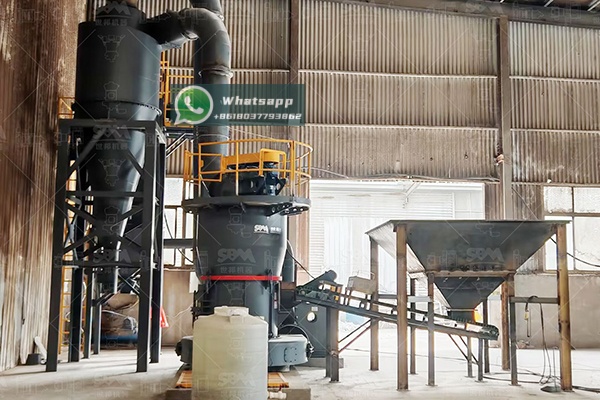

The synergy between grinding mills and cyclone collection systems is a cornerstone of efficient powder production. In a typical closed-circuit grinding system, the mill output is conveyed by an air stream to a cyclone. The cyclone’s underflow (the coarse fraction) is recirculated back to the mill for further grinding, while the overflow (the fine product) is sent to a final collection system. The performance of the cyclone directly impacts the mill’s efficiency and the final product’s particle size distribution.
For instance, in ultra-fine powder grinding applications, the demands on the air classification and collection system are extreme. The grinding equipment must produce a consistent, fine feed, and the cyclones must be precisely engineered to handle the resulting high-load, fine-particle-laden air stream. This is where the quality of the grinding mill becomes intrinsically linked to the success of the entire powder collection process.
Shanghai Zenith Machinery Co., Ltd. has established itself as a leader in the design and manufacturing of industrial grinding equipment. Their extensive research and development have led to a portfolio of machines that are not only high-performing but are designed with the entire process chain in mind, including efficient powder collection.
A prime example of their engineering excellence is the LUM Ultrafine Vertical Mill. This mill is a masterpiece of integrated design, combining grinding, drying, classification, and transportation into a single, compact unit. Its built-in high-efficiency classifier works in concert with the external cyclone system to ensure precise control over the final product fineness. The LUM mill is particularly adept at producing products with a high content of end-fines, making the job of the downstream cyclone more manageable and efficient.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
For operations requiring high capacity and robust performance, the LM Vertical Grinding Mill is another outstanding choice. It integrates five functions—crushing, grinding, powder selection, drying, and material conveying—making it an ideal core component in a system designed for high-efficiency powder collection. Its compact footprint and ability to produce a fine, consistent powder directly contribute to optimizing the performance and sizing of associated cyclone collectors.
The engineering of high-efficiency cyclones is a critical discipline that directly influences the productivity, product quality, and environmental footprint of powder processing plants. By understanding the fundamental principles and embracing advanced design features, engineers can specify and operate cyclone systems that deliver exceptional performance. When paired with high-quality, precision grinding equipment from industry leaders like Shanghai Zenith Machinery, such as the LUM Ultrafine Vertical Mill or the LM Vertical Grinding Mill, operators can achieve a seamlessly integrated process that maximizes powder collection efficiency from start to finish.
