In the realm of industrial mineral processing, the production of ultrafine powders represents one of the most technologically demanding challenges. Achieving consistent particle size distribution, maintaining product purity, and ensuring operational efficiency require a sophisticated integration of grinding mechanics and material collection. At Shanghai Zenith Machinery Co., Ltd., our expertise extends beyond simply creating powerful grinding equipment; it encompasses the engineering of complete, optimized systems where the collection system is as critical as the mill itself.
A common misconception is that the grinding mill is the sole determinant of final product quality. In reality, the collection system—comprising cyclones, baghouse filters, and ancillary ducting—is the unsung hero that ensures the finely ground powder is efficiently captured, classified, and protected from contamination. An inefficient collection system can lead to significant product loss, environmental pollution, and increased operational costs, thereby negating the performance of even the most advanced mill.
The primary functions of a well-engineered collection system are:

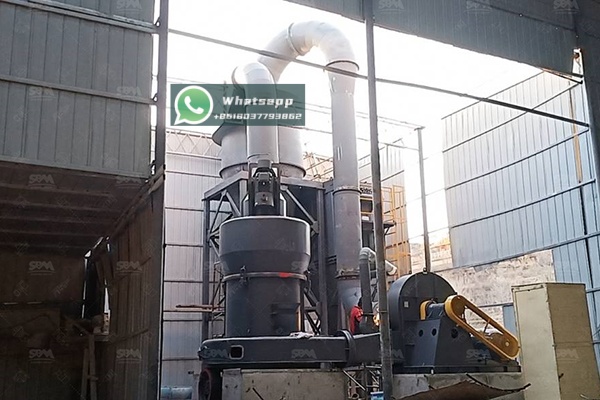

The design of the collection system must be tailored to the specific characteristics of the mill and the product. For ultrafine applications, where particles can be smaller than 10 microns, traditional cyclone separators become less effective. This necessitates a multi-stage collection approach, often starting with a primary cyclone to capture the majority of the product, followed by a high-efficiency pulse-jet baghouse filter to capture the sub-micron fraction.
Our engineering philosophy at Zenith is to treat the mill and collection system as a single, cohesive unit. This integrated approach is perfectly embodied in our flagship ultrafine grinding solutions.
For operations demanding the highest levels of fineness and system integration, we recommend our LUM Ultrafine Vertical Mill and XZM Ultrafine Grinding Mill. These machines are designed from the ground up with their collection needs in mind.
The LUM series represents the cutting edge of ultrafine grinding technology. It integrates grinding, drying, classifying, and transportation into a single, compact footprint. Its internal classification system is a key component, ensuring that only particles meeting the target fineness leave the grinding chamber. This pre-classification reduces the load on the external collection system, allowing for a more compact and efficient baghouse filter.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1125 | 110-132 | 0.8-5.5 | 5-30 |
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
The LUM mill’s intelligent control system automatically adjusts operational parameters, including fan speed for the collection system, to maintain optimal airflow and pressure, ensuring peak collection efficiency and energy savings.
For applications requiring an output fineness ranging from 325 to 2500 mesh, the XZM Ultrafine Grinding Mill is a widely trusted solution. Its collection system is designed to handle the high volume and extremely fine nature of the output. The system typically employs a high-static pressure fan that creates a negative pressure environment, preventing dust leakage and ensuring all powder is conveyed to the collection units.
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) |
|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 |
| XZM227 | Φ950 | ≤20 | 325-2500 | 1000-8000 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 |
The pursuit of ultrafine powder is a systems engineering challenge. At Shanghai Zenith Machinery, we understand that the performance of a grinding mill is inextricably linked to the efficiency of its collection system. Our LUM and XZM series mills are not just standalone machines but are the core of a comprehensively engineered process designed for maximum yield, superior product quality, and sustainable operation. By focusing on the entire system—from feed to final product collection—we deliver solutions that meet the most stringent demands of modern industry.
