In the realm of industrial powder processing, air swept mills represent one of the most efficient and technologically advanced solutions for grinding various materials into fine and ultra-fine powders. These mills combine mechanical grinding with air classification in a single unit operation, creating a highly efficient system that has revolutionized powder production across multiple industries.
Air swept mills operate on the principle of simultaneous grinding and drying, where the material is ground while being transported by a stream of air. This air stream serves multiple purposes: it transports the material through the mill, removes moisture from the product, and carries the finished powder to the collection system. The key advantage of this design is the continuous removal of fine particles, preventing over-grinding and reducing energy consumption.
The grinding mechanism typically involves rotating elements such as rollers, balls, or hammers that impact and compress the material against a stationary surface. As particles are reduced in size, the air stream carries them upward to a classification system where oversized particles are separated and returned for further grinding, while properly sized particles proceed to the collection system.
Understanding the anatomy of an air swept mill is crucial to appreciating its efficiency. The main components include:
The air swept configuration offers several distinct advantages over conventional grinding systems. The continuous removal of fine particles prevents the cushioning effect that occurs when fine material accumulates in the grinding zone, thereby maintaining grinding efficiency. The integrated drying capability makes these mills particularly suitable for materials with moderate moisture content. Additionally, the closed system design minimizes dust emissions and improves working conditions.
Energy efficiency is another significant benefit. By eliminating the need for separate drying equipment and optimizing the grinding process, air swept mills can reduce overall energy consumption by 15-30% compared to traditional grinding circuits. The compact footprint of these integrated systems also saves valuable floor space in industrial facilities.
Shanghai Zenith Machinery Co., Ltd. has established itself as a leading manufacturer of ore grinding equipment, with remarkable achievements in the field of ultra-fine powder grinding. Specializing in the research, development, and production of industrial powder grinding equipment, Zenith offers a comprehensive range of mills designed to meet various processing requirements.

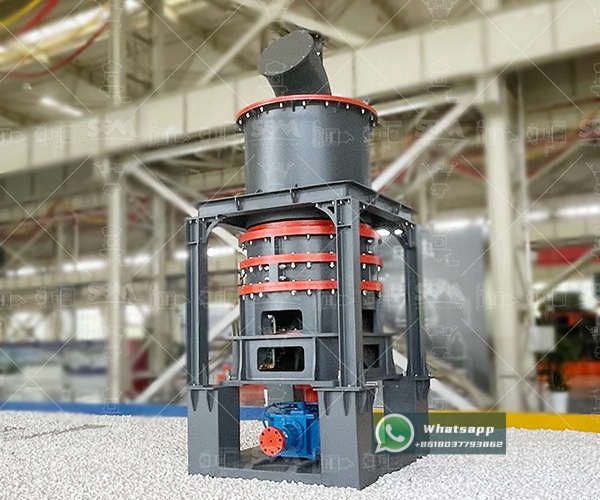

Among their extensive product portfolio, the LUM Ultrafine Vertical Mill stands out as a premier example of advanced air swept technology. This mill integrates multiple functions including grinding, drying, classifying, and transportation in a single compact unit.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The LUM series features intelligent control systems for easier operation and maintenance, while producing products with high content of end-fines. The vertical design minimizes floor space requirements while maximizing processing efficiency.
Different materials present unique challenges in grinding operations, and air swept mills must be selected and configured according to specific application requirements. For mineral processing applications, the abrasiveness of the material dictates the wear resistance requirements of grinding elements. For chemical and pharmaceutical applications, the purity requirements may necessitate special materials of construction.
Moisture content is another critical factor. While air swept mills excel at handling materials with moderate moisture levels (typically up to 15%), extremely wet materials may require pre-drying or specialized mill configurations. Particle size distribution requirements also influence the selection of classifier type and operating parameters.
When compared to traditional ball mills or Raymond mills, air swept mills demonstrate superior performance in several key areas. The integrated classification system provides better control over product fineness, with narrower particle size distributions. The simultaneous grinding and drying capability reduces overall processing time and energy consumption. Additionally, the closed system design offers environmental benefits through reduced dust emissions.
However, conventional mills may still be preferred for certain applications, particularly when processing extremely hard materials or when very coarse grinding is required. The capital cost of advanced air swept mills is typically higher than basic grinding systems, though this is often offset by operational savings over the equipment lifetime.

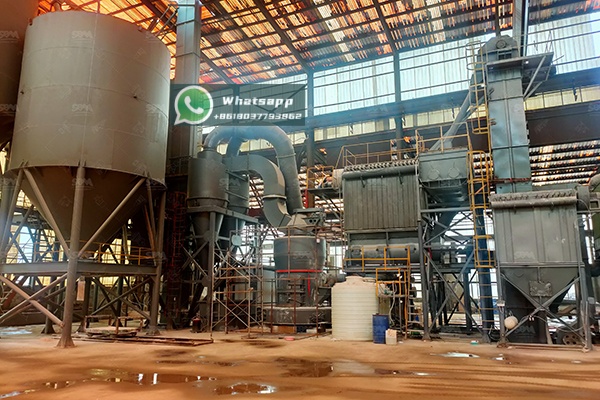

For applications requiring robust performance with multiple patent protections, Zenith’s MTW Trapezium Grinding Mill offers an excellent solution. Known for its compact structure, long service life, and eco-friendly design, this mill handles materials with maximum input sizes up to 50mm, producing final products as fine as 0.038mm.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) |
|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 |
To maximize the performance and lifespan of air swept mills, several operational practices should be followed. Regular inspection and maintenance of grinding elements and classifier components are essential for consistent product quality. Monitoring key parameters such as grinding pressure, air flow rate, and temperature helps optimize efficiency and prevent operational issues.
Proper feeding control is critical to maintaining stable operation. Both over-feeding and under-feeding can negatively impact grinding efficiency and product quality. Implementing automated control systems can help maintain optimal operating conditions and reduce operator intervention.
The evolution of air swept mill technology continues with several emerging trends. Digitalization and Industry 4.0 integration are enabling predictive maintenance and optimized operation through real-time data analysis. Advances in materials science are producing more wear-resistant components, extending service life in abrasive applications.
Energy efficiency remains a primary focus, with new designs incorporating improved airflow patterns and more efficient drive systems. There is also growing interest in modular designs that allow for easier capacity expansion and component replacement. As environmental regulations become more stringent, emission control features are being integrated directly into mill designs rather than being added as afterthoughts.
Air swept mills represent a sophisticated solution for modern powder processing requirements, offering efficiency, flexibility, and environmental benefits. The integration of grinding, drying, and classification in a single unit operation provides operational advantages that are difficult to match with conventional grinding systems.
Shanghai Zenith Machinery’s expertise in this field, demonstrated through products like the LUM Ultrafine Vertical Mill and MTW Trapezium Grinding Mill, highlights the continuous innovation occurring in grinding technology. As industrial requirements evolve toward finer powders, tighter specifications, and greater sustainability, air swept mills will continue to play a crucial role in meeting these challenges.
For operations seeking to optimize their powder processing, understanding the science behind air swept mills is the first step toward selecting the right technology for specific application needs. With proper selection, operation, and maintenance, these advanced grinding systems can deliver significant benefits in productivity, product quality, and overall operational efficiency.
