In the realm of industrial mineral processing and powder production, the quest for efficiency, precision, and energy conservation is perpetual. Among the various grinding technologies available, the Vertical Roller Mill (VRM) stands out as a sophisticated and highly efficient solution. This article delves into the scientific principles behind VRM grinding and classification, exploring how this technology has revolutionized material size reduction and why it represents a superior choice for modern industrial applications.

Fundamental Principles of Vertical Roller Mill Operation

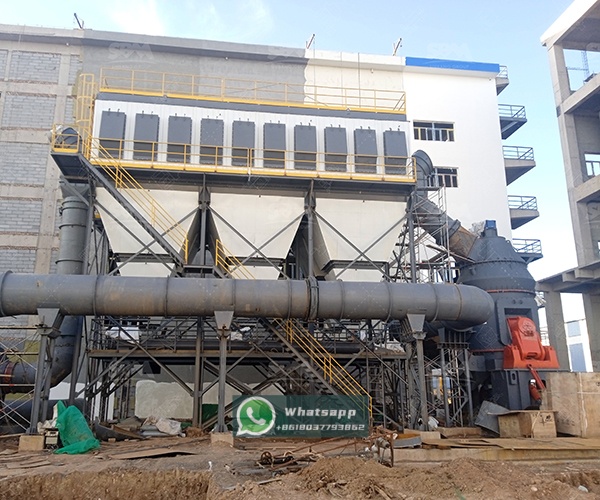

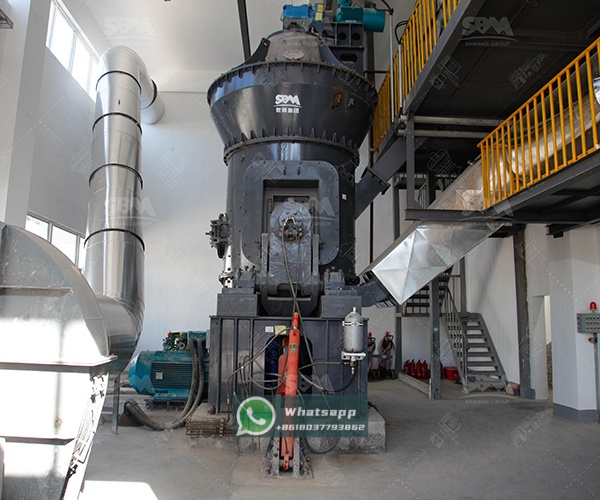

At its core, a Vertical Roller Mill is a complex system that integrates multiple unit operations into a single, compact machine. The primary components include a grinding table, rollers, a classifier, and a drive system. The material to be ground is fed onto the center of the rotating grinding table. Centrifugal force then pushes the material outward under the rollers, which exert substantial pressure, crushing and grinding the particles.

The ground material is subsequently transported by the airflow to an integrated classifier located at the top of the mill. This classifier is a critical component, as it determines the final product fineness. Coarse particles are rejected by the classifier and fall back onto the grinding table for further size reduction, while fine particles that meet the size criteria pass through and are collected as the final product. This closed-circuit grinding system ensures high efficiency and precise control over the product’s particle size distribution.

The Integrated Grinding and Classification Process

The synergy between grinding and classification is what gives the VRM its remarkable efficiency. Unlike traditional ball mills, where the grinding and classification are often separate processes, the VRM combines them seamlessly.

• Crushing & Grinding: The initial size reduction occurs by compression as the material passes between the rollers and the grinding table. The specific pressure applied can be adjusted to optimize for different material hardness and grindability.
• Drying: Hot gas (often from a kiln or a hot gas generator) is introduced into the mill, flowing through the bed of material on the table. This simultaneously dries the material, making it easier to grind and transport. This is a significant advantage for materials with high moisture content.
• Classification: The dynamic or static classifier acts as a precision gatekeeper. By adjusting the speed of the classifier rotor (in dynamic classifiers) or the airflow (in static systems), operators can achieve a very narrow and consistent particle size distribution, from coarse granules to ultra-fine powders.

Advantages Over Traditional Grinding Systems

The scientific design of VRMs confers several distinct advantages:

• Higher Grinding Efficiency: The material is ground by direct pressure on the particle bed, which is more energy-efficient than the impact and attrition methods dominant in ball mills. This can lead to energy savings of 30-50%.
• Reduced Footprint: The vertical design and integration of multiple functions result in a significantly smaller plant footprint compared to a ball mill circuit with similar capacity.
• Superior Product Quality: The immediate removal of fine particles by the internal classifier prevents over-grinding, resulting in a product with a steeper particle size distribution and less internal stress in the particles.
• Excellent Drying Capability: The ability to handle hot gas streams directly within the mill allows for the grinding of materials with moisture contents as high as 15-20% in a single pass.

Zenith’s Advanced Vertical Grinding Solutions

As a leader in the field of industrial grinding, Shanghai Zenith Machinery Co., Ltd. has developed a range of vertical mills that embody these scientific principles. Our engineers have focused on optimizing every aspect of the grinding and classification process to deliver maximum reliability and performance.

For operations requiring robust and high-capacity grinding of minerals, the LM Vertical Grinding Mill is an exemplary choice. It perfectly integrates five functions—crushing, grinding, powder selection, drying, and material conveying—into a single, cohesive unit. Its compact structure and high efficiency make it an ideal solution for large-scale production of fine powders.

For applications demanding the highest levels of fineness, Zenith offers the LUM Ultrafine Vertical Mill. This mill is engineered for producing superfine powders with high content of end-fines. It features advanced grinding roller technology and a highly efficient turbine classifier that ensures precise cuts and stable product quality, even at fineness levels up to D97 < 5μm.

Conclusion

The science behind Vertical Roller Mill grinding and classification represents a significant leap forward in powder processing technology. By intelligently integrating crushing, grinding, drying, and classification, VRMs offer unparalleled efficiency, flexibility, and control. As industries continue to seek more sustainable and cost-effective production methods, the adoption of advanced VRM technology, such as the LM and LUM series from Shanghai Zenith Machinery, is set to become the standard for modern mineral and powder processing plants worldwide.
