Indonesia’s foundry and metal casting industry has been experiencing steady growth, driven by its robust automotive, machinery, and construction sectors. A crucial component in the production of high-quality metal castings is the molding sand, and among various additives, zeolite has emerged as a valuable material for improving sand properties such as permeability, thermal stability, and reusability. To fully harness the benefits of zeolite in casting sand, it must be ground to a specific fineness—typically 200 mesh (74 microns)—for uniform blending and optimal performance. This article explores the application of zeolite in Indonesian casting sand and presents the ideal grinding solution from Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of ore grinding equipment.
Zeolite is a microporous aluminosilicate mineral with excellent ion-exchange, adsorption, and catalytic properties. In foundry molding sands, zeolite acts as a binder enhancer and a moisture regulator. When added in finely ground form (around 200 mesh), it can:
With Indonesia’s increasing focus on sustainable manufacturing, using natural zeolite as a green additive also helps reduce environmental impact by lowering the demand for new sand and minimizing waste. Consequently, the demand for high-performance zeolite grinding mills in Indonesia is on the rise.
Zeolite has a Mohs hardness of 3.5 to 5.5, making it relatively soft and easy to grind. However, the grinding process must be efficient and energy-saving to keep production costs low. For casting sand applications, a particle size of 200 mesh (D90 passing 74 microns) is generally required, with a narrow particle size distribution to ensure consistent sand performance. Additionally, the mill must be capable of handling feed sizes up to 30-50 mm and operating continuously with minimal downtime. In Indonesia’s tropical climate, moisture content control is also important, as zeolite can contain inherent moisture that needs to be dried during grinding or through an integrated drying system.
Shanghai Zenith Machinery offers a comprehensive range of grinding mills that can meet these demanding requirements. Among them, the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill stand out as excellent choices for producing 200-mesh zeolite powder for the Indonesian casting sand industry.

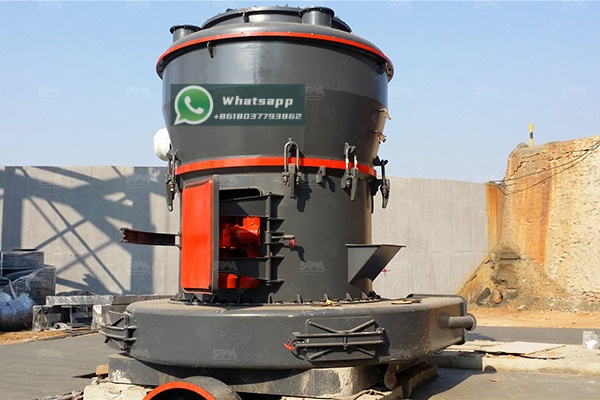

The MTW Trapezium Grinding Mill is a state-of-the-art equipment developed by Zenith, featuring multiple patented technologies. Its compact structure, long service life, and eco-friendly design make it particularly suitable for zeolite grinding in Indonesia. The mill uses a trapezium-shaped grinding roller and ring, which increases the grinding area and efficiency. The built-in classifier can precisely control the fineness of the final product, ensuring a consistent 200-mesh output. Furthermore, the MTW series is equipped with an advanced dust collection system and noise reduction measures, aligning with Indonesia’s environmental regulations.
For a typical 200-mesh zeolite application with a capacity requirement of 6 to 17 tons per hour, the MTW138Z model is highly recommended. Its technical specifications are listed below:
| Parameter | Value |
|---|---|
| Max. Feed Size (mm) | <35 |
| Final Product Size (mm) | 1.6 – 0.045 (200 mesh achievable) |
| Capacity (t/h) | 6 – 17 |
| Main Motor Power (kW) | 90 |
| Fan Motor Power (kW) | 110 |
| Number of Rollers | 4 |
| Overall Dimensions (L×W×H, m) | 9.5×5.5×7.2 |
With the MTW138Z, Indonesian foundry sand producers can achieve high-purity, fine zeolite powder at a competitive operating cost. The mill’s automatic lubrication and remote monitoring system further reduce maintenance requirements, making it an ideal investment for long-term operations.

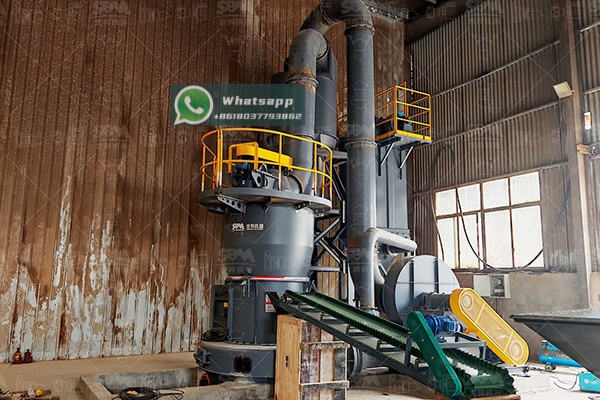

For projects requiring larger throughput, the LM Vertical Grinding Mill offers a compelling alternative. This mill integrates five functions—crushing, grinding, powder selection, drying, and material conveying—into one compact unit. Its vertical design reduces floor space and consumes less energy than traditional ball mills. The integrated drying system is particularly beneficial for processing zeolite with 5-10% moisture content, which is common in Indonesia’s humid climate.
The LM130K model can produce 10-28 t/h of zeolite powder at a fineness of 170-40 microns, easily covering the 200-mesh requirement. Its main motor power is 200 kW, offering an excellent power-to-output ratio. Below are the key specifications:
| Parameter | Value |
|---|---|
| Plate Diameter (mm) | 1300 |
| Capacity (t/h) | 10 – 28 |
| Output Fineness (μm) | 170 – 40 (200 mesh included) |
| Max Feed Size (mm) | <38 |
| Main Motor Power (kW) | 200 |
| Drying Capability | Integrated hot air system |
The LM vertical mill is also equipped with an intelligent control system that simplifies operation and maintenance, a crucial advantage for local operators. Many Indonesian cement and mineral processing plants have already adopted Zenith’s LM mills, demonstrating their reliability in tropical environments.
Shanghai Zenith Machinery Co., Ltd. has been a pioneer in the Chinese grinding equipment industry for decades. Our products are exported to over 170 countries, including Indonesia, where we have established a strong sales and service network. Key advantages for Indonesian customers include:
Furthermore, Zenith’s commitment to innovation means that our mills are constantly upgraded. For example, the MTW series now features a new three-dimensional seal structure that prevents dust leakage, improving workplace safety—an important consideration for Indonesian foundries aiming for international standards.
The demand for zeolite grinding mills capable of producing 200-mesh powder for casting sand is growing in Indonesia as the foundry industry seeks to improve quality and sustainability. Shanghai Zenith Machinery offers proven solutions with the MTW Trapezium Grinding Mill and LM Vertical Grinding Mill, both of which deliver consistent fineness, high capacity, and low operating costs. By investing in these advanced machines, Indonesian casting sand producers can enhance their competitiveness, reduce waste, and meet the stringent requirements of modern metal casting. For more detailed consultation or to schedule a trial, contact our Jakarta office or visit our website today.
