The United Arab Emirates is one of the most dynamic construction and coatings markets in the Middle East. From Dubai and Abu Dhabi to Sharjah and Ras Al Khaimah, demand for architectural paints, industrial coatings, powder coatings, and specialty decorative finishes continues to grow. Paint manufacturers and filler suppliers are increasingly looking for locally processed functional fillers that improve performance, reduce cost, and support sustainability. Zeolite is one such filler. It is a natural or synthetic hydrated aluminosilicate with a porous structure, high surface area, and useful ion-exchange properties. When ground to the right particle size, zeolite can serve as a functional paint filler that improves moisture control, matting, rheology, and corrosion resistance. For a UAE production line targeting 3-5 tph, the choice of grinding mill is critical. The mill must deliver consistent fineness, low contamination, high availability, and energy-efficient operation in a hot and dusty environment.
This article explains how to select a zeolite grinding mill for paint filler in the UAE at 3-5 tph. It reviews the role of zeolite in coatings, the key grinding requirements, and recommends two Shanghai Zenith machines: the MTW Trapezium Grinding Mill and the LUM Ultrafine Vertical Mill.
Zeolite is not just an inert bulk filler. Its aluminosilicate framework contains uniform pores that can adsorb moisture, odors, and certain volatile organic compounds. In water-based and solvent-based paints, this can help control drying, reduce blistering, and improve film integrity. Its ion-exchange capacity may also contribute to anti-corrosive performance when properly formulated. In addition, zeolite has moderate hardness and low density compared with some mineral fillers, which can influence tint strength, gloss, and viscosity.
Paint formulators often specify a particle size distribution rather than a single mesh size. For example, a 325-mesh zeolite filler may be used in general architectural coatings, while 800-mesh or 1250-mesh grades are selected for premium matting and specialty industrial coatings. The grinding mill must therefore provide adjustable fineness and a narrow particle size distribution. It must also avoid over-grinding, because excessive fines can increase oil absorption, thicken the paint unnecessarily, and raise raw material costs.
A successful UAE zeolite paint filler project depends on more than nominal capacity. The mill must match the feed material, target fineness, moisture content, and plant layout. The following requirements are especially important for a 3-5 tph operation.
Natural zeolite feed can arrive as lumps or crushed granules. A typical feed size for medium-speed and trapezium mills is below 30-40 mm. Zeolite hardness is usually around 3.5-4 Mohs, which is softer than quartz but still abrasive enough to require wear-resistant grinding elements. The mill should have durable rollers and ring segments, and easy access for maintenance. In the UAE, abrasive dust and high ambient temperatures can accelerate wear, so robust construction and proper lubrication are essential.
UAE zeolite may be stored or transported with moisture content between 5 and 12 percent, depending on source and handling. Moisture reduces grinding efficiency and can cause clogging in classifiers and bag filters. If the feed is consistently above 6-8 percent, a drying step or a mill with integrated drying is recommended. The LUM Ultrafine Vertical Mill can combine grinding, drying, classifying, and conveying in one system, which is useful for wetter feed. The MTW mill can be paired with a hot-air furnace or pre-drying system when necessary.
For paint filler, fineness is usually specified as passing 325 mesh, or 45 microns, or finer. Premium grades may require D97 between 10 and 30 microns. The MTW Trapezium Mill can produce final sizes from 1.6 mm down to 0.045 mm, which covers 325-mesh paint filler. The LUM Ultrafine Vertical Mill can produce D97 5-30 microns, suitable for ultrafine functional filler. Both mills use dynamic classifiers to adjust fineness without stopping the entire line. This flexibility is important because paint customers often change specifications between architectural, industrial, and specialty coatings.
A 3-5 tph line is a medium-scale operation. It is large enough to supply regional paint factories but small enough to remain flexible. The MTW110 and MTW110Z are well matched: their capacity range is 3-9 t/h and 3-10 t/h respectively. The LUM1525 has a capacity of 1.6-11.5 t/h, so it can deliver 3-5 tph while leaving room for future expansion. Energy consumption matters because UAE industrial electricity costs and sustainability targets are important. The MTW uses a main motor of 55 kW for the MTW110 and MTW110Z, while the LUM1525 uses 220-250 kW. The MTW is generally more economical for 325-mesh production, while the LUM is selected when ultrafine particle size is the priority.
Paint filler must be free of iron and other colored contaminants. The grinding zone should be lined or designed to minimize wear contamination. A closed-loop system with pulse-jet dust collectors is essential for worker safety and environmental compliance. The UAE has strict workplace and emissions standards, especially in industrial zones. Shanghai Zenith mills can be supplied with high-efficiency bag filters, cyclone separators, and negative-pressure conveying to control dust.
Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China, and has made great achievements in the field of ultra-fine powder grinding. The company is specialized in the research, development, and production of industrial powder grinding equipment and other related devices. Its main products include the MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. For UAE zeolite paint filler at 3-5 tph, two models are particularly suitable.

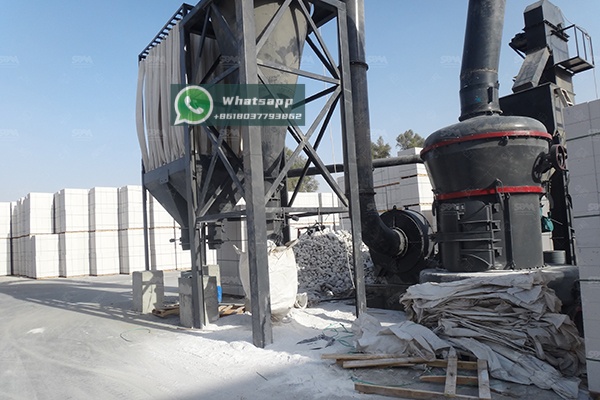

The MTW Trapezium Grinding Mill is a grinding mill with multiple patents, known for its compact structure, long service life, and eco-friendly design. It is suitable for processing materials with a maximum input size of 50 mm, producing a final product as fine as 0.038 mm in suitable configurations. For a UAE zeolite paint filler line at 3-5 tph, the MTW110Z is an excellent choice. It combines a capacity range of 3-10 t/h with a final size range of 1.6-0.045 mm, making it ideal for 325-mesh filler production. The mill uses bevel gear transmission, internal thin oil lubrication, curved blades, and a high-efficiency classifier. A pulse dust collector helps meet environmental requirements, while the compact layout reduces civil construction costs.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 | 55 |
| MTW110Z | <30 | 1.6-0.045 | 3-10 | 55 | 55 |
For a UAE paint filler producer, the MTW110Z offers a practical balance of capacity, fineness, and power consumption. It can be installed in a compact grinding workshop and integrated with feeding, conveying, dust collection, and packing equipment. When the feed moisture is moderate and the target is 325 mesh, the MTW is often the most cost-effective solution for 3-5 tph.

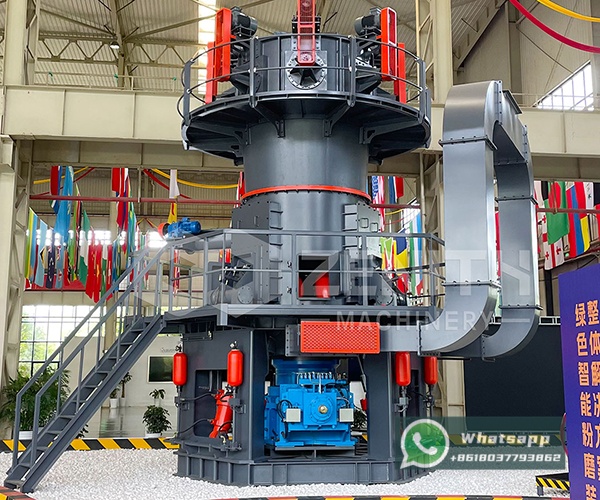

When the paint formulation requires ultrafine zeolite filler with D97 5-30 microns, the LUM Ultrafine Vertical Mill is the preferred solution. The LUM integrates grinding, drying, classifying, and transportation, all while occupying minimal space. It is designed to produce products with a high content of end-fines and features intelligent control for easier maintenance. The LUM1525 can handle 1.6-11.5 t/h, so it easily covers a 3-5 tph production target while allowing for future capacity increases. Its vertical design reduces floor space, and its internal classification system provides tight control over the final particle size distribution.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (microns) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
The LUM is especially valuable for premium architectural paints, high-performance industrial coatings, and specialty formulations where ultrafine zeolite improves matting, moisture management, and film uniformity. Although its installed power is higher than the MTW, it can replace multiple processing steps and reduce material handling. For UAE manufacturers targeting high-value paint filler grades, the LUM1525 is a strong long-term investment.
A complete 3-5 tph zeolite grinding plant should be designed as a closed-loop system. The following process flow is suitable for both MTW and LUM configurations.
Shanghai Zenith can provide project design, equipment manufacturing, installation guidance, commissioning, operator training, and spare parts support. For UAE projects, remote monitoring and local service partners can reduce downtime and ensure fast response. Because the climate is hot and dusty, the plant should include adequate ventilation, cooling for the main motor and gearbox, and routine cleaning of air filters. Wear parts such as rollers, ring segments, and classifier blades should be inspected regularly. With proper maintenance, MTW and LUM mills can operate continuously and deliver stable quality for many years.
Zeolite is a valuable functional filler for paints and coatings, and the UAE market offers strong opportunities for locally ground zeolite products. For a 3-5 tph paint filler line, the MTW110Z Trapezium Grinding Mill is an excellent choice for 325-mesh production with low energy consumption and a compact footprint. When ultrafine D97 5-30 micron filler is required, the LUM1525 Ultrafine Vertical Mill provides integrated grinding, drying, and classification with intelligent control. By selecting the right Shanghai Zenith mill, UAE producers can achieve consistent quality, efficient operation, and a competitive position in the coatings filler market.
