In the mineral processing industry, grinding circuits represent one of the most critical and energy-intensive stages. The selection between an open circuit and a closed circuit grinding system has profound implications for operational efficiency, product quality, and overall economics. This article provides a comprehensive comparison of these two fundamental circuit configurations, exploring their principles, advantages, disadvantages, and ideal applications.
An open circuit grinding system is the simpler of the two configurations. In this setup, the raw ore is fed into the grinding mill, and the discharged product is sent directly to the next processing stage without any classification or recirculation of coarse material.
The primary characteristic of open circuit grinding is that material passes through the mill only once. This simplicity offers several advantages, including lower initial capital cost, reduced system complexity, and easier operation and maintenance. However, this simplicity comes at a significant cost: the lack of classification means the mill discharge contains a wide range of particle sizes, including both properly ground fine particles and insufficiently ground coarse particles.
This results in lower overall efficiency and potential issues in downstream processes that require specific particle size distributions. Open circuits are typically employed in situations where the product size specification is not particularly stringent, or where the ore is easily ground to the desired fineness in a single pass.
Closed circuit grinding represents a more sophisticated approach that incorporates a classification step. In this configuration, the mill discharge is fed to a classifier (such as a cyclone or mechanical air separator), which separates the particles into two streams: the fine product that meets specifications, and coarse material that is returned to the mill for further grinding.
This recirculation of coarse material, often called the “circulating load,” is the defining feature of closed circuit grinding. The classifier ensures that only properly sized particles exit the circuit as final product, while oversized particles continue to circulate until they reach the target size. This approach offers significantly higher grinding efficiency, more consistent product quality, and better control over the final particle size distribution.
The trade-offs include higher capital costs, increased system complexity, and greater operational sophistication requirements. However, for most modern mineral processing applications where precise particle size control and high efficiency are paramount, closed circuit grinding has become the standard.
Closed circuit systems typically demonstrate superior grinding efficiency because they prevent overgrinding of fine particles. In open circuits, fine particles that have already reached the target size continue to occupy mill volume and consume energy, whereas closed circuits remove these particles promptly through classification.
Energy consumption per ton of final product is generally lower in closed circuits despite their higher complexity. This is because the energy is focused specifically on grinding the coarse particles that actually need reduction, rather than being wasted on material that has already reached specification.
The ability to control product size distribution is perhaps the most significant advantage of closed circuit grinding. The classifier acts as a quality control gate, ensuring consistent output that meets precise specifications. This consistency is crucial for downstream processes like flotation, leaching, or magnetic separation, where particle size significantly affects recovery rates.
Open circuits, by contrast, produce a much wider particle size distribution that may include both undersized and oversized particles relative to the target specification. This can lead to processing challenges and reduced overall plant performance.
While open circuits have lower initial capital costs due to their simplicity, closed circuits often provide better long-term economic returns through higher throughput, lower specific energy consumption, and improved metallurgical performance in downstream processes.
The operating costs of closed circuits are influenced by the circulating load, which typically ranges from 150% to 400% of the fresh feed rate. Proper management of this circulating load is essential for optimizing circuit performance.
The choice of grinding equipment is crucial regardless of circuit configuration. Different mill types offer distinct advantages for specific applications and ore characteristics. Shanghai Zenith Machinery Co., Ltd., as an excellent manufacturer of ore grinding equipment, offers comprehensive solutions for both open and closed circuit applications.

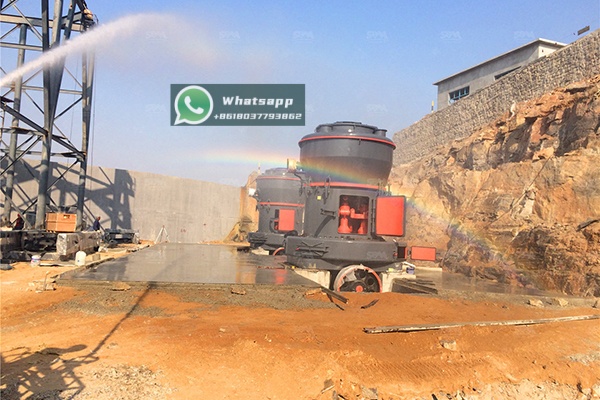

For operations requiring high efficiency and precise particle size control in closed circuit configurations, the MTW Trapezium Grinding Mill represents an outstanding choice. With its multiple patents, compact structure, and eco-friendly design, this mill delivers exceptional performance across various applications.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) |
|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 |

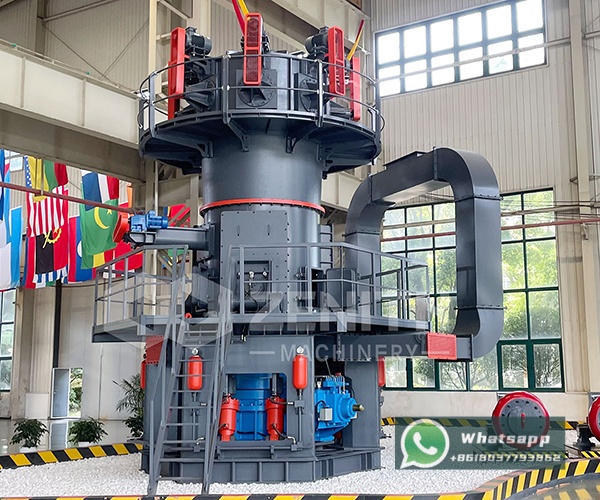

For applications demanding ultra-fine grinding capabilities, particularly in closed circuit systems with advanced air classification, the LUM Ultrafine Vertical Mill offers superior performance. This mill integrates grinding, drying, classifying, and transportation functions while occupying minimal space.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The choice between open and closed circuit grinding should be based on multiple factors:
The selection between open and closed circuit grinding represents a fundamental decision in mineral processing plant design. While open circuits offer simplicity and lower initial costs, closed circuits provide superior efficiency, product quality, and operational control for most modern applications.
Shanghai Zenith Machinery Co., Ltd., with its extensive experience and comprehensive product range, offers optimized grinding solutions for both circuit types. Their equipment, particularly the MTW Trapezium Grinding Mill for general applications and the LUM Ultrafine Vertical Mill for specialized fine grinding, incorporates advanced technologies that maximize performance while minimizing energy consumption and environmental impact.
Ultimately, the optimal grinding circuit configuration depends on specific operational requirements, ore characteristics, and economic objectives. A thorough technical and economic evaluation, considering both immediate and long-term factors, is essential for making the right choice between these two fundamental approaches to mineral grinding.
