In the mineral processing and powder production industries, grinding equipment represents a significant capital investment and ongoing operational expense. Among the various grinding technologies available, Raymond Mills and Vertical Mills have emerged as two of the most popular choices for medium to fine grinding applications. While both technologies effectively reduce particle size, they differ substantially in their mechanical design, operational principles, and consequently, their long-term maintenance requirements and associated costs. This comprehensive analysis examines the maintenance cost structures of both mill types, providing valuable insights for operations managers and procurement specialists seeking to optimize their grinding operations.

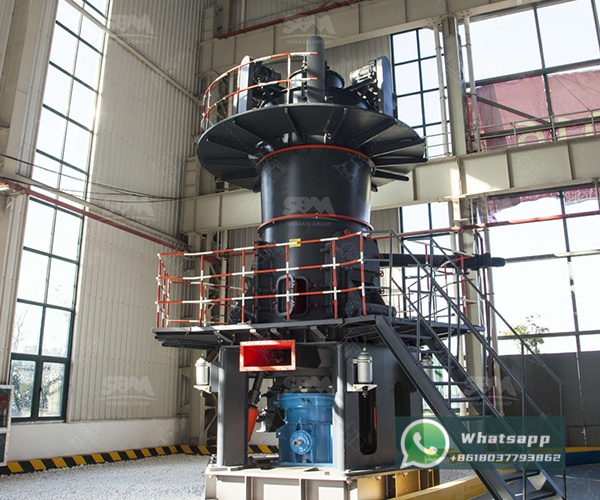

The Raymond Mill, also known as a pendulum roller mill, operates on the principle of spring-loaded grinding rollers that rotate against a stationary grinding ring. Material is fed into the grinding zone and is pulverized by the rolling action of the rollers. The ground material is then carried by the air stream to the classifier, where oversized particles are separated and returned for further grinding.

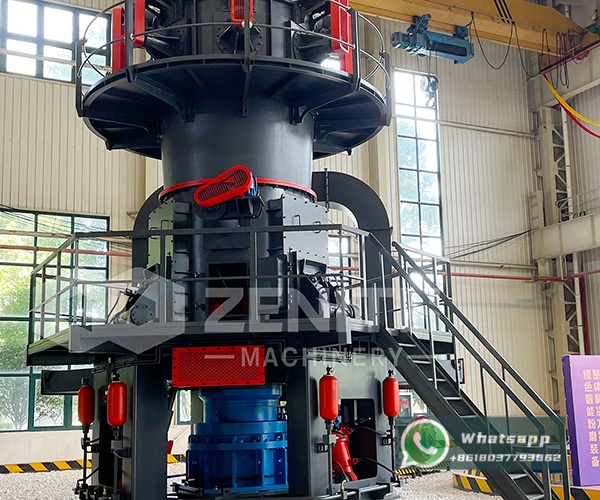

In contrast, the Vertical Mill employs a fundamentally different approach. Material is fed onto a rotating grinding table where it is ground under pressure by stationary grinding rollers. The ground material is transported by gas flow to a dynamic classifier located at the top of the mill. This integrated design combines multiple processes—crushing, grinding, drying, classification, and transportation—within a single compact unit.
These fundamental design differences create distinct maintenance profiles. Raymond Mills feature multiple moving parts in the grinding zone—typically 3 to 6 oscillating rollers—while Vertical Mills utilize a simpler grinding mechanism with fewer but larger grinding components. This distinction directly influences wear patterns, component replacement frequency, and maintenance accessibility.
Raymond Mills contain several critical wear components that require regular inspection and replacement:
The cumulative replacement cost for these components can represent 40-60% of the mill’s original purchase price over a 5-year operational period when processing moderately abrasive materials.
Vertical Mills feature a different wear part configuration:
The wear part replacement costs for Vertical Mills generally represent 25-40% of the original equipment cost over a comparable 5-year period, representing significant savings compared to Raymond Mills.
Maintenance labor constitutes a substantial portion of total ownership costs. Raymond Mills typically require more frequent maintenance interventions with shorter service intervals. The oscillating roller mechanism demands regular adjustment of spring tension and roller clearances to maintain grinding efficiency. Additionally, the multiple smaller wear parts necessitate more frequent replacements, each requiring partial disassembly of the mill housing.
Vertical Mills benefit from longer maintenance intervals and more straightforward component access. Many critical wear components can be inspected and replaced through dedicated access doors without complete mill disassembly. The grinding table and rollers, while heavier and requiring more substantial lifting equipment for replacement, offer significantly extended service life between major overhauls.
Downtime represents a critical cost factor beyond direct maintenance expenses. Raymond Mills typically experience 15-25% more annual downtime for maintenance activities compared to Vertical Mills of equivalent capacity. This productivity loss can substantially impact overall operational economics, particularly in continuous process operations.
Energy costs represent a significant portion of total grinding expenses. Vertical Mills demonstrate clear advantages in energy efficiency, typically consuming 15-30% less power than Raymond Mills for equivalent throughput. This efficiency stems from several factors:
For operations running multiple shifts, these energy savings can offset the typically higher initial capital cost of Vertical Mills within 1-3 years of operation.
Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore grinding equipment in China, has made great achievements in the field of ultra-fine powder grinding. Our specialized research, development, and production of industrial powder grinding equipment has resulted in technologically advanced solutions that address the maintenance challenges discussed in this analysis.
For operations seeking the operational benefits of vertical grinding technology with minimized maintenance requirements, we recommend our LM Vertical Grinding Mill series. This mill integrates five functions—crushing, grinding, powder selection, drying, and material conveying—into a single machine, offering small occupational area, fine final powder, and eco-friendly production.
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
For applications requiring ultra-fine grinding capabilities with minimal maintenance intervention, our LUM Ultrafine Vertical Mill represents the pinnacle of grinding technology. This advanced mill integrates grinding, drying, classifying, and transportation while occupying minimal space, featuring intelligent control for easier maintenance and producing products with high content of end-fines.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
When evaluating grinding equipment, considering only the initial purchase price provides an incomplete economic picture. A comprehensive Total Cost of Ownership (TCO) analysis must include:
Our analysis of multiple installations reveals that while Vertical Mills typically command a 15-30% higher initial purchase price compared to equivalent capacity Raymond Mills, their TCO over a 7-year operational period is generally 20-35% lower. This economic advantage stems primarily from reduced energy consumption, longer wear part service life, and minimized production interruptions.
The optimal mill selection depends significantly on specific application requirements:
Raymond Mills remain preferable for:
Vertical Mills offer superior economics for:
The maintenance cost comparison between Raymond Mills and Vertical Mills reveals a clear long-term economic advantage for Vertical Mill technology. While Raymond Mills offer lower initial investment and remain suitable for specific applications, Vertical Mills provide substantially reduced operating costs through energy efficiency, extended component life, and minimized maintenance downtime.
Shanghai Zenith Machinery’s advanced Vertical Mill designs, including the LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill, incorporate technological innovations that further enhance these advantages. Our integrated approach to grinding system design optimizes not only equipment performance but also long-term operational economics, delivering superior value throughout the equipment lifecycle.
Operations managers considering new grinding equipment or upgrades to existing systems should carefully evaluate both initial and long-term cost factors. In most medium to large-scale applications, the superior maintenance profile of Vertical Mills translates to significantly lower total cost of ownership, making them the economically preferred choice for modern mineral processing and powder production facilities.
