In the field of industrial mineral processing and powder production, grinding technology plays a pivotal role in determining product quality, energy efficiency, and operational costs. Two prominent grinding mechanisms that have evolved significantly are pendulum grinding and roller grinding. Understanding the fundamental differences, operational principles, and application suitability of these mechanisms is crucial for selecting the optimal equipment for specific processing requirements.

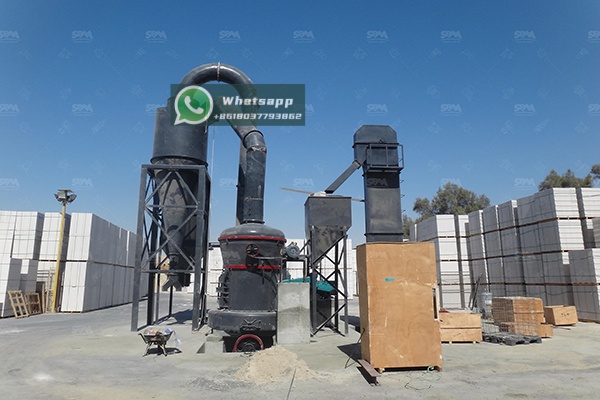

The pendulum grinding mechanism, historically embodied in the Raymond Mill design, operates on the principle of centrifugal force-driven grinding rolls swinging outward to press against a stationary grinding ring. The core components include:
As the main shaft rotates, the grinding rollers swing outward due to centrifugal force, creating compression between the rollers and grinding ring. Feed material introduced through a central feed pipe falls onto the grinding ring and is pulverized as the rollers travel over the material bed. The ground material is then transported by air to the integrated classifier for size separation.
Roller grinding mechanisms, particularly in vertical roller mills, employ a fundamentally different approach where grinding rollers directly compress material against a rotating grinding table. Key elements include:
Material is fed onto the center of the rotating grinding table and is transported outward by centrifugal force. As the material passes under the grinding rollers, compression and shear forces reduce the particle size. Ground material is then transported by gas flow to the classifier for separation, with oversize particles returning to the grinding bed.
Roller grinding systems generally demonstrate superior energy efficiency compared to pendulum mechanisms. The direct application of grinding force through hydraulic systems in roller mills minimizes energy losses associated with mechanical transmission systems. Vertical roller mills can achieve specific energy consumption reductions of 15-30% compared to traditional pendulum mills, particularly in applications requiring medium to fine grinding.
Pendulum mills, while improved in modern designs, inherently face efficiency limitations due to the mechanical complexity of the pendulum system and the energy required to maintain centrifugal forces. However, they remain competitive in specific applications requiring very fine classification or when processing abrasive materials.
Modern pendulum mills equipped with advanced classifiers can achieve product fineness ranging from 150 mesh to 325 mesh (approximately 100 to 45 microns), with some high-performance models reaching 600 mesh (20 microns). The integral classifier design provides good control over product size distribution.
Roller grinding systems, particularly vertical mills with external dynamic classifiers, offer superior flexibility in controlling particle size distribution. They can produce products ranging from coarse (several millimeters) to very fine (below 20 microns) with steep particle size distributions. The external classifier allows for real-time adjustment of cut points without interrupting the grinding process.
Roller grinding systems excel in operational flexibility, capable of handling variations in feed material characteristics and production rate requirements. The independent control of grinding pressure, table speed, and classifier settings enables quick adjustments to maintain product quality despite feed variations.
Pendulum mills offer less operational flexibility due to the interdependent nature of their operating parameters. Changes in production rate or product fineness often require adjustments to multiple parameters, including grinding ring and roller configuration, classifier speed, and fan operation.
For processing hard and highly abrasive materials, pendulum mills often demonstrate advantages in wear part life and maintenance costs. The swinging motion of the grinding rollers creates varying contact patterns that distribute wear more evenly across grinding surfaces. Additionally, the simpler mechanical design facilitates quicker wear part replacement.
Roller mills processing abrasive materials may experience concentrated wear patterns on grinding tables and rollers, requiring more frequent maintenance or the application of specialized wear protection materials.
Vertical roller mills incorporating hot gas systems provide integrated drying capabilities that can handle feed materials with moisture contents up to 15-20%. The grinding and drying processes occur simultaneously within the same unit, making these systems ideal for raw materials with significant moisture content.
Pendulum mills have limited integrated drying capability and typically require pre-drying for materials with moisture content exceeding 5-8%. The airflow patterns in pendulum mills are primarily designed for material transport rather than efficient heat transfer.
Shanghai Zenith Machinery Co., Ltd., as an excellent manufacturer of ore grinding equipment, has developed comprehensive solutions that incorporate the advantages of both grinding mechanisms. Our product portfolio includes advanced pendulum-type mills and sophisticated vertical roller mills designed for specific application requirements.

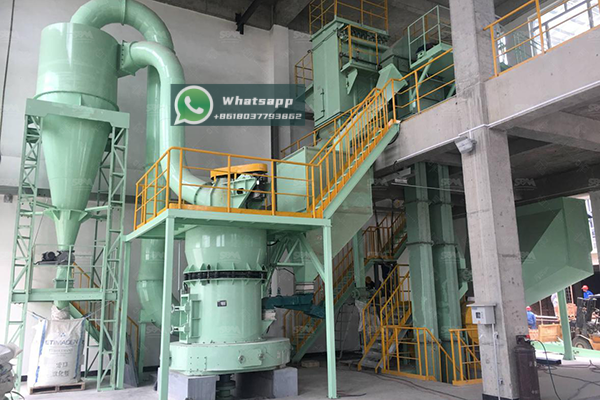

The MTW Trapezium Grinding Mill represents the evolution of pendulum grinding technology, incorporating multiple patents for improved efficiency, reliability, and environmental performance. This mill is particularly suitable for processing materials with maximum input size of 50mm, producing final products as fine as 0.038mm.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 | 55 |
| MTW110Z | <30 | 1.6-0.045 | 3-10 | 55 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 | 110 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 | 200 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 | 315 |
The MTW series features bevel gear overall transmission, internal thin oil lubrication system, and arc air channel design, representing significant advancements over traditional pendulum mills.
For applications requiring integrated grinding, drying, classification, and conveying in a single unit, Zenith’s LM Vertical Grinding Mill offers an optimal solution. This mill integrates five functions into a compact design with minimal footprint requirements.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
The LM Vertical Grinding Mill is particularly advantageous for operations requiring simultaneous grinding and drying, with capabilities to handle feed moisture up to 15% without requiring pre-drying equipment.
The evolution of grinding technology continues to focus on energy efficiency, digitalization, and sustainability. Both pendulum and roller grinding systems are incorporating:
Shanghai Zenith Machinery remains at the forefront of these developments, continuously refining both pendulum and roller grinding technologies to meet evolving industry requirements.
The choice between pendulum and roller grinding mechanisms depends on multiple factors including material characteristics, production requirements, energy costs, and capital constraints. Pendulum grinding systems, exemplified by Zenith’s MTW Trapezium Grinding Mill, offer advantages in specific applications requiring medium-fine grinding with lower capital investment. Roller grinding systems, particularly vertical mills like Zenith’s LM series, provide superior energy efficiency, operational flexibility, and integrated processing capabilities for high-capacity operations.
Understanding the fundamental operating principles, comparative advantages, and application suitability of each mechanism enables informed equipment selection. With continuous technological advancements from manufacturers like Shanghai Zenith Machinery, both grinding mechanisms continue to evolve, offering improved performance, reliability, and sustainability for the mineral processing industry.
